Description
✔ 60/80/100W Selectable | 4000K/5000K/6000K Selectable | Class I Division 2 | IP66 & NEMA 4X

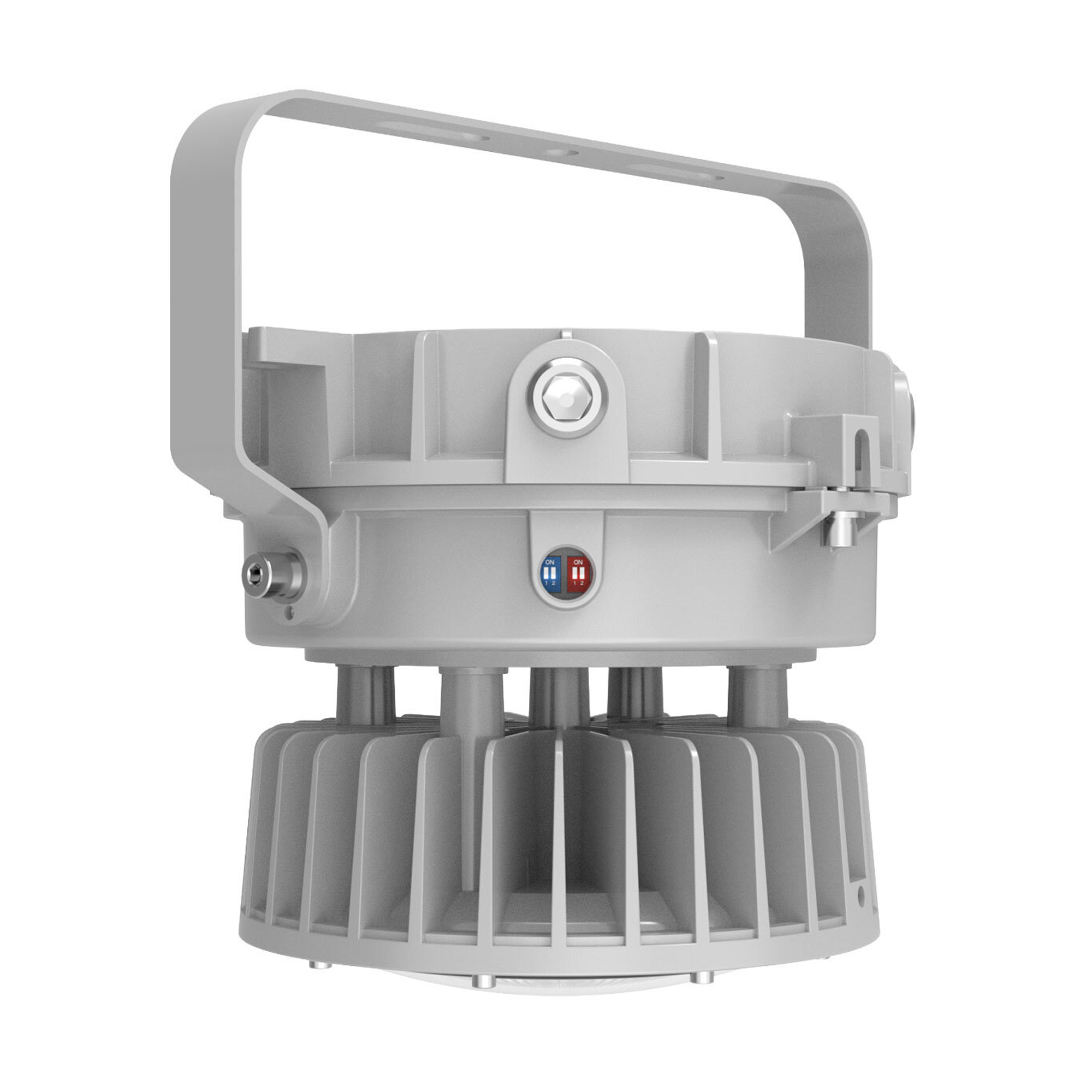

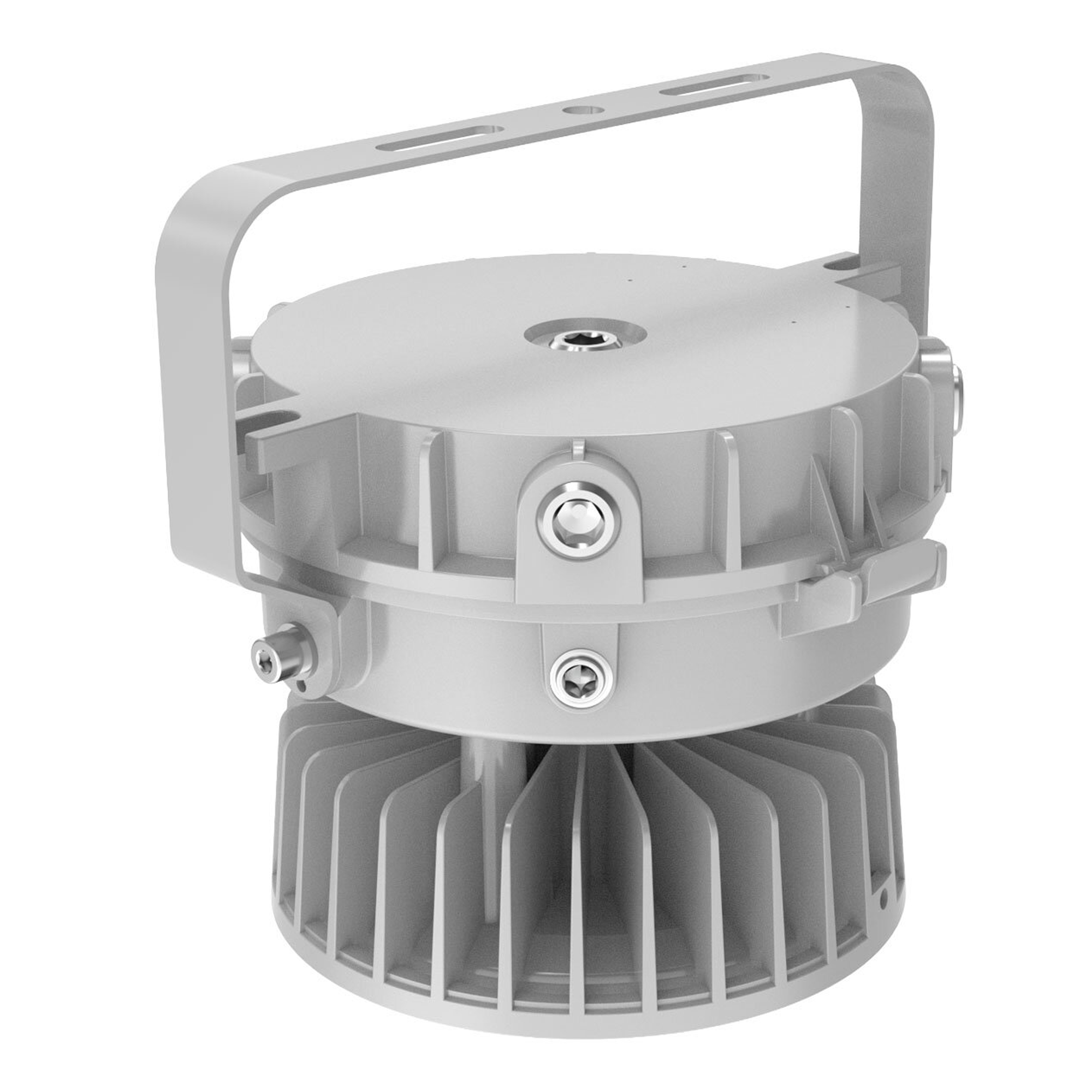

100W Selectable Explosion-Proof LED High Bay – Q1 Series
The TANLITE Q1 Series explosion-proof LED high bay delivers up to 14,500 lumens for hazardous industrial locations. Selectable wattage and color temperature allow contractors to configure output and light appearance on site, reducing the need to stock multiple fixtures.
- 60W / 80W / 100W field-selectable power

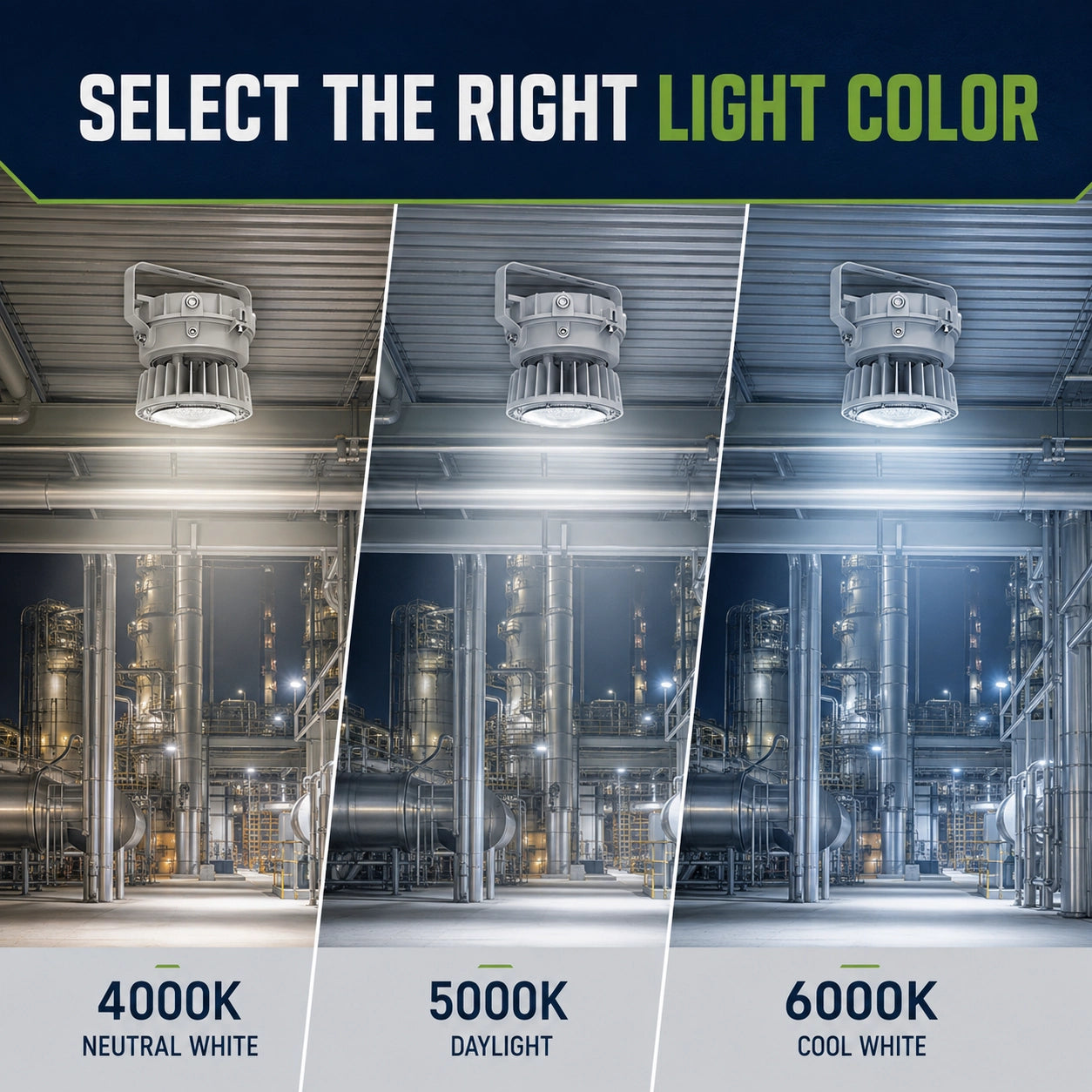

- 4000K / 5000K / 6000K selectable color temperature
- Up to 14,500 lumens at 145 lm/W
- 120–277VAC universal input

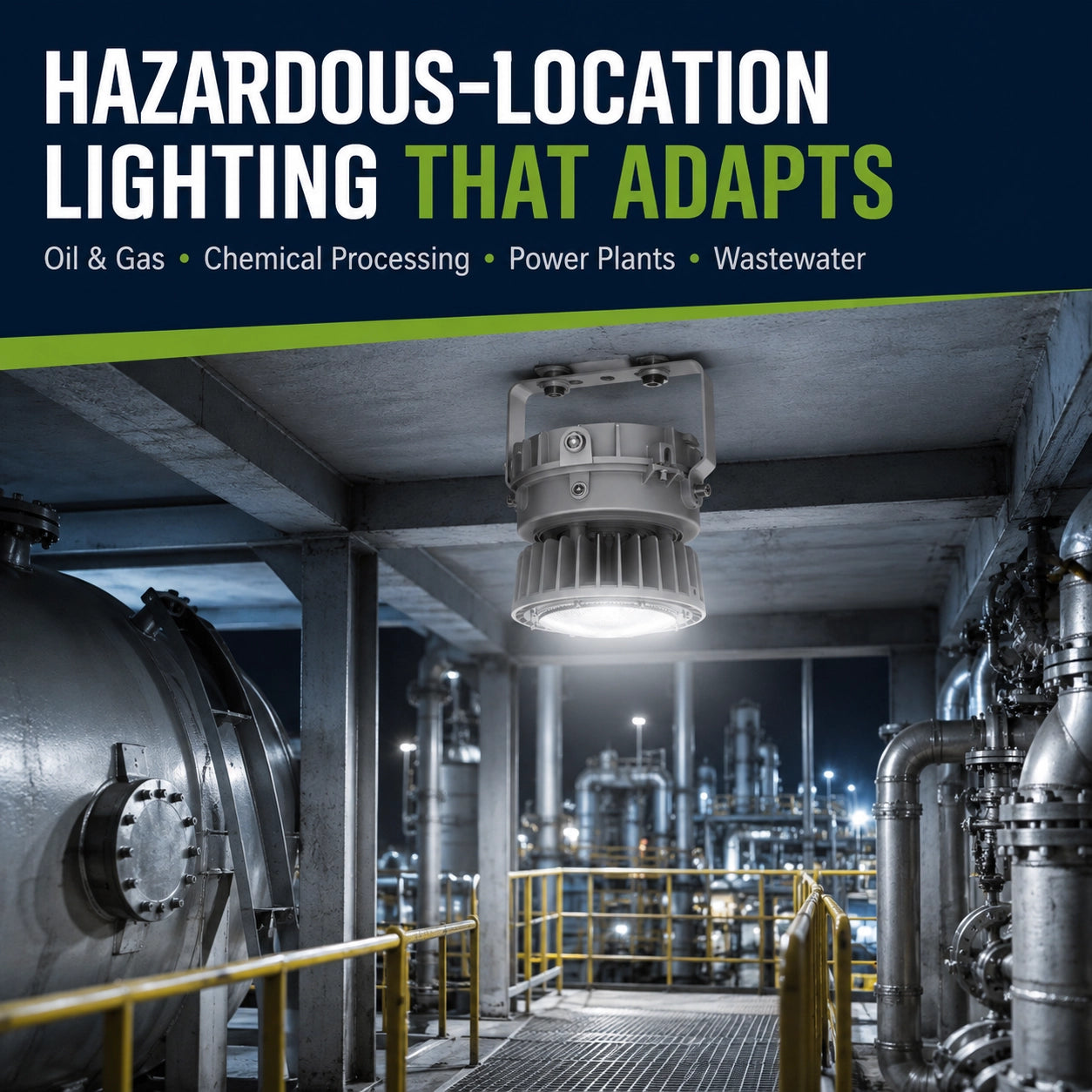

Designed for Hazardous Industrial Locations
- Oil, gas and petrochemical facilities
- Chemical processing plants
- Power plants and heavy industrial storage
- Paper mills and wastewater treatment facilities
- Food and alcohol processing areas
- Marine and offshore environments

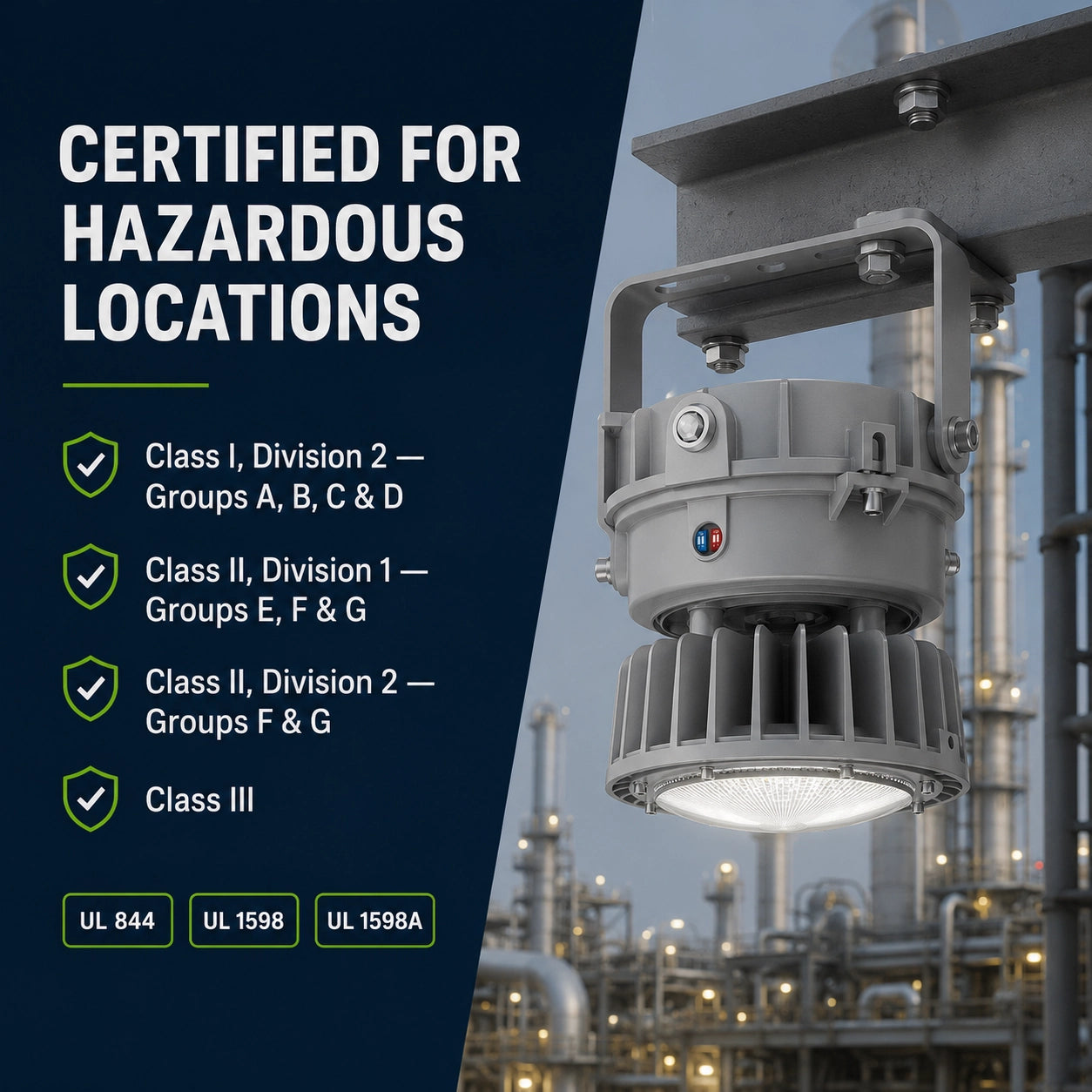

Hazardous-Location Rated Construction
Engineered for locations where flammable vapors, dust, moisture, corrosion and vibration may be present. The fixture is suitable for the following classified locations:
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 1, Groups E, F and G
- Class II, Division 2, Groups F and G
- Class III hazardous locations
- UL 844, UL 1598 and UL 1598A

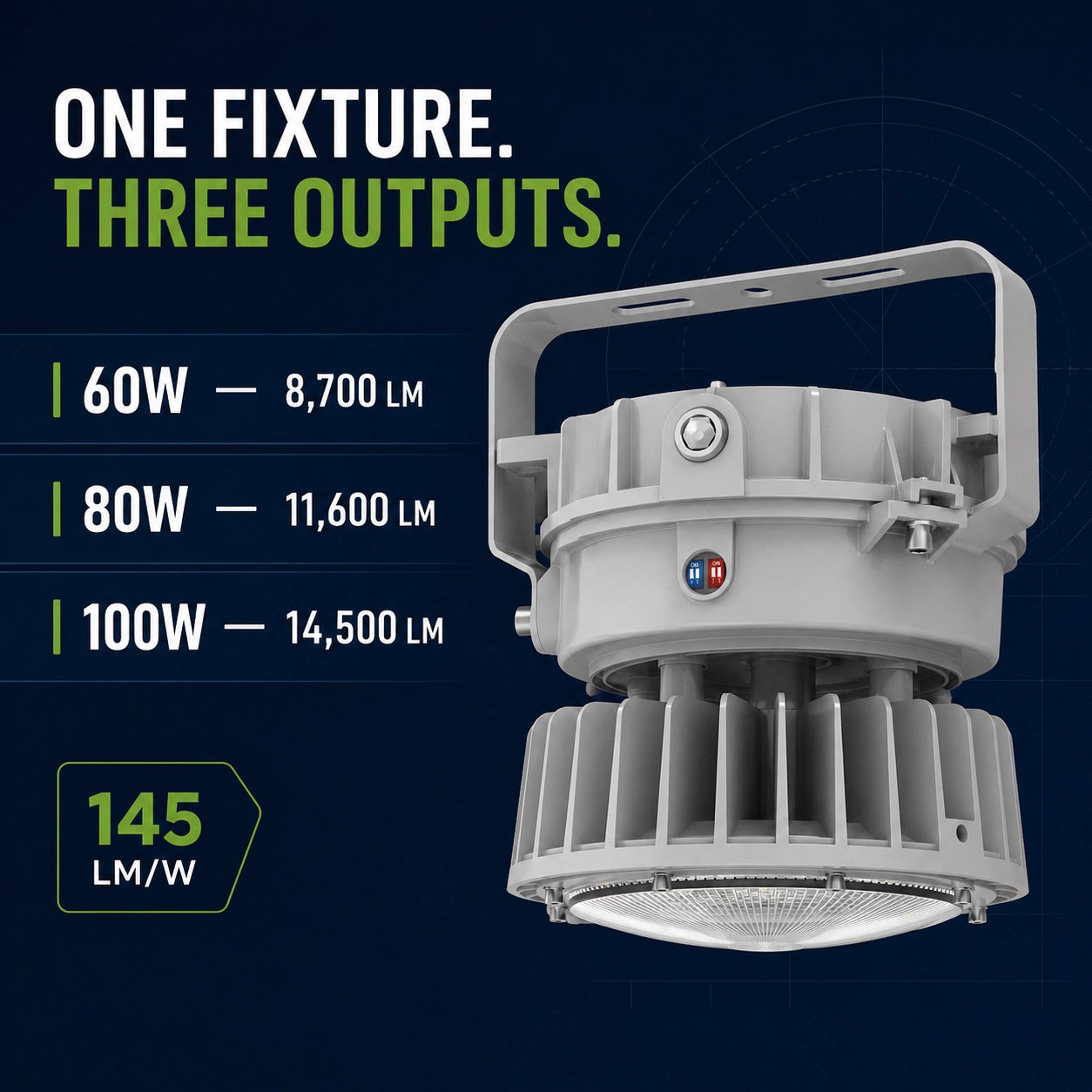

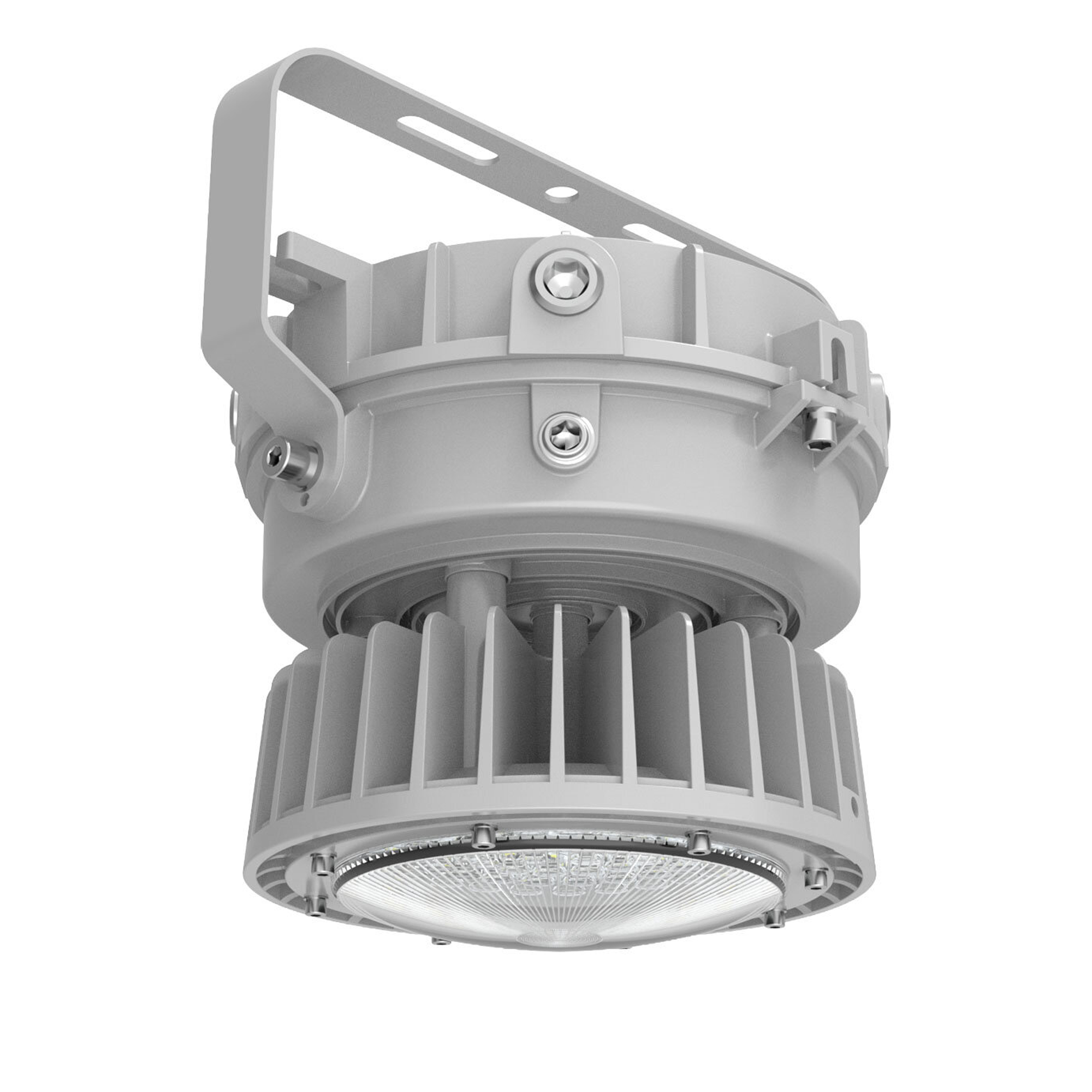

Selectable Output for Flexible Projects
One fixture covers three wattages and three color temperatures, helping simplify project planning, field adjustments and replacement inventory.
- 100W: up to 14,500 lumens
- 80W: up to 11,600 lumens
- 60W: up to 8,700 lumens
- CRI >80 for clear industrial visibility
- 120° wide beam for broad, uniform coverage

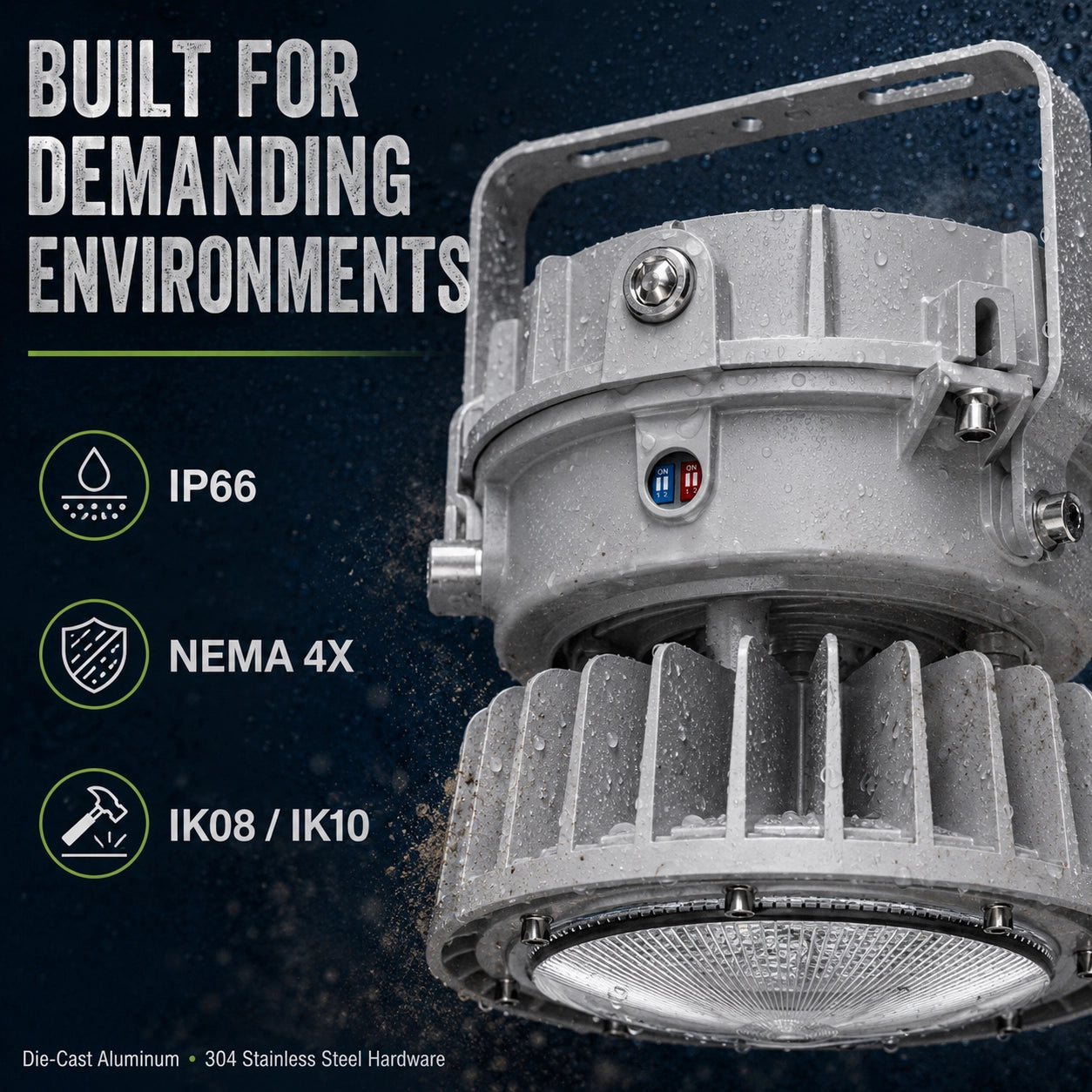

Built for Demanding Environments
- Ingress Protection: IP66
- Enclosure: NEMA 4X
- Impact Protection: IK08 without wire guard; IK10 with wire guard
- Housing: Die-cast aluminum
- Lens: Clear convex glass
- Hardware: 304 stainless steel
- Rated Life: Up to 50,000 hours

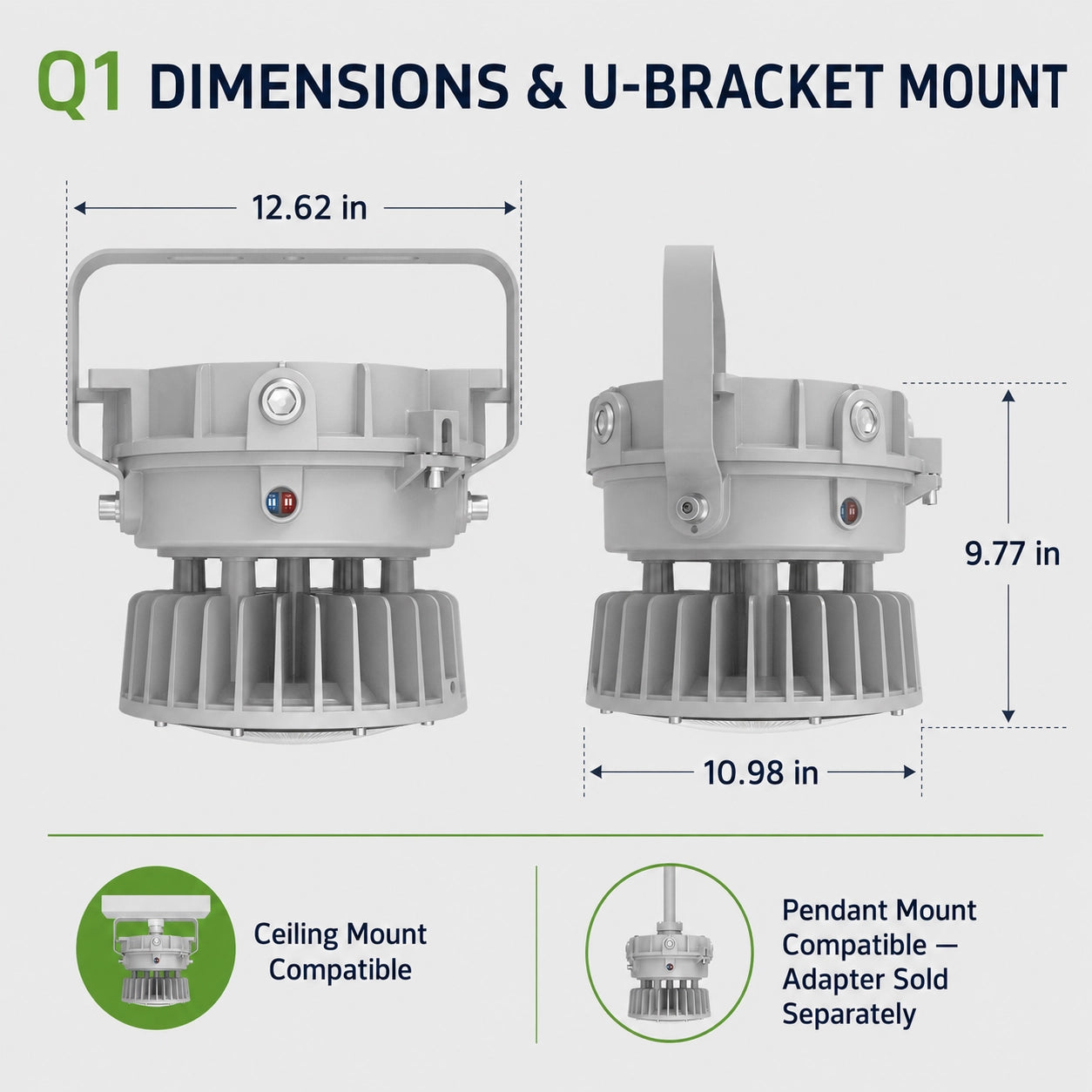

U-Bracket Mount with Ceiling & Pendant Compatibility
The included U-bracket supports secure mounting and flexible aiming. The fixture can also be configured for ceiling-mount or pendant-mount installations. Pendant installation hardware or adapters may be required separately based on the project.

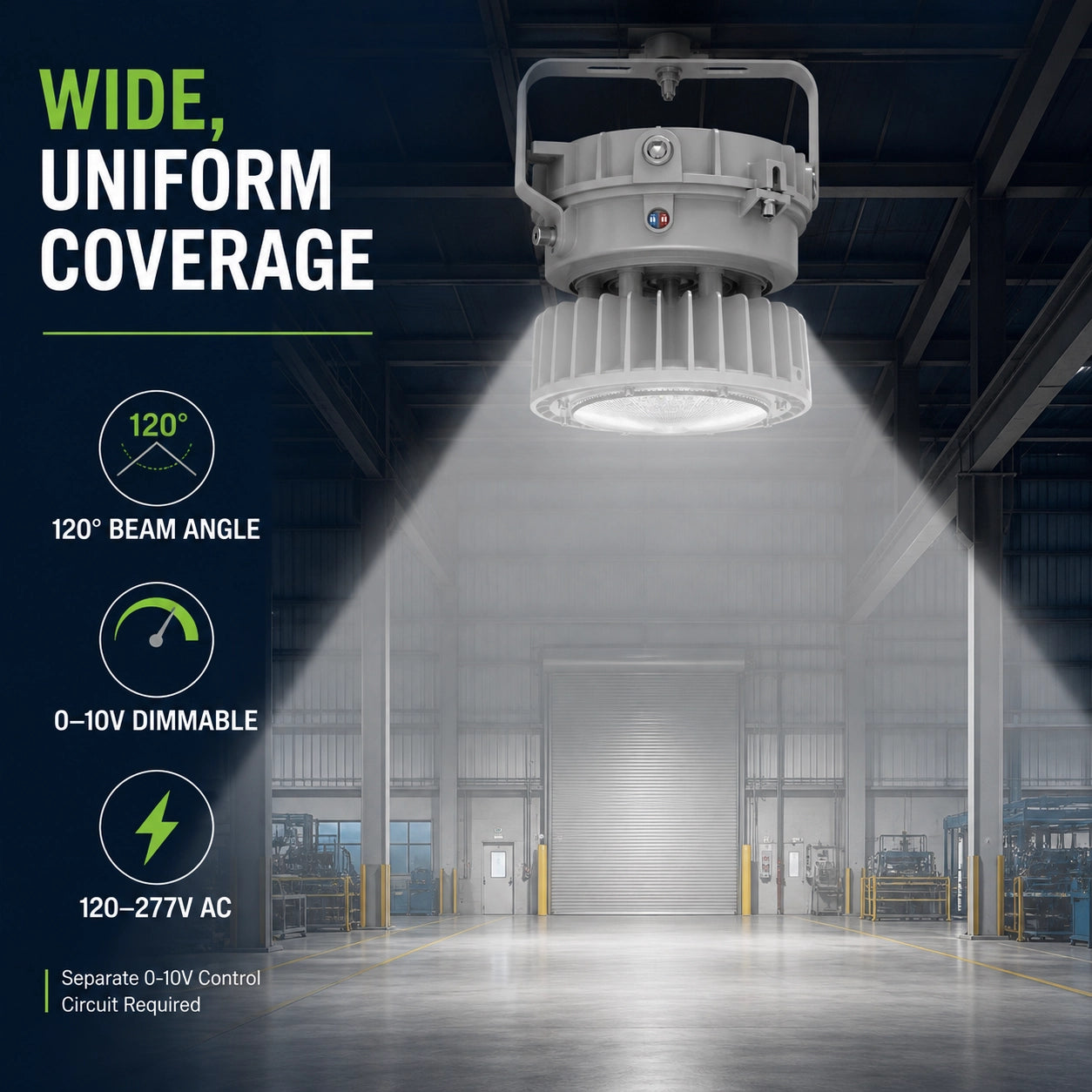

0–10V Dimmable Lighting Control
The integrated driver includes 0–10V dimming control leads for compatible dimming systems. A separate 0–10V control circuit is required.
Key Features
- Selectable Wattage: 60W / 80W / 100W
- Selectable CCT: 4000K / 5000K / 6000K
- Maximum Output: 14,500 lumens
- Efficiency: 145 lumens per watt
- Voltage: 120–277VAC, 50/60Hz
- Dimming: 0–10V
- Beam Angle: 120°
- Warranty: 5-year limited warranty
Specifications
| Product Series | Q1 Series |
| Selectable Wattage | 60W / 80W / 100W |
| Lumen Output | 8,700 / 11,600 / 14,500 lm |
| Selectable CCT | 4000K / 5000K / 6000K |
| Input Voltage | 120–277VAC, 50/60Hz |
| Efficacy | 145 lm/W |
| CRI | >80 |
| Beam Angle | 120° |
| Dimming | 0–10V |
| Protection | IP66, NEMA 4X, IK08 / IK10 |
| Mounting | U-Bracket; supports ceiling and pendant configurations |
| Certifications | UL 844, UL 1598, UL 1598A |
| Warranty | 5 Years |
Need Explosion-Proof Lighting for a Project?
Contact TANLITE for hazardous-location product selection, bulk pricing and commercial project support. Please provide the location classification, voltage, mounting method and fixture quantity.
