Description
10W LED Explosion Proof Emergency Light
C1D1 / C1D2 | 180-Minute Backup | Dual Adjustable Heads
Built for hazardous locations, this industrial-grade explosion proof emergency light features a premium PHENIX emergency driver, up to 180 minutes of battery backup, dual adjustable spot heads, and UL844 / UL924 certifications for reliable emergency illumination in demanding environments.
Key Product Highlights
- 10W hazardous location emergency lighting solution
- 5000K daylight output for clear visibility

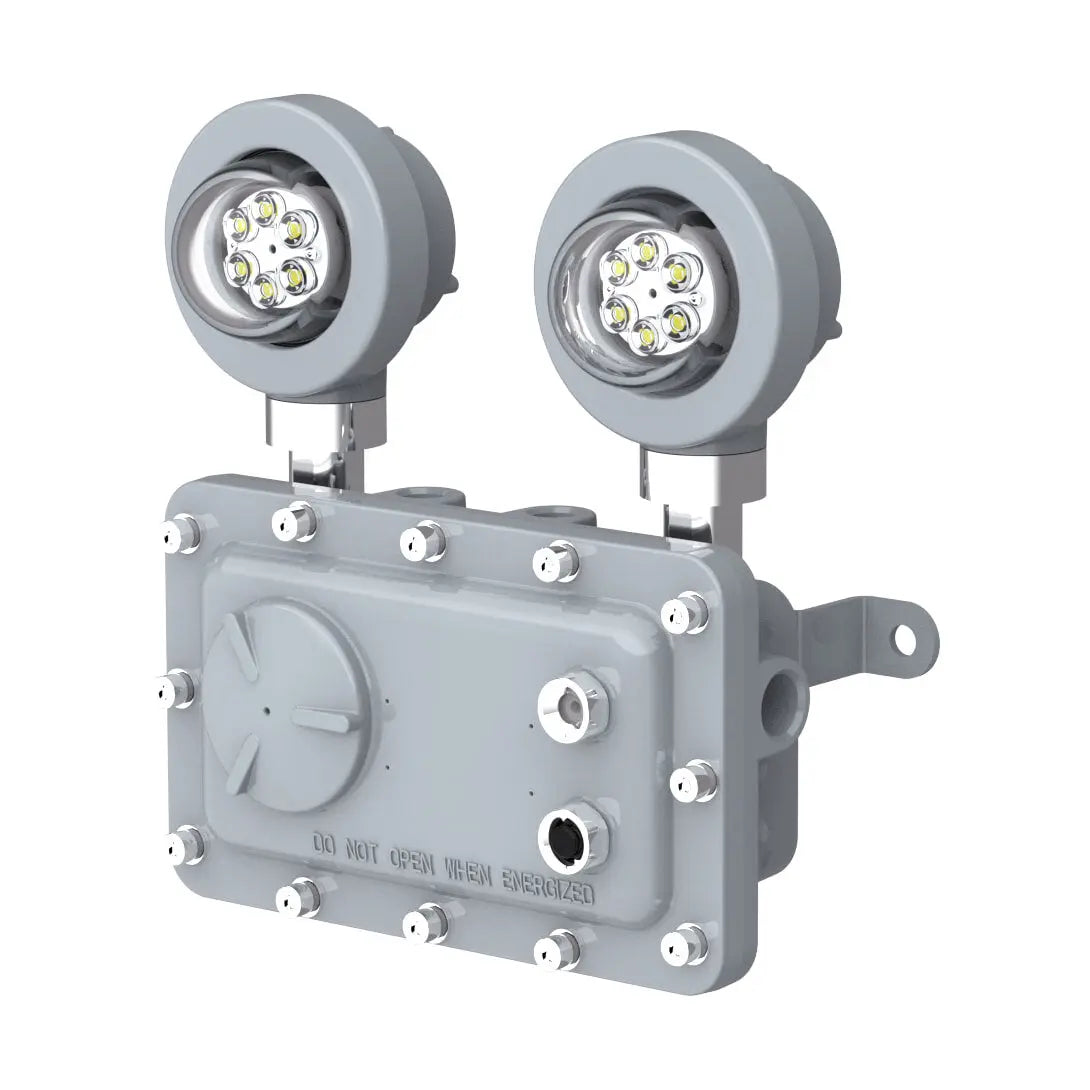

- Dual adjustable LED heads for targeted coverage
- Available 90° / 120° beam optics

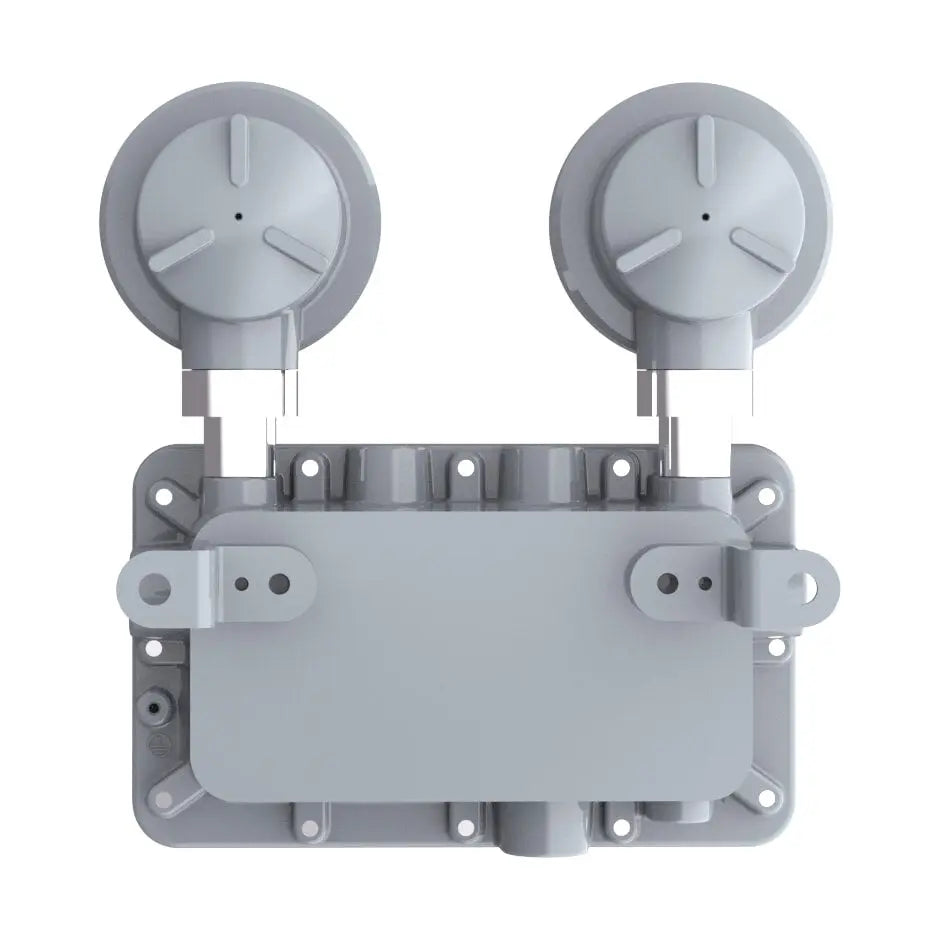

- Wall mount with 3/4" NPT conduit hubs

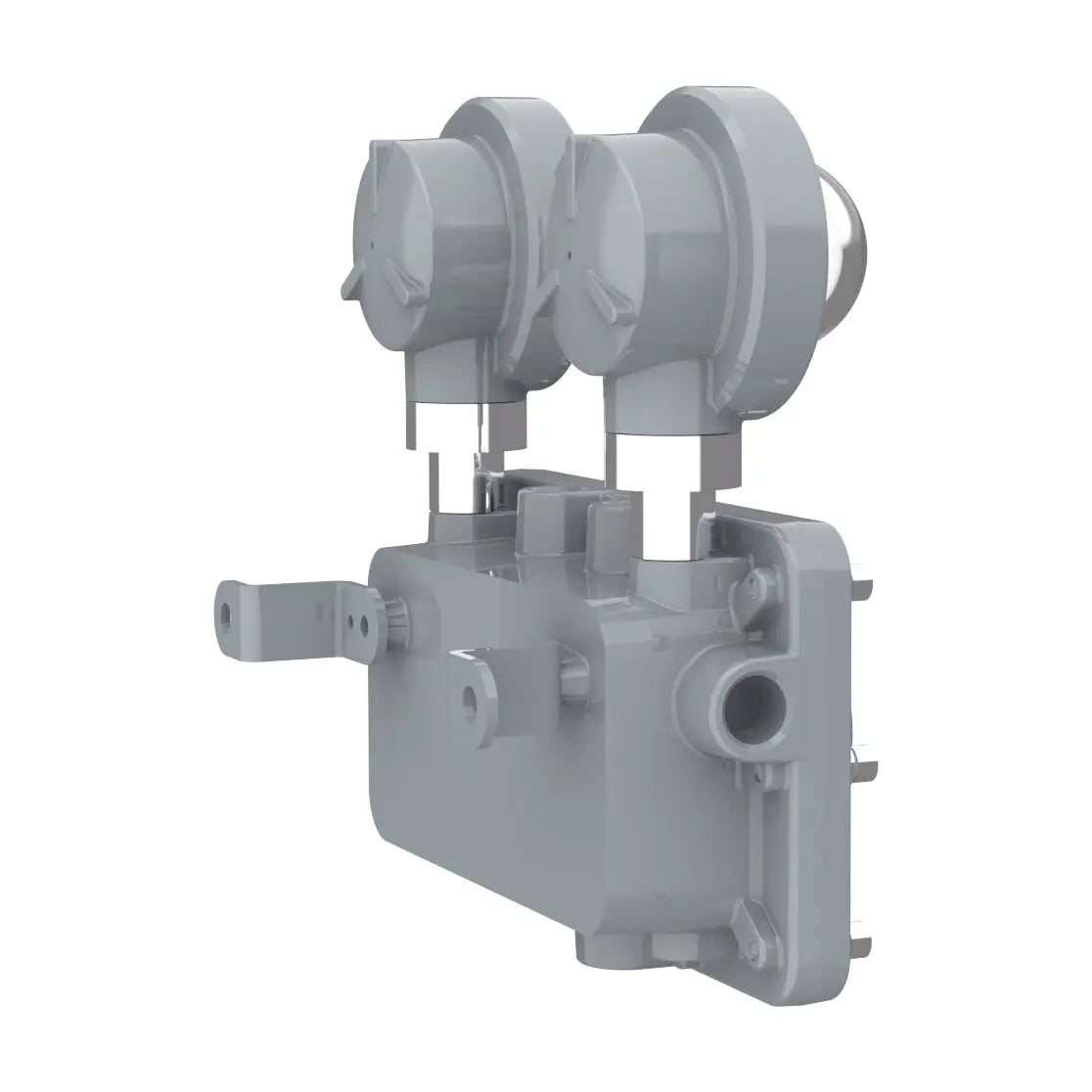

- Die-cast aluminum housing with stainless steel hardware
- Suitable for wet, corrosive, and heavy-duty industrial environments
Reliable Emergency Lighting for Hazardous Locations
Designed for oil and gas facilities, chemical plants, marine environments, and other hazardous areas, this explosion proof emergency light combines certified protection, durable construction, and extended emergency operation to help maintain safety during power loss.

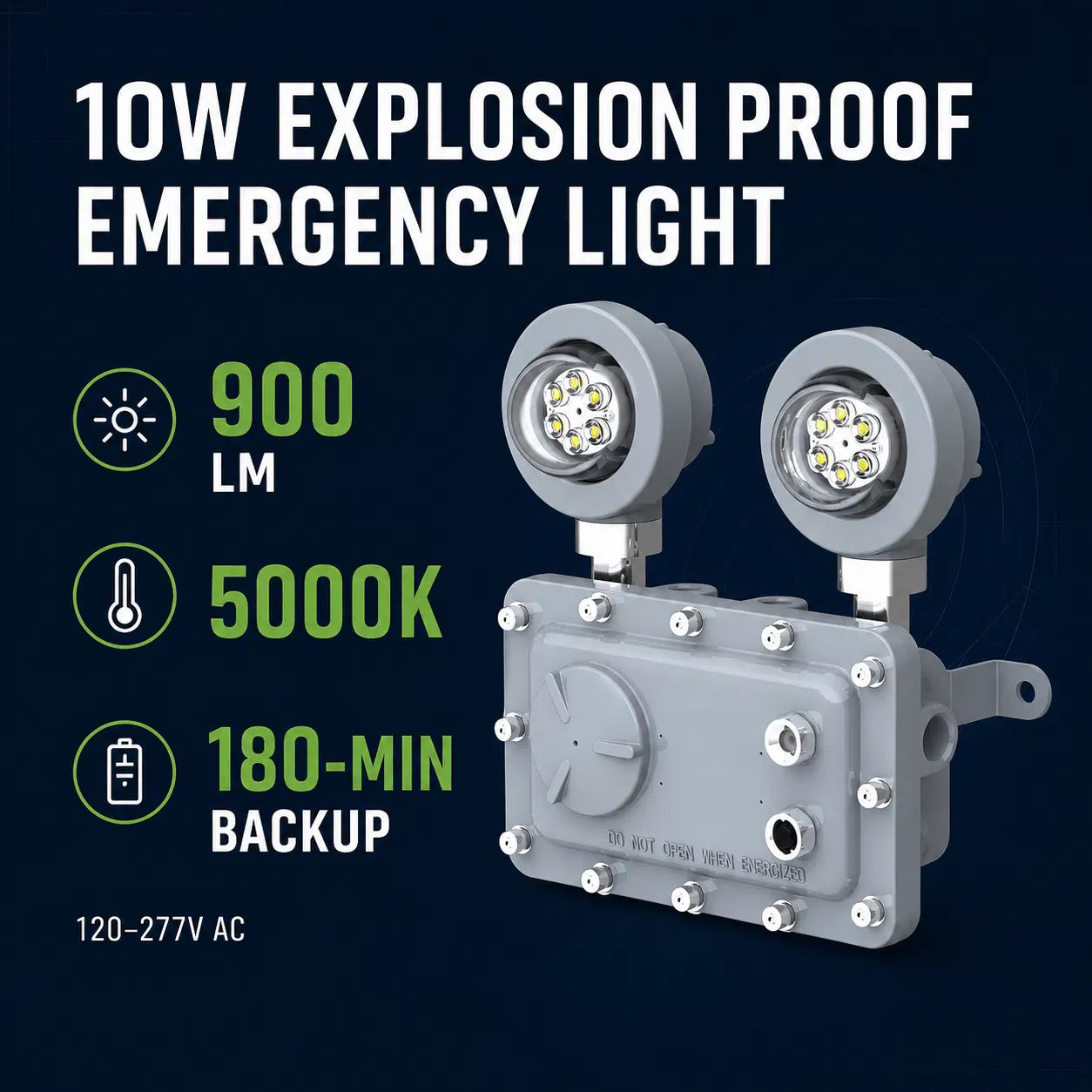

180-Minute Emergency Backup
Equipped with a PHENIX emergency driver, the fixture automatically switches to battery backup mode during outages and provides up to 3 hours of dependable illumination.

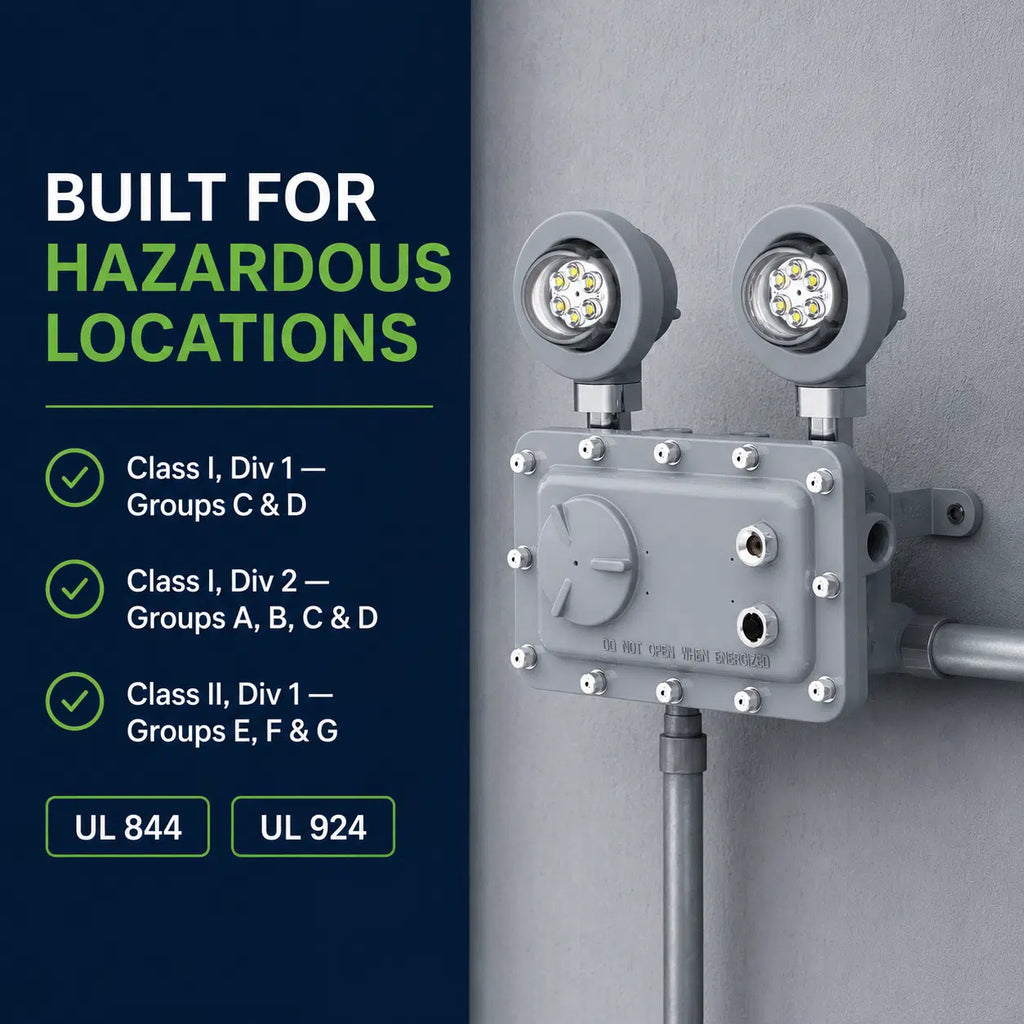

Hazardous Location Certified
Certified for Class I Division 1 and Division 2 environments, this fixture is built for flammable gas, vapor, and combustible dust locations requiring strict safety compliance.

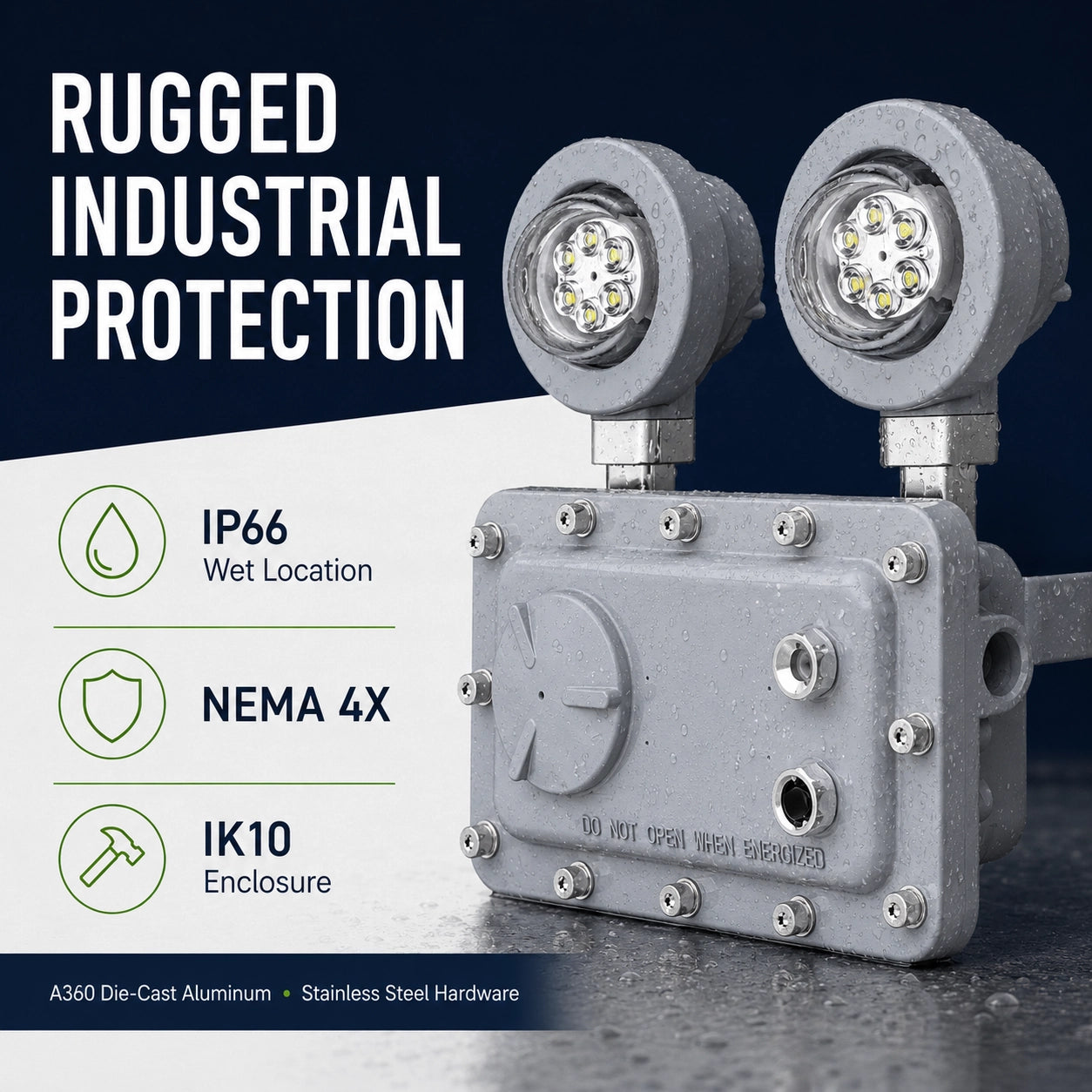

Rugged Industrial Construction
A360 die-cast aluminum housing, tempered glass lens, and stainless steel hardware deliver strong corrosion resistance, impact protection, and long-term durability.

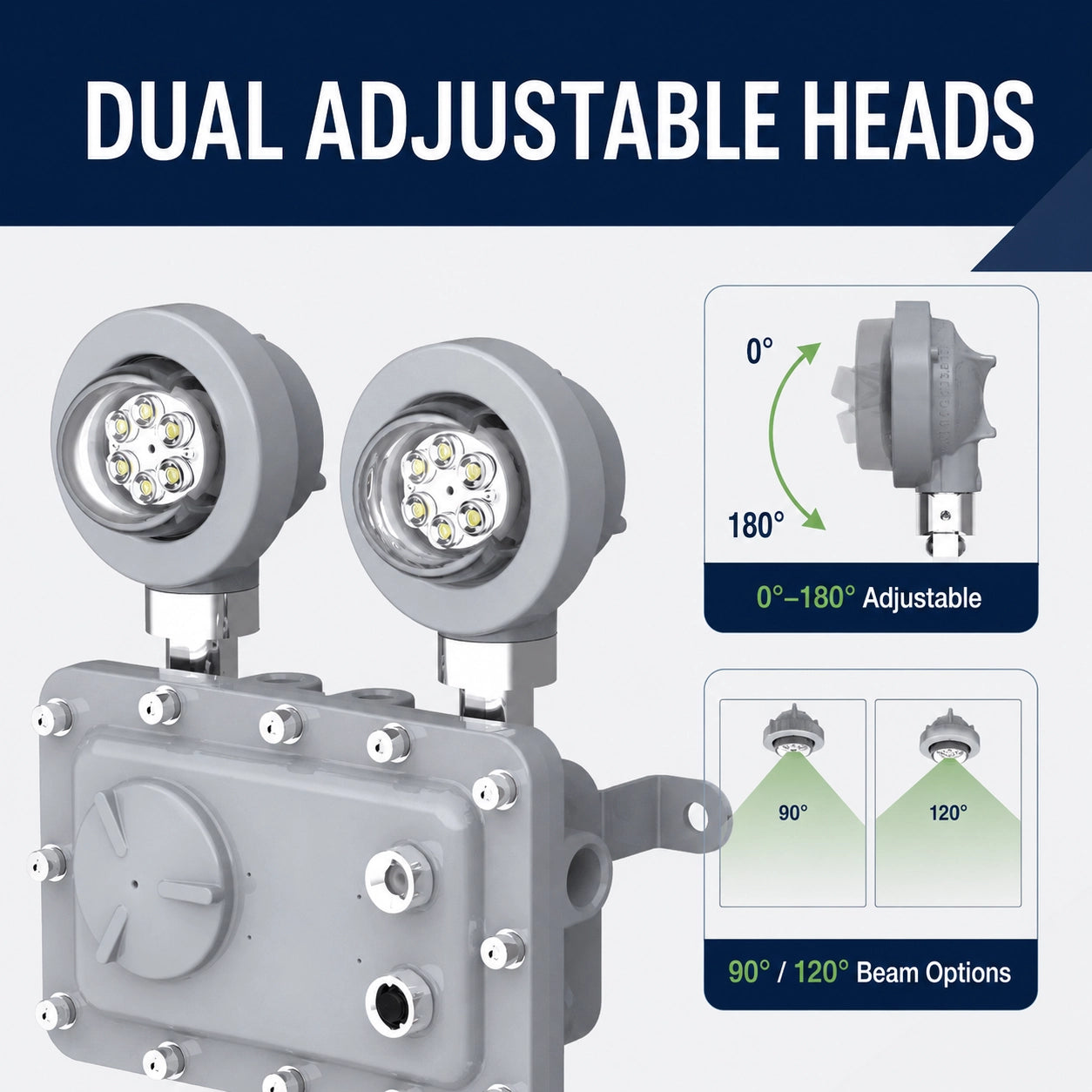

Flexible Optical Coverage
Dual adjustable spot heads allow you to direct emergency lighting exactly where it is needed, with available 90° and 120° beam options for different site requirements.
Certifications & Compliance
Safety Certifications
- UL 844 Hazardous Locations
- UL 924 Emergency Lighting
- ETL Listed

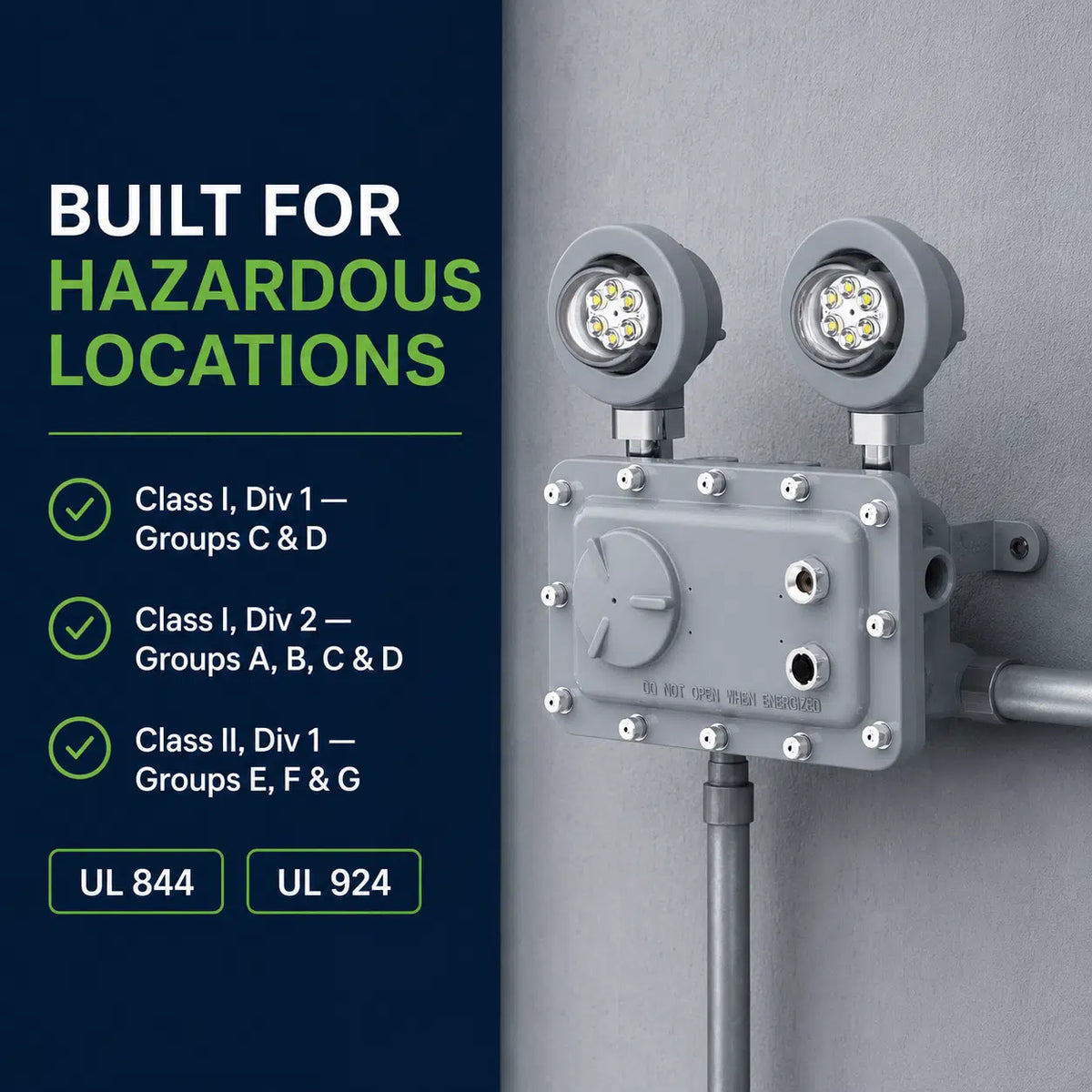

Hazardous Ratings
- Class I, Div 1, Groups C & D
- Class I, Div 2, Groups A, B, C, D
- Class II, Div 1, Groups E, F, G
Environmental Protection
- IP66 waterproof and dustproof
- NEMA 4X corrosion resistant
- Wet location rated
- IK10 high impact protection
Technical Specifications
| Model | EX-10WES03C1N5027FN70J01 |
| Wattage | 10W |
| Color Temperature | 5000K (3000K-6500K available) |
| Input Voltage | 120-277VAC |
| Emergency Operation | 180 minutes (3 hours) |
| Optics | 90° / 120° beam angles |

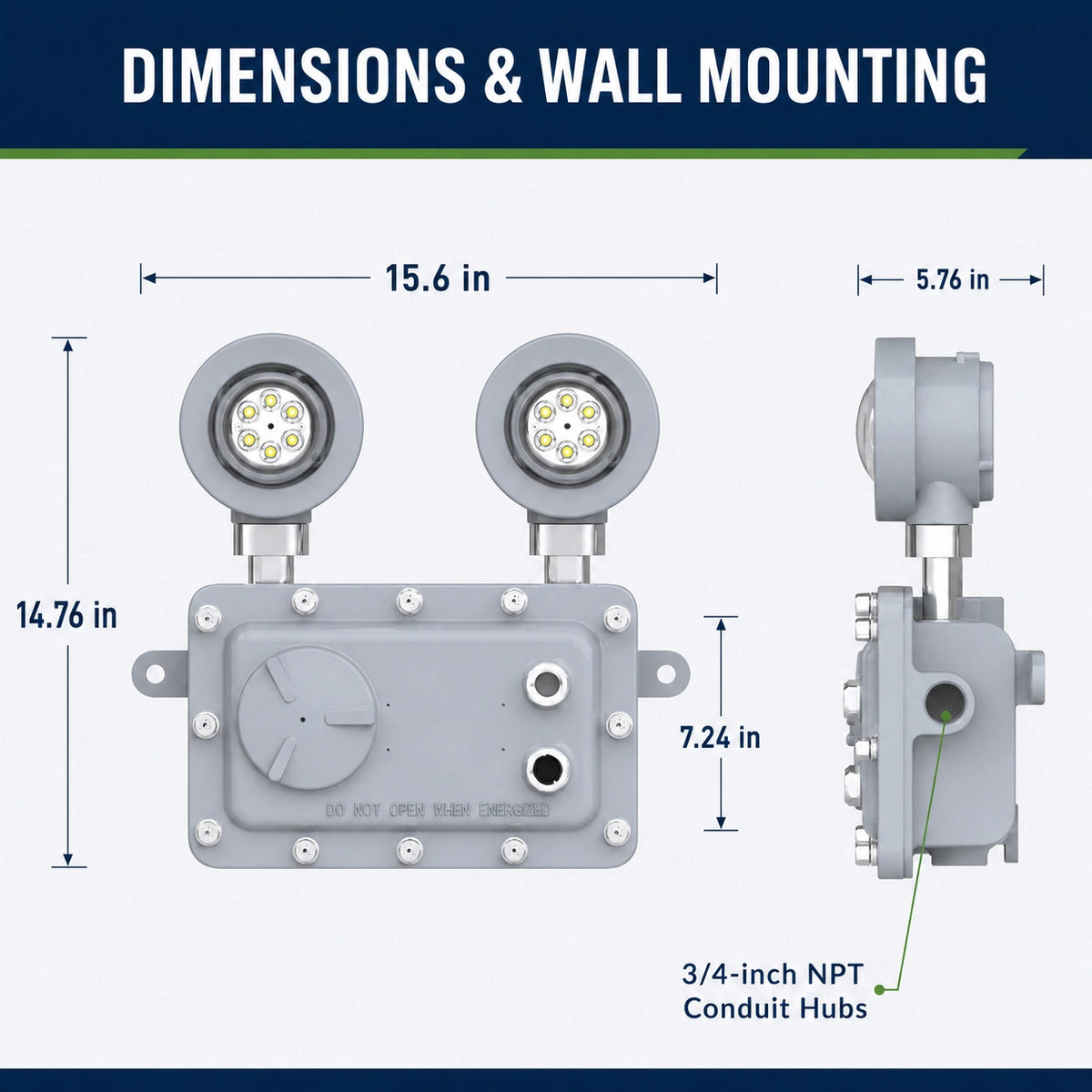

| Mounting | Wall mount with 3/4" NPT conduit hubs |
| Housing Material | A360 die-cast aluminum with stainless steel hardware |
| Lens | Tempered glass |
| Protection Rating | IP66 / NEMA 4X / Wet Location |
| Impact Rating | IK10 |
| Warranty | 5-Year Limited Warranty |

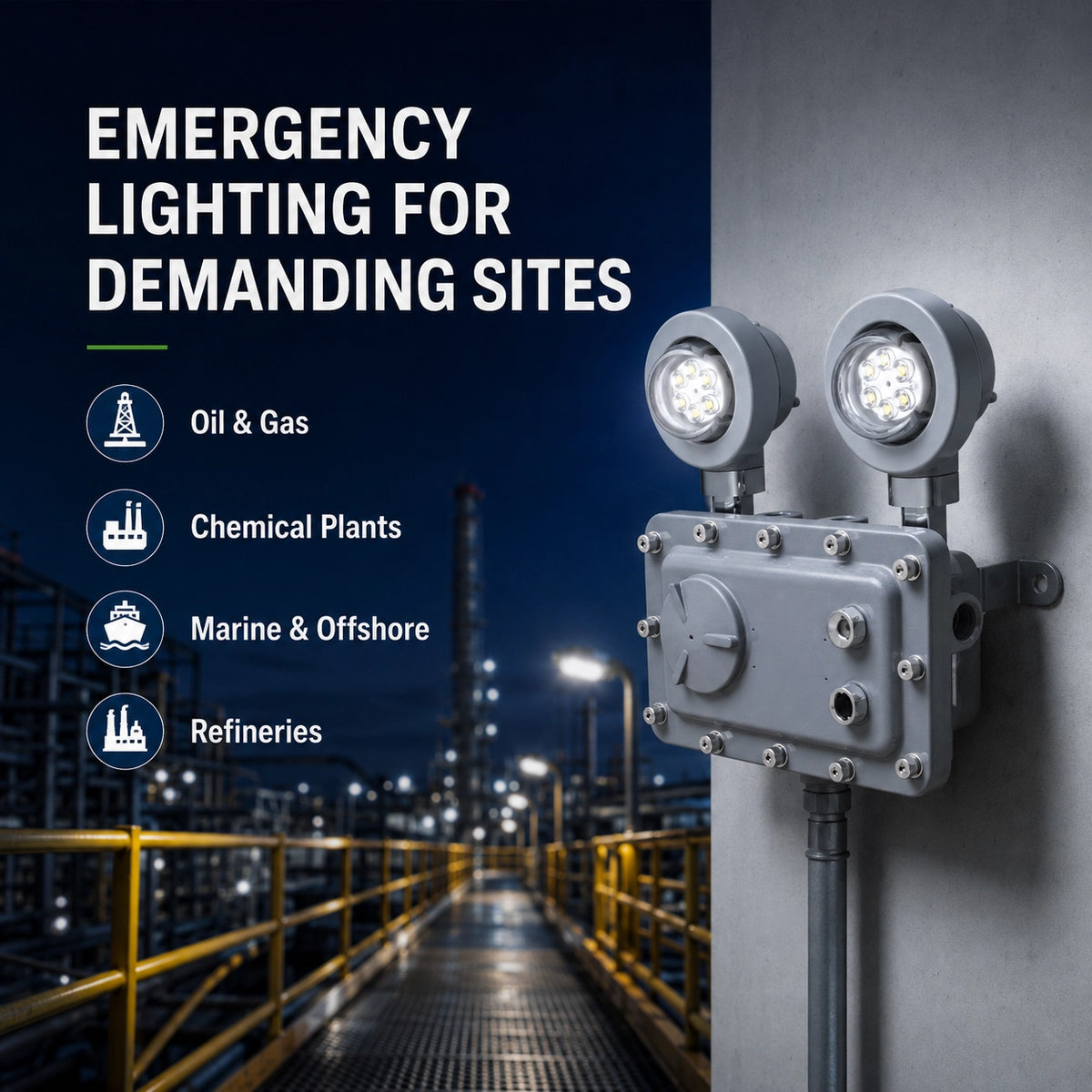

Applications
Oil & Gas Facilities
Reliable emergency lighting for drilling sites, processing units, and fuel-related operations.
Chemical Plants
Designed for hazardous chemical handling and production areas requiring explosion proof fixtures.
Marine & Offshore
Corrosion-resistant construction makes it suitable for wet, salty, and demanding marine conditions.
Refineries & Industrial Sites
Helps support emergency visibility in critical process areas and industrial safety zones.
Why Choose This Explosion Proof Emergency Light
Frequently Asked Questions
How long does the emergency battery last?
This fixture provides up to 180 minutes of emergency illumination during a power outage.
Is this light suitable for hazardous locations?
Yes. It is certified for Class I Division 1 and Division 2 hazardous locations, along with additional Class II ratings listed in the specifications.
Can the light heads be adjusted?
Yes. The dual spot heads are adjustable, allowing you to direct the emergency light output where coverage is needed most.
What environments is it designed for?
It is ideal for oil and gas sites, chemical plants, marine facilities, refineries, and other industrial hazardous areas requiring certified emergency lighting.
