J-Box Emergency LED Driver
11.8W Emergency Output • 90-Minute Backup • UL Certified
Emergency Backup Built Into the J-Box

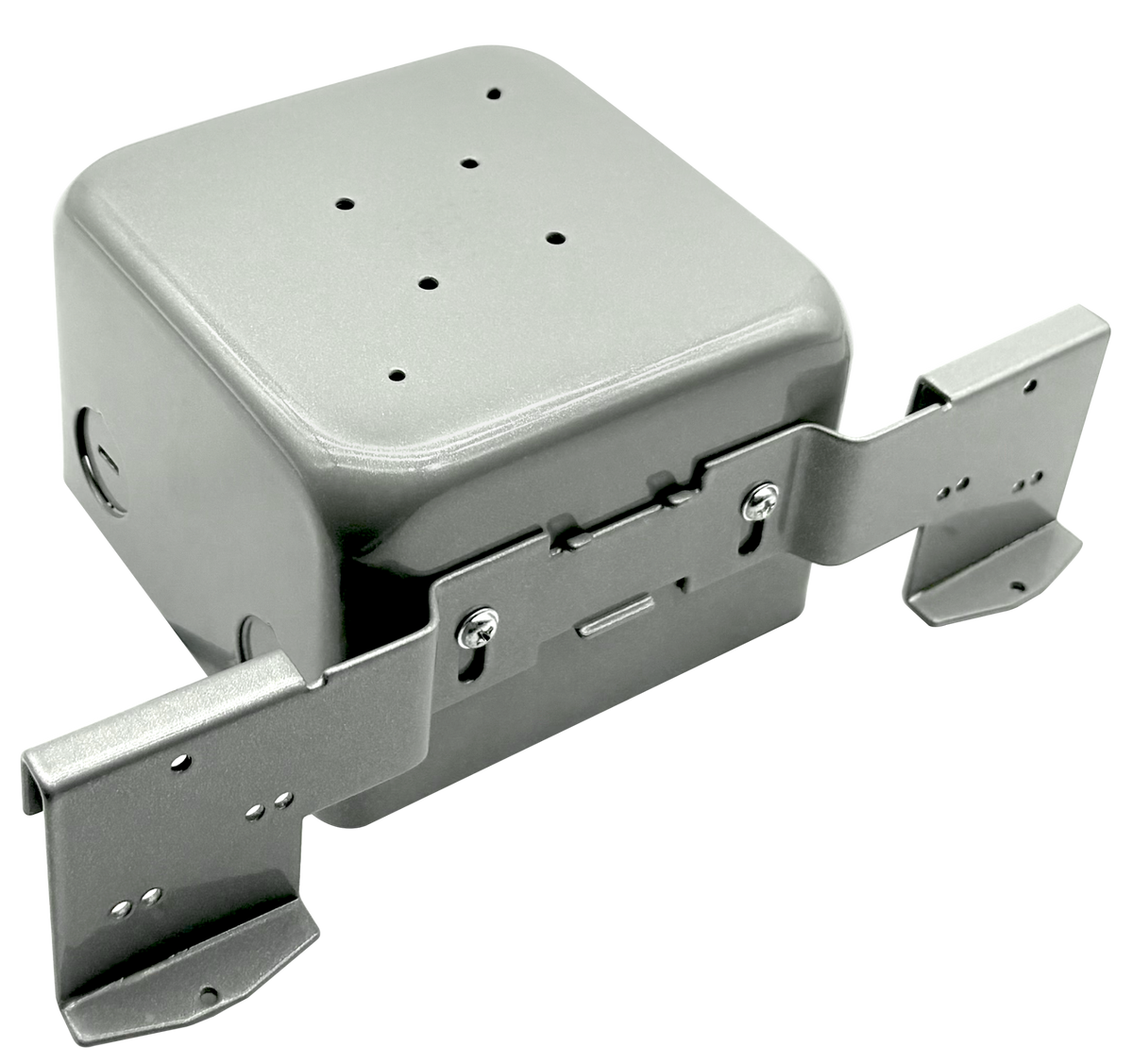

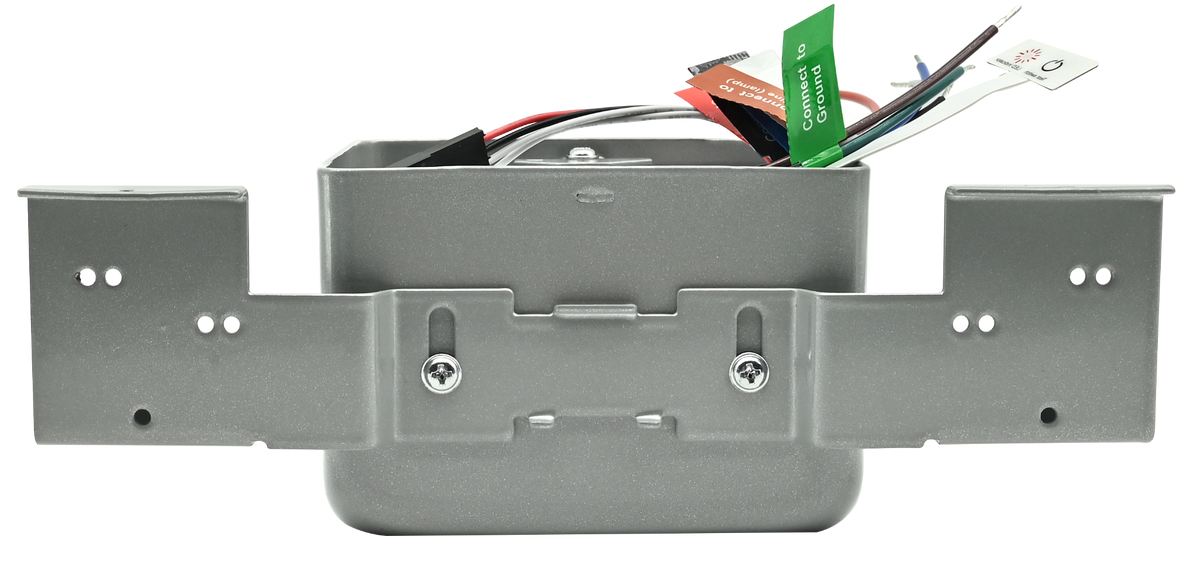

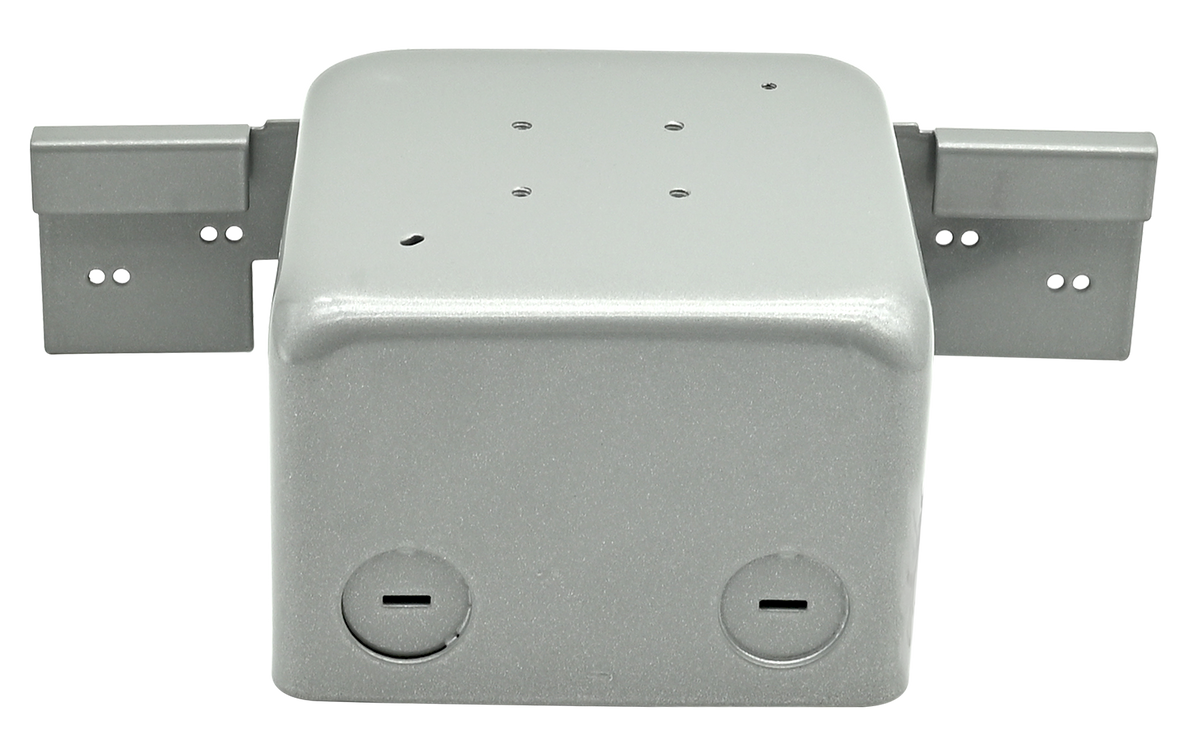

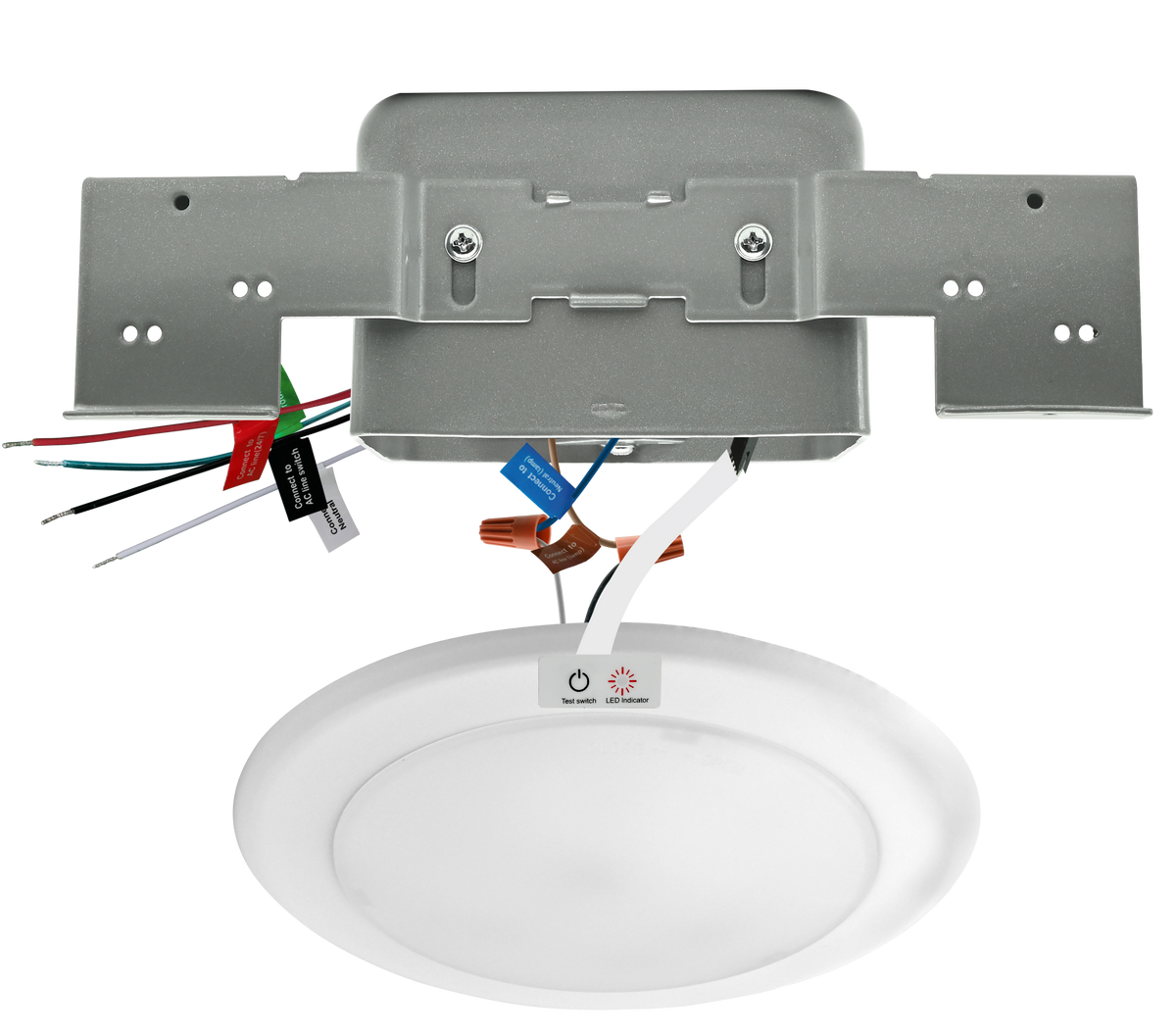

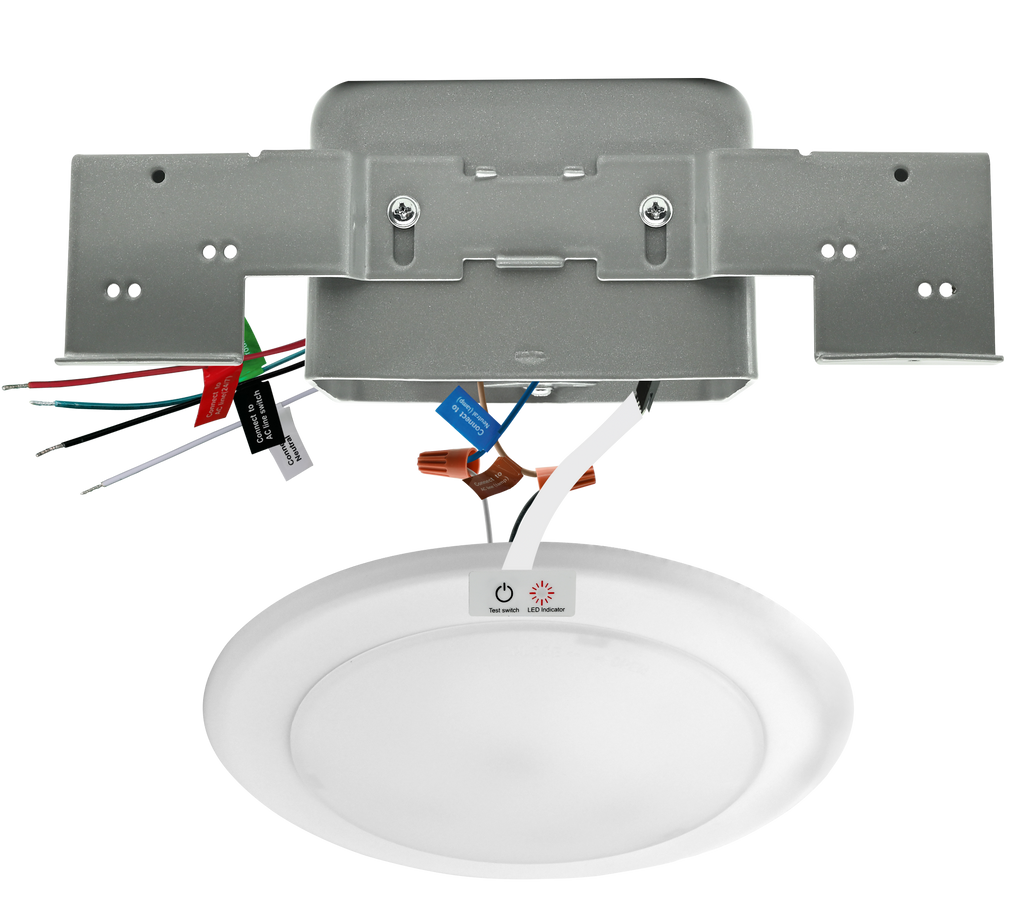

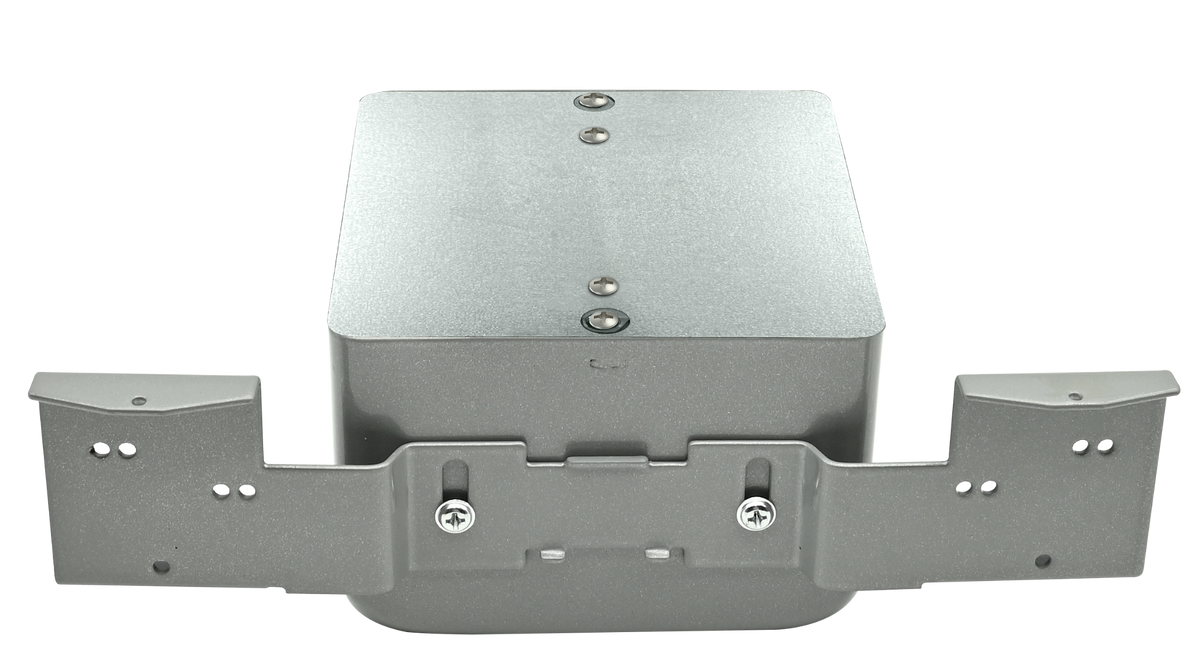

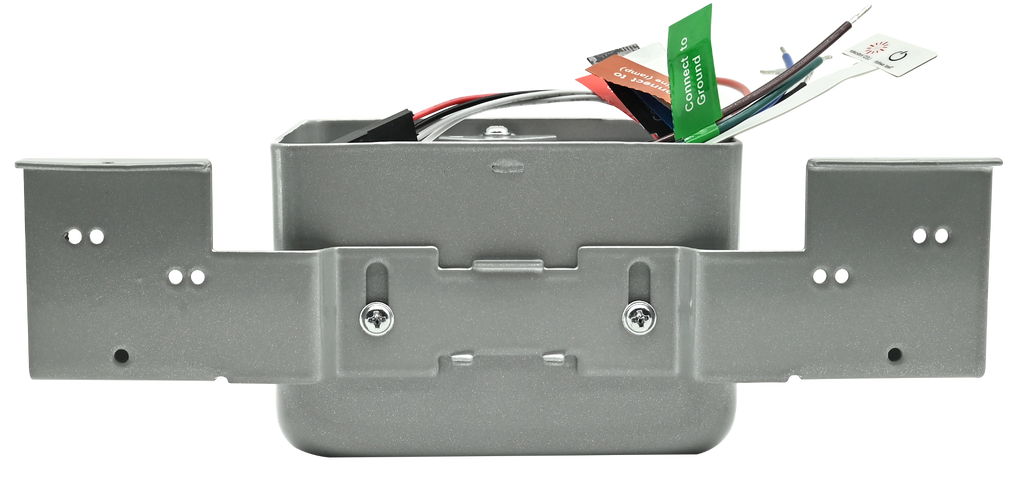

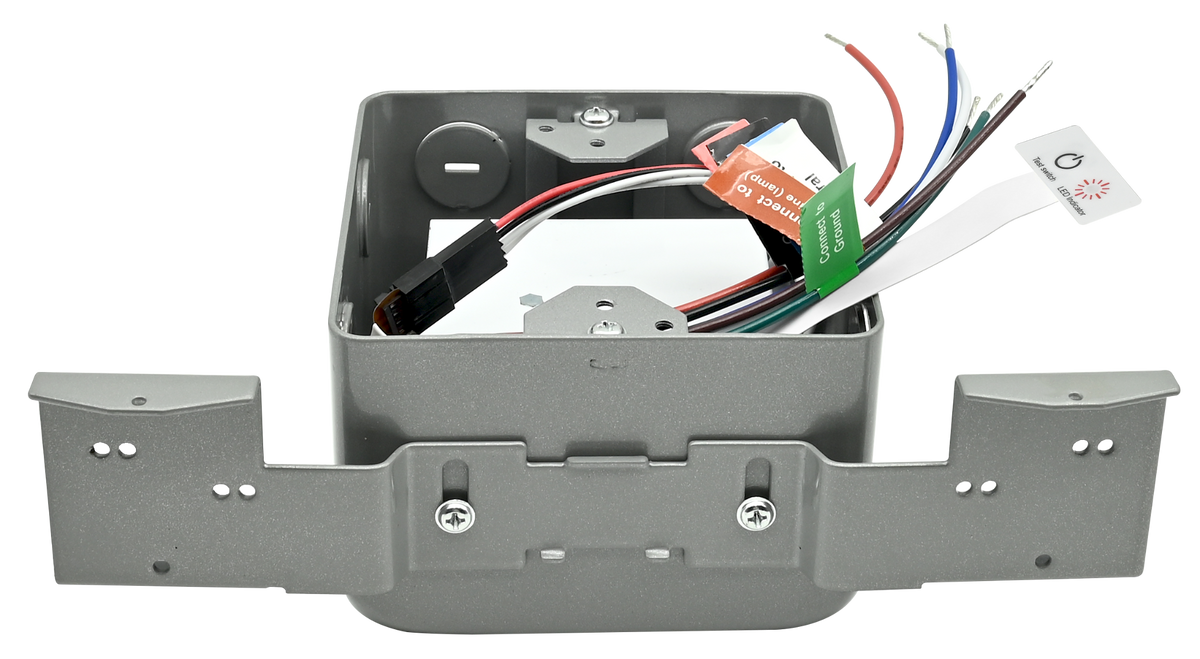

The TANLITE J-box emergency LED driver integrates the emergency power supply, rechargeable battery, wiring compartment, test switch and LED charge indicator into one compact ceiling-mounted assembly. When normal AC power is interrupted, the driver automatically switches the connected compatible LED luminaire to emergency operation for at least 90 minutes.
Key Selling Points
- 90-minute emergency operation: provides code-focused backup illumination during a power failure.
- 11.8W emergency output: delivers dedicated emergency power to a confirmed compatible LED luminaire.
- Integrated J-box solution: combines the enclosure, emergency driver and battery system for a clean, concealed ceiling installation.
- UL Certified: product label bears UL certification mark and file number E540190.
- 10.8V 2.6Ah Li-ion battery: rechargeable internal battery pack designed for dependable backup operation.
- 24/7 unswitched charging connection: dedicated AC line keeps the emergency battery charging while a separate switched line controls the lamp.
- Built-in test switch and LED indicator: simplifies routine functional testing and charging-status checks.
- Damp-location suitable: designed for indoor dry or damp locations.
- Construction-friendly design: includes a protective plastic cover to shield the J-box opening from paint and plaster.
Verified Product Specifications
| Product SKU | TL-7CJEM |
| Emergency Driver Model | EMSM-M15P13-A |
| Input Voltage | 120V AC, 50/60Hz |
| Input Current | 100mA Max |
| Input Power | 5W Max |
| Emergency Output Power | 11.8W |
| Output Voltage | 190V DC Max |
| Emergency Duration | 90 minutes |
| Battery Pack | 10.8V 2.6Ah rechargeable Li-ion |
| Ambient Temperature | 10°C to 50°C (50°F to 122°F) |
| Location | Indoor dry or damp locations |
| Certification | UL Certified, File E540190 |
| Maximum Supported Luminaire Weight | 4.8 kg (10.6 lb) |
| Maximum Mounting Height | 16.96 ft (5.17 m) |
Wiring & Test Functions

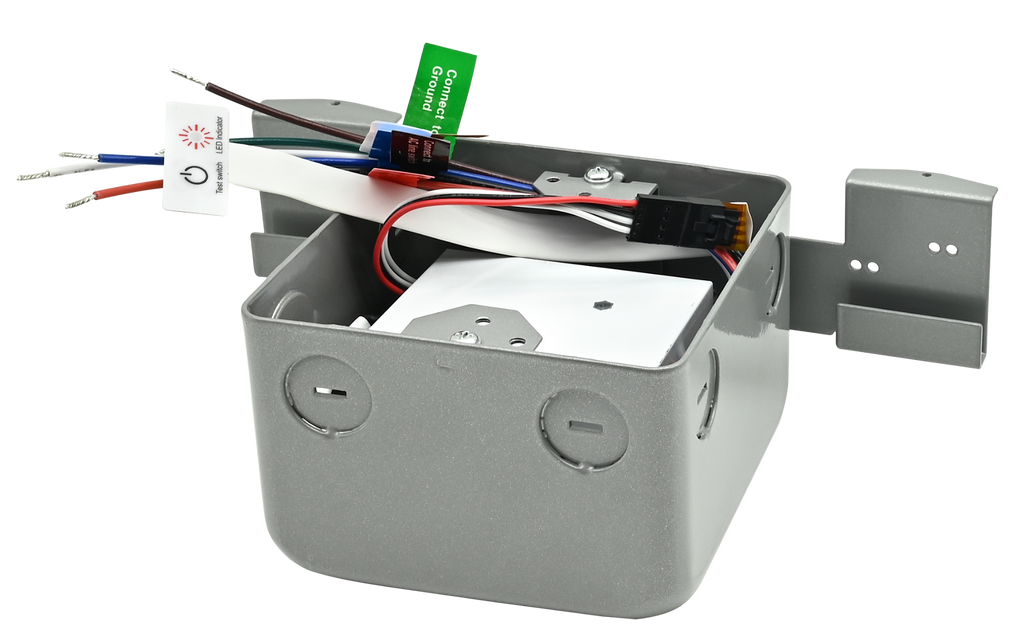

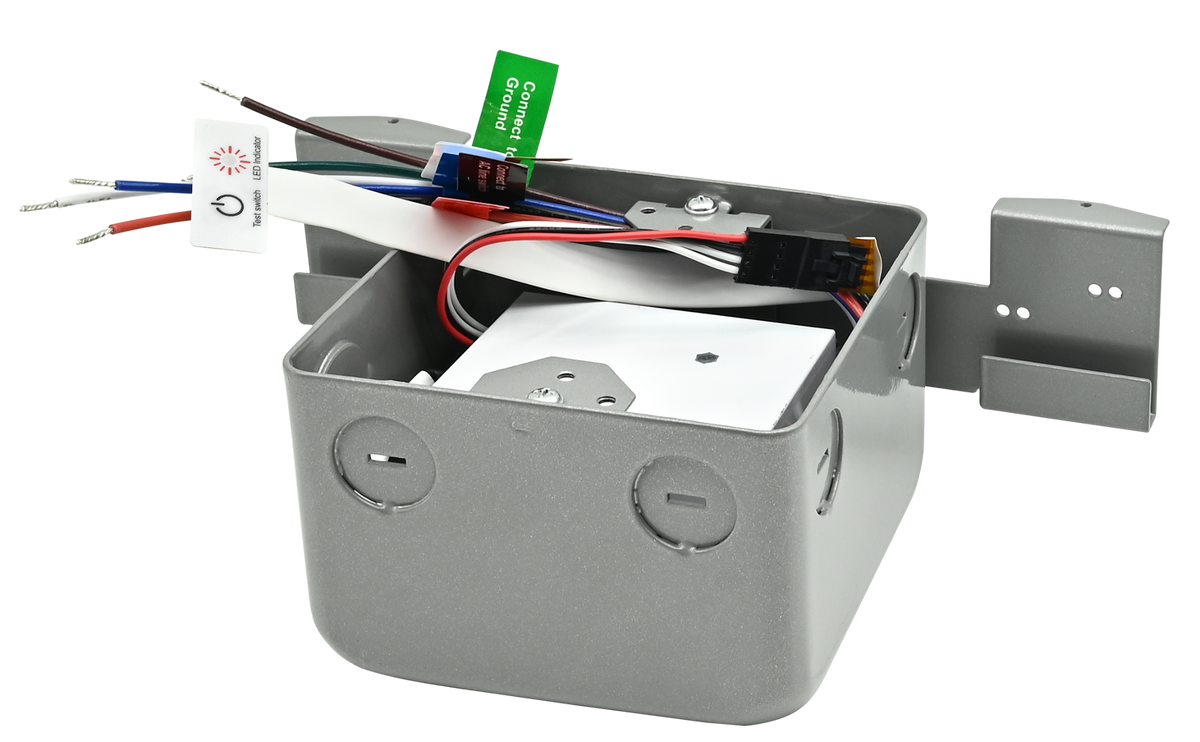

Input wires: Red—24/7 AC line; White—neutral; Black—switched AC line; Green—ground.
Output wires: Brown—lamp line; Blue—lamp neutral.
Solid red indicator: normal charging or fully charged.
Flashing red indicator: battery is disconnected, utility power is off, or the unit is discharging.
Test switch: press during normal operation to test emergency mode; hold approximately 3 seconds during emergency operation to switch it off.
Package Includes
1 × J-box emergency battery backup, 1 × plastic construction cover, 2 × plastic screws and 6 × wire nuts.
