Description

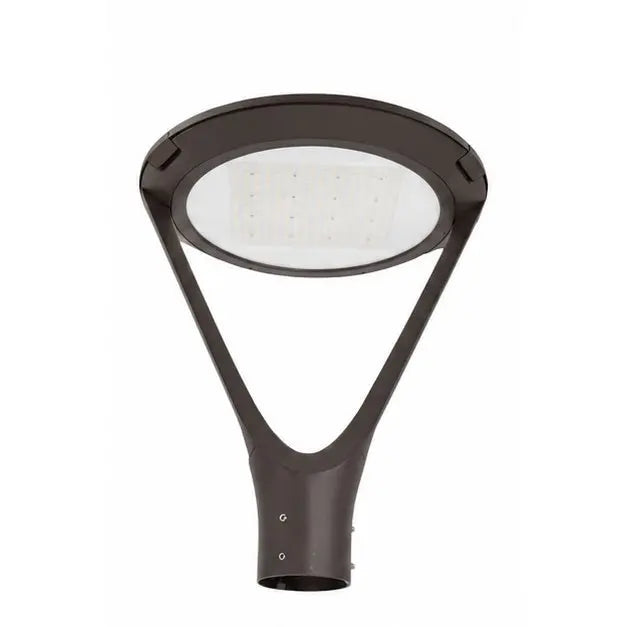

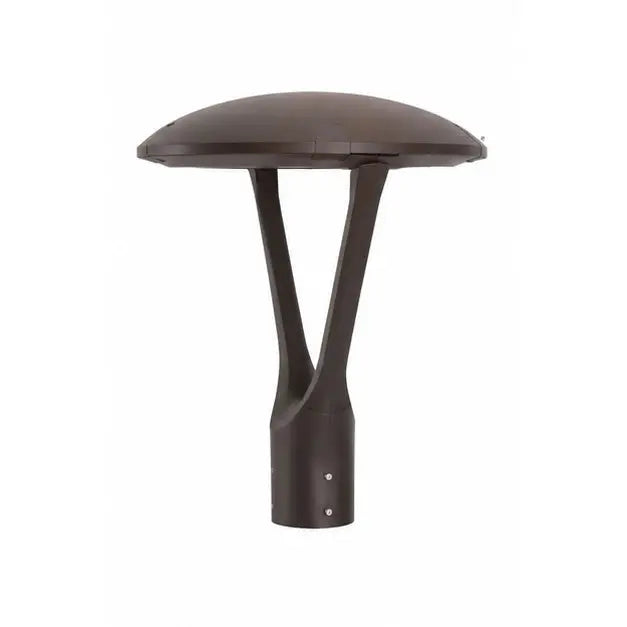

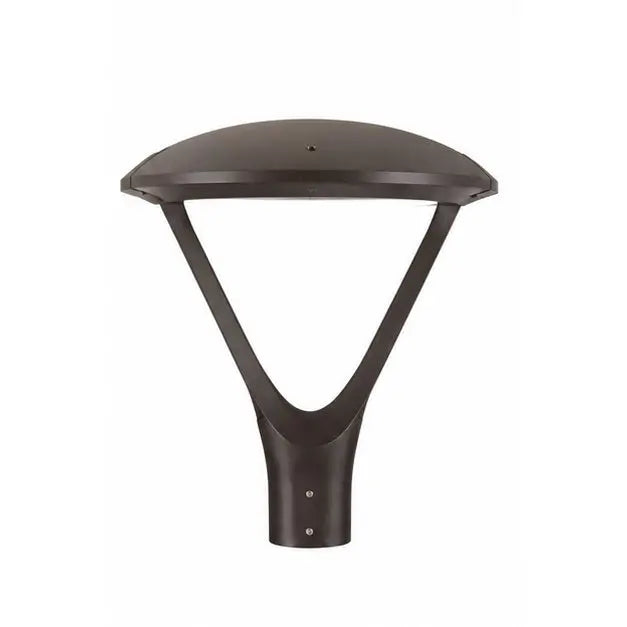

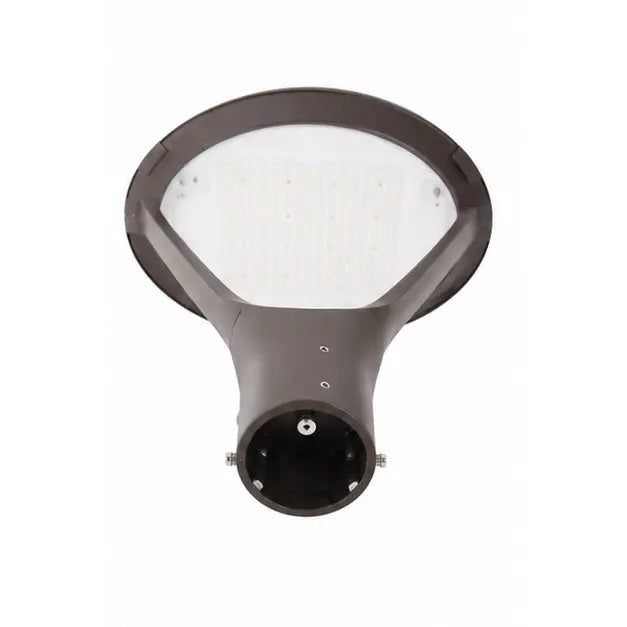

Architectural LED Post Top Light
This commercial LED post top light combines a modern architectural profile with field-selectable wattage and color temperature. It is designed for parks, pathways, courtyards, campuses, streetscapes, apartment communities, parking areas, municipal projects, and other outdoor spaces requiring dependable illumination and a clean appearance.
Key Features
- 3 Wattages Selectable: 125W, 105W, or 76W
- 3CCT Selectable: 3000K, 4000K, or 5000K
- High Output: Up to 18,700 lumens with efficacy up to 150 lm/W
- Light Distribution Options: Type V for symmetrical open-area coverage or Type III for forward and side-throw distribution
- Universal Voltage: 120–277V AC
- 400W Metal Halide Replacement: Helps reduce energy use and maintenance requirements
- Durable Construction: Die-cast aluminum housing, tempered glass diffuser, polycarbonate optical lens, and dark bronze powder-coated finish
- Outdoor Rated: IP65 and wet-location rated with IK08 impact resistance
- Electrical Protection: Built-in 10kV surge protection
- Pole Compatibility: Fits pole tenons up to approximately 3.28 inches outside diameter
- Cable length: 3ft
- Certifications: UL Listed and DLC Premium
- Warranty: 5-year limited warranty
Light Distribution Guide
Type V: Produces a wide, symmetrical pattern for open areas such as parks, plazas, courtyards, pedestrian spaces, and general site lighting.
Type III: Provides wider forward and side-throw illumination for roadways, pathways, parking lot edges, perimeter areas, and installations positioned near the side of the target area.
Specifications
| Product Type | LED Post Top Light |
| Selectable Wattage | 125W / 105W / 76W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Maximum Lumens | 18,700 lm |
| Efficacy | Up to 150 lm/W |
| Input Voltage | 120–277V AC |
| Light Distribution | Type V or Type III |
| CRI | >70 |
| Power Factor | >0.92 |
| THD | <10% |
| Surge Protection | 10kV |
| IP Rating | IP65 |
| Impact Rating | IK08 |
| Operating Temperature | -20°F to 113°F |
| Dimensions | Ø16.77 in. × 20.75 in. H |
| Weight | 13.2 lb |
| Finish | Dark Bronze |
| Controls | Optional dusk-to-dawn photocell |
| Rated Life | Over 50,000 hours |
| Certifications | UL Listed, Wet Location, DLC Premium |
Recommended Applications
- Parks and recreation areas
- Roadways and pathways
- Residential communities and HOAs
- Courtyards and gardens
- Apartment complexes
- Campuses and public facilities
- Parking lots and commercial properties
- Municipal and streetscape projects
What Is Included
One LED post top fixture, one twin-arm mounting bracket, and one installation guide.
Why Choose TANLITE
- Professional commercial lighting solutions and reliable LED lights
- Four U.S. warehouses and one warranty service center
- Typical delivery in 2–4 working days after payment for in-stock products
- DIALux lighting design support available
- 30-day money-back guarantee
- 5-year warranty begins from the fixture’s production date label plus 2 months
