Description

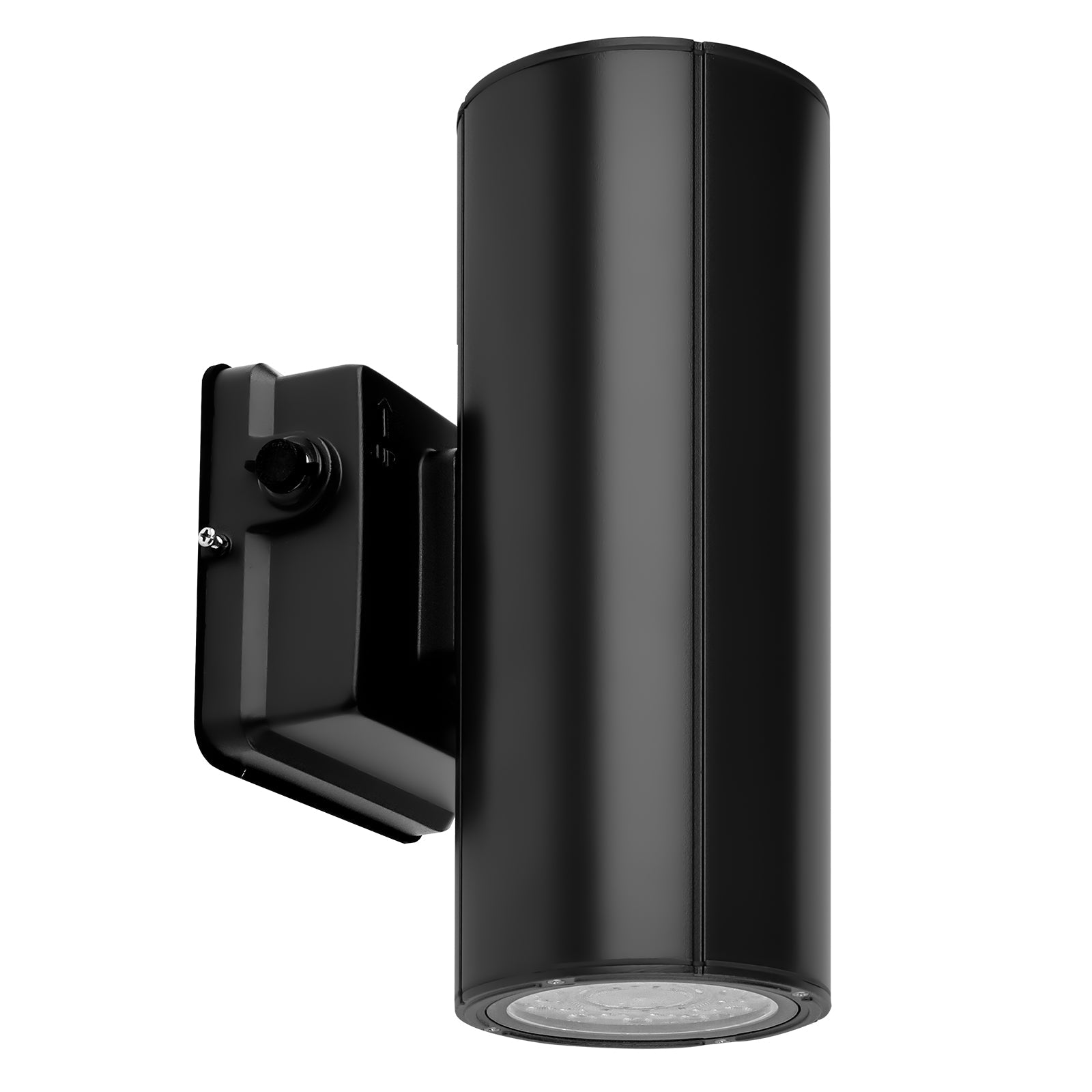

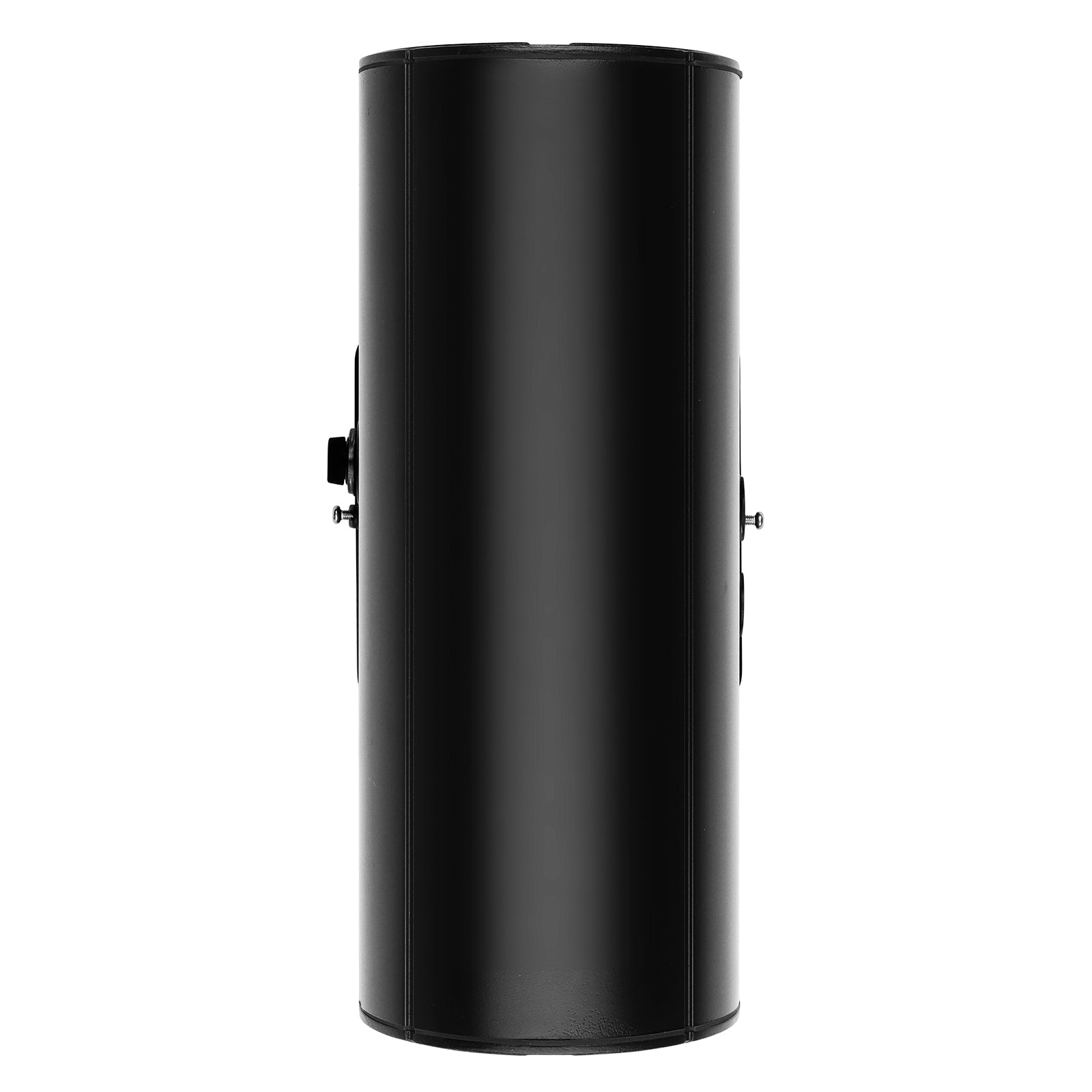

20W / 16W / 10W Selectable LED Up & Down Wall Light - 4 Pack

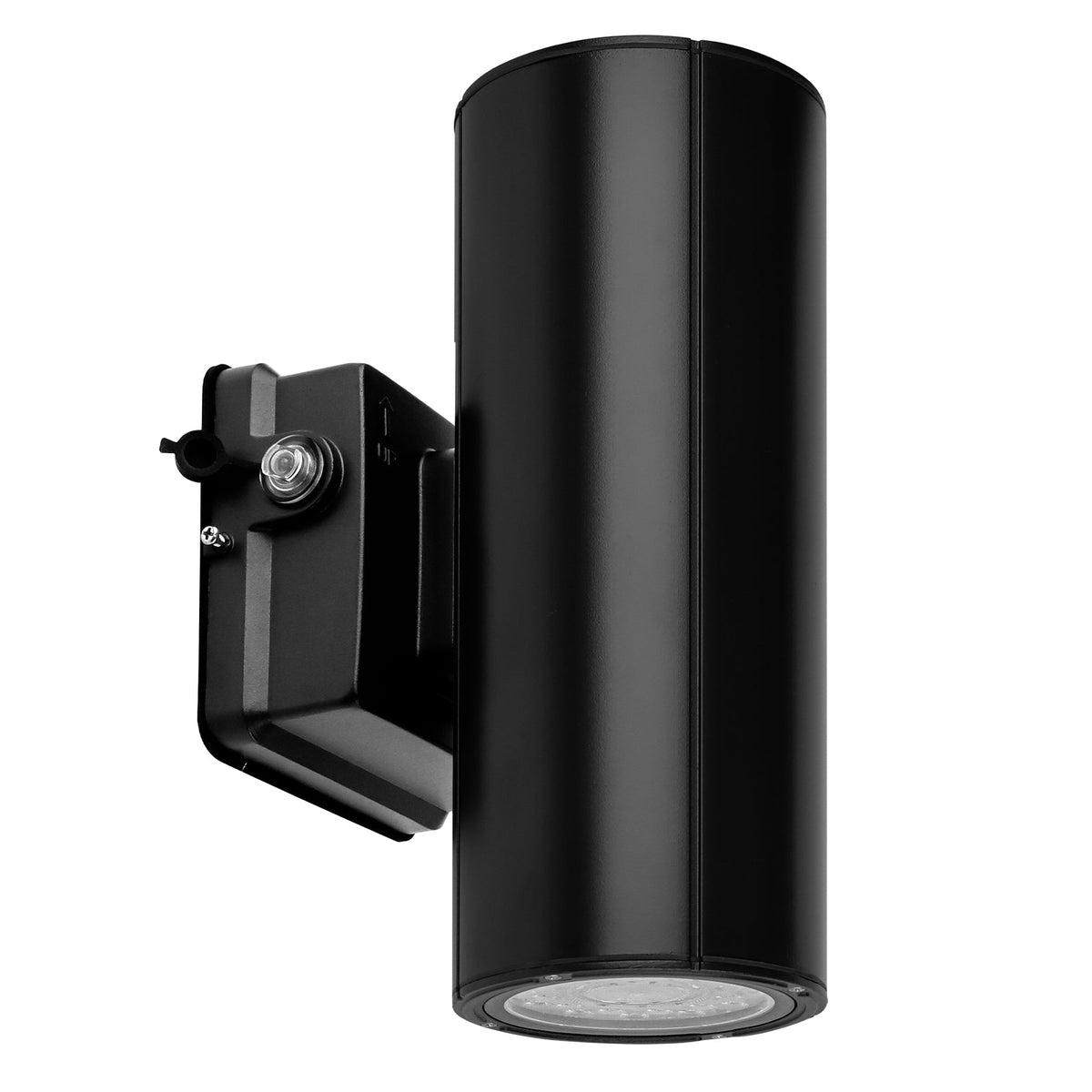

A compact architectural cylinder light with selectable wattage, 3CCT, lighting direction and beam distribution, plus a standard photocell for dusk-to-dawn control.
Four-Way Project Flexibility
Configure the fixture during installation to suit the building façade, entrance or walkway. Select power, color temperature, lighting direction and beam distribution without stocking separate fixed-output models.
Selectable wattage
Selectable CCT
Selectable light direction
Selectable beam distribution

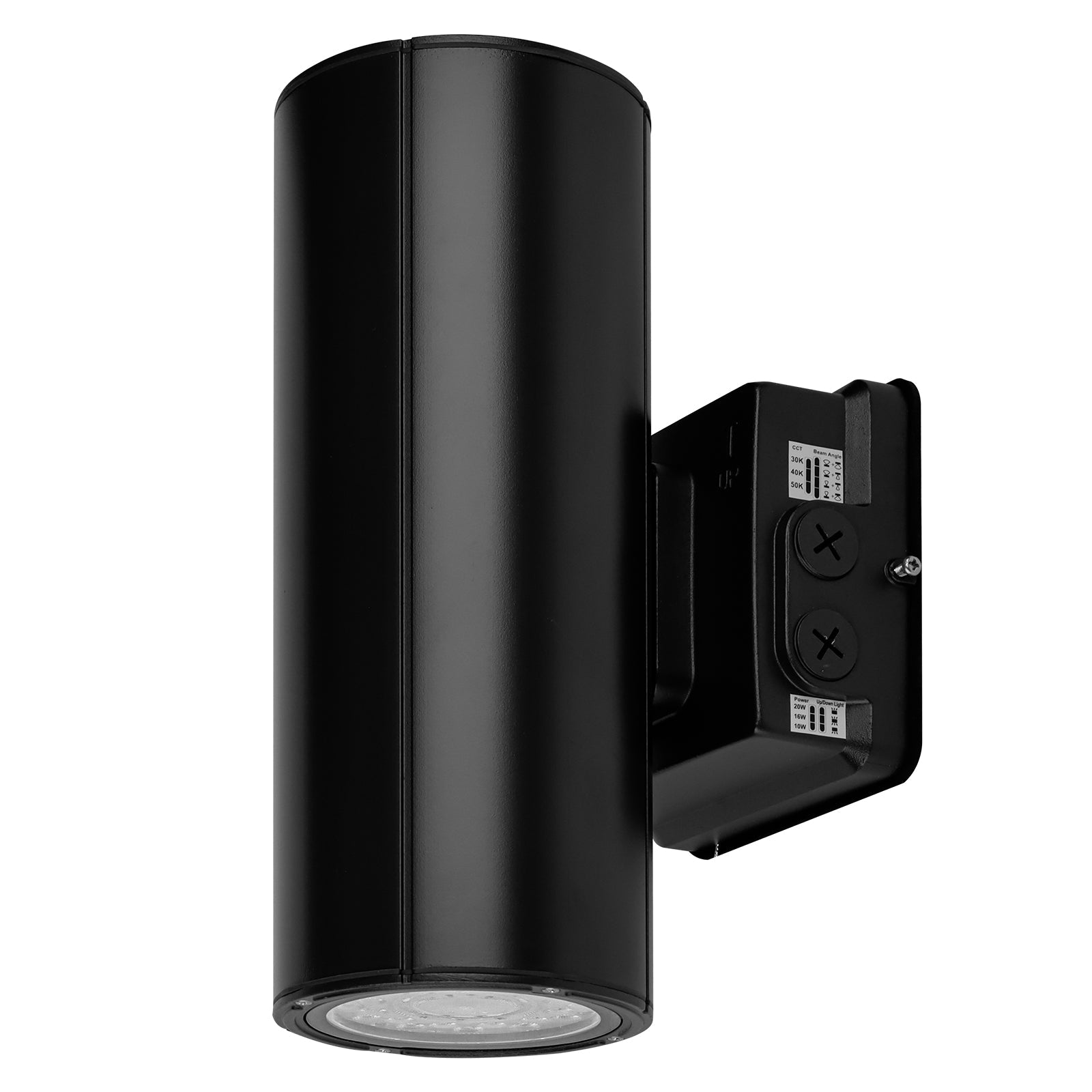

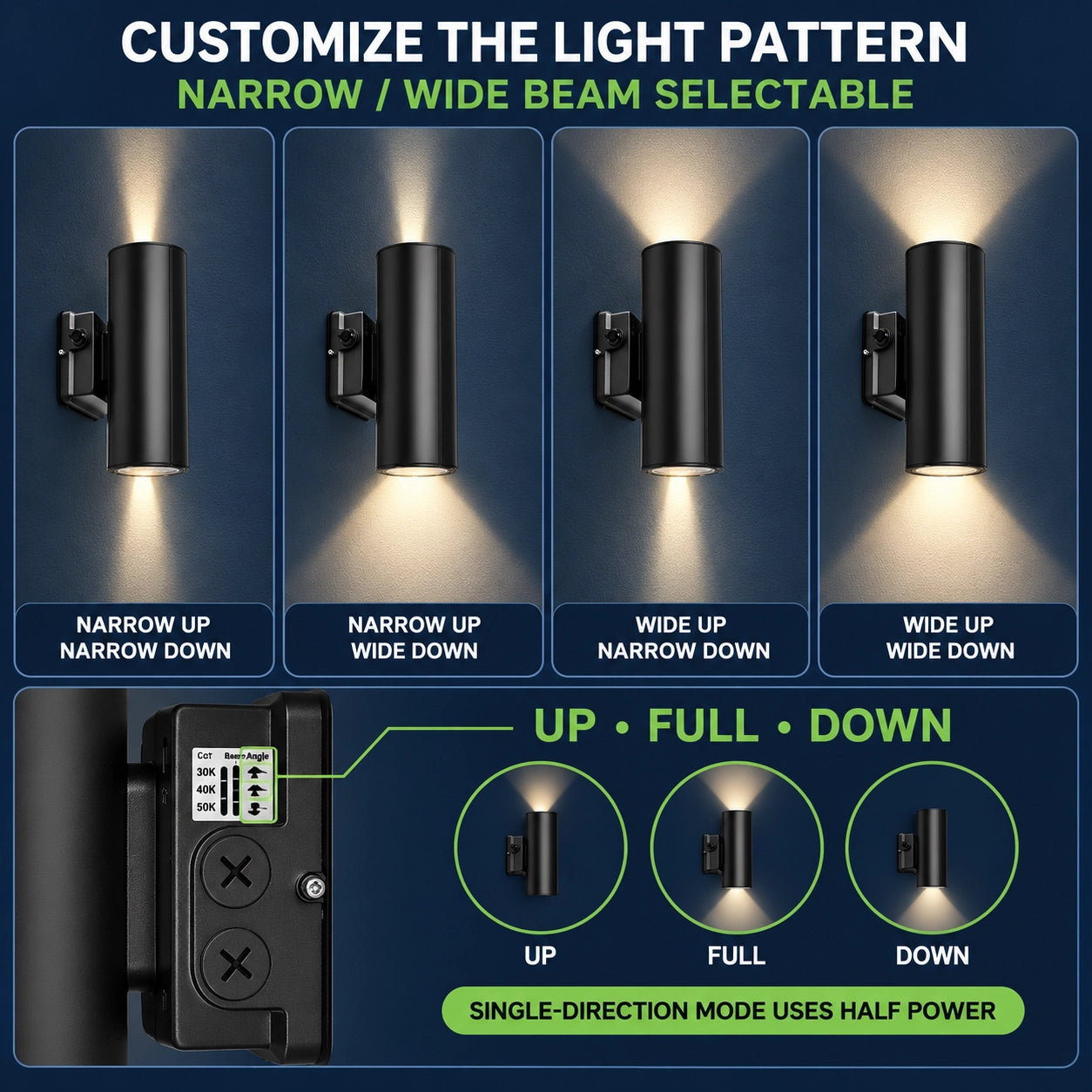

Selectable Up & Down Distribution
Choose full narrow, full wide, upward narrow with downward wide, or upward wide with downward narrow illumination. Direction can also be switched among Up, Full and Down. When a single-sided direction is selected, fixture power is reduced by approximately half.

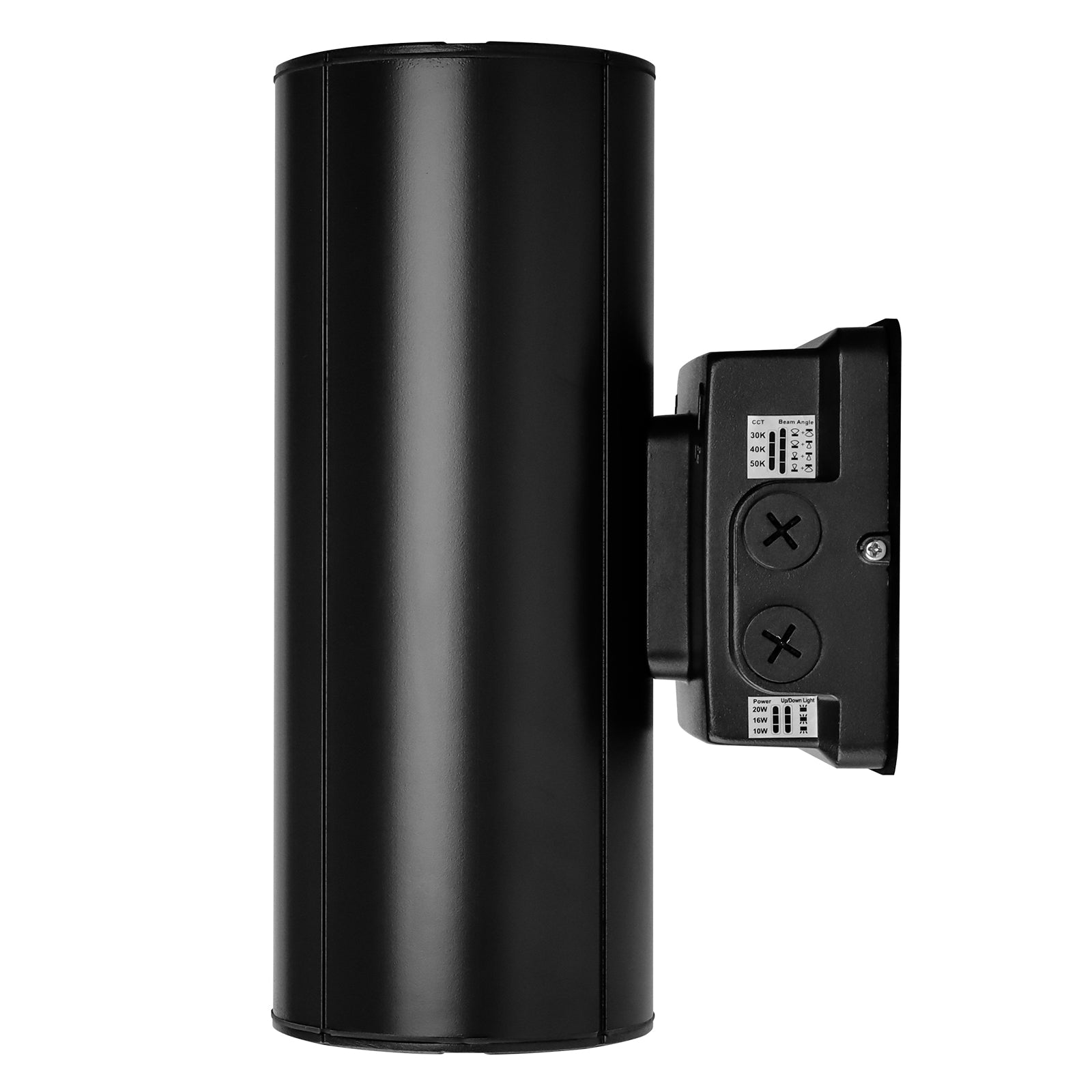

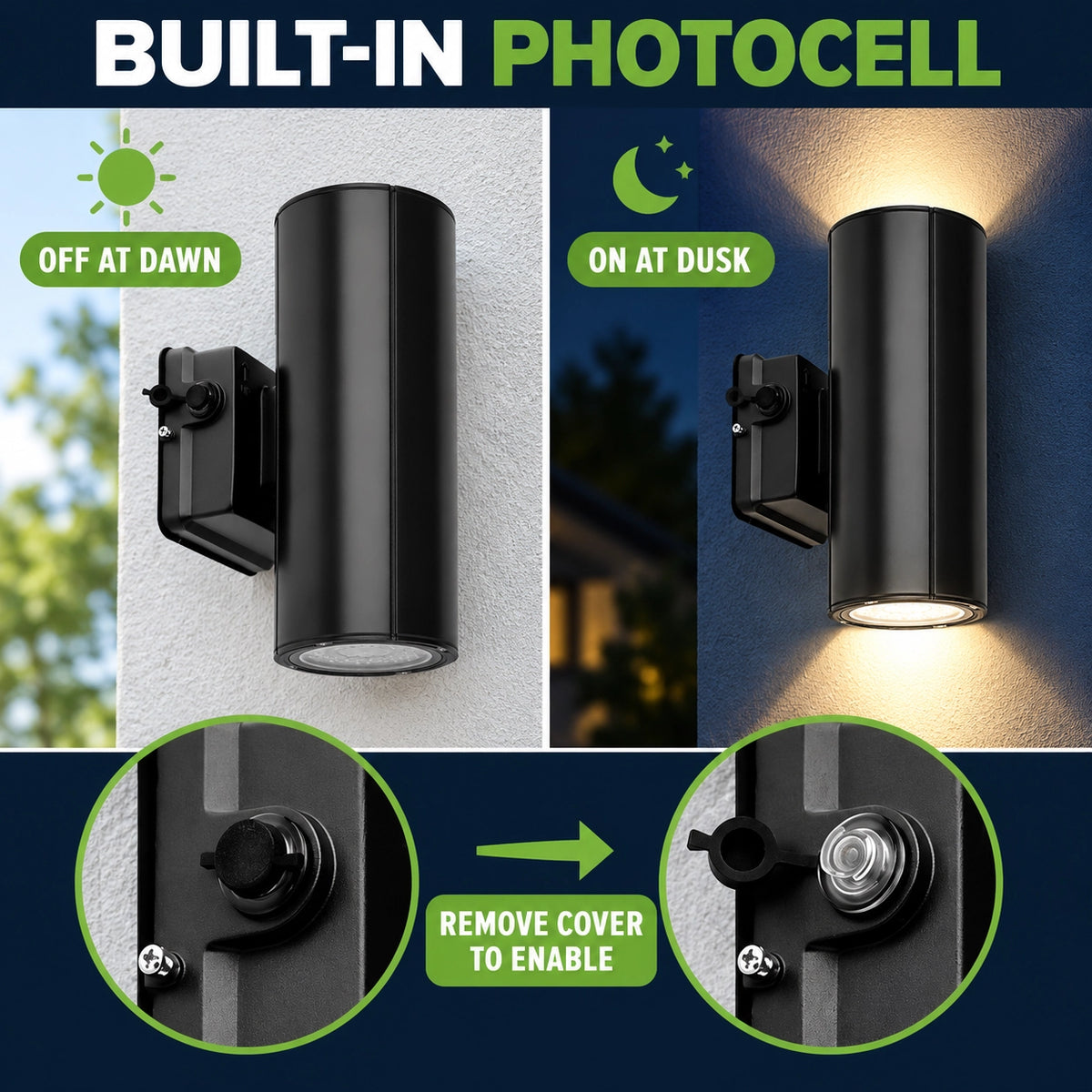

Photocell with Removable Sunshade Cover
The photocell is supplied with a cover cap. Remove the cap to enable automatic dusk-to-dawn operation, or leave it installed when photocell operation is not required.
Product Specifications
| Model Series | XCLA20WS |

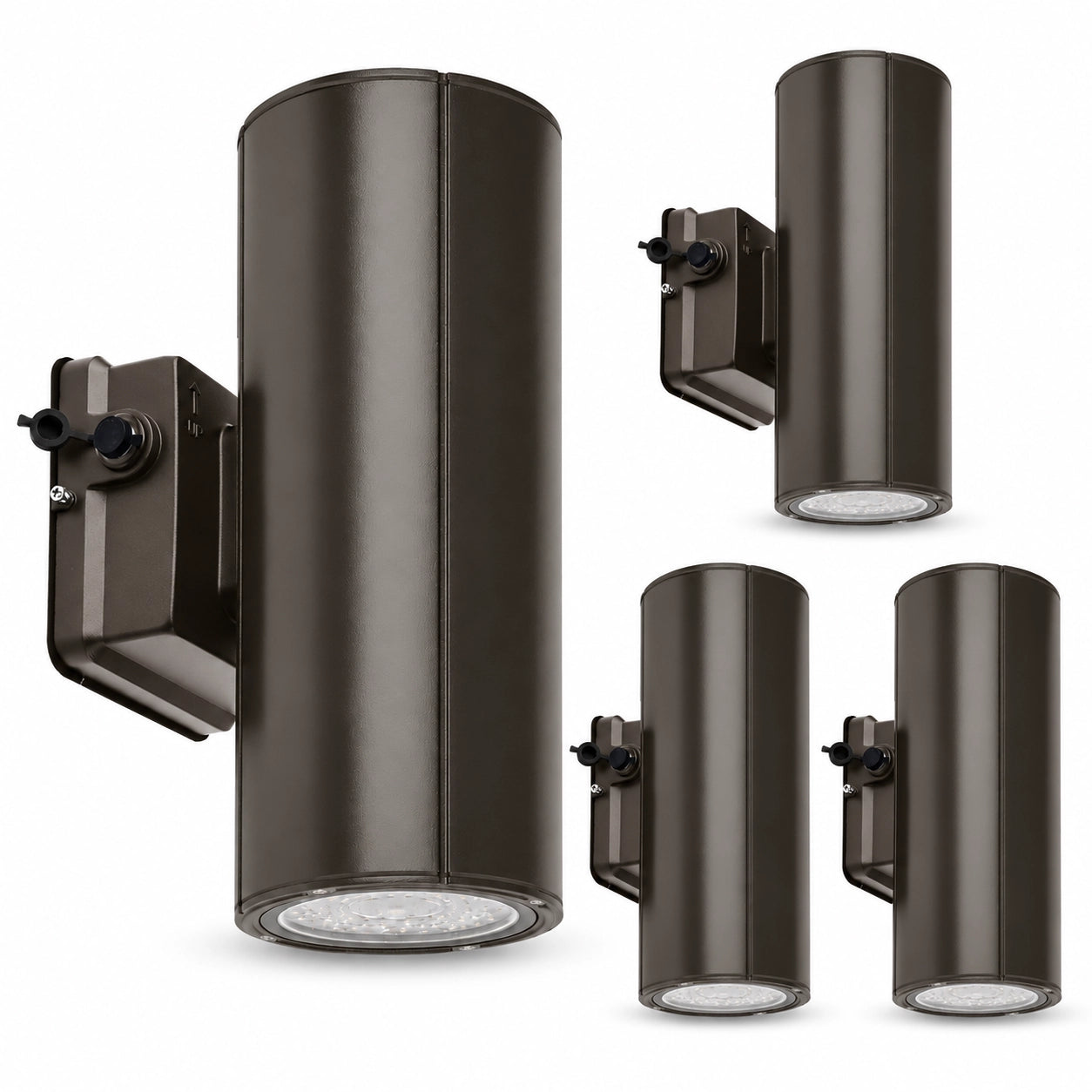

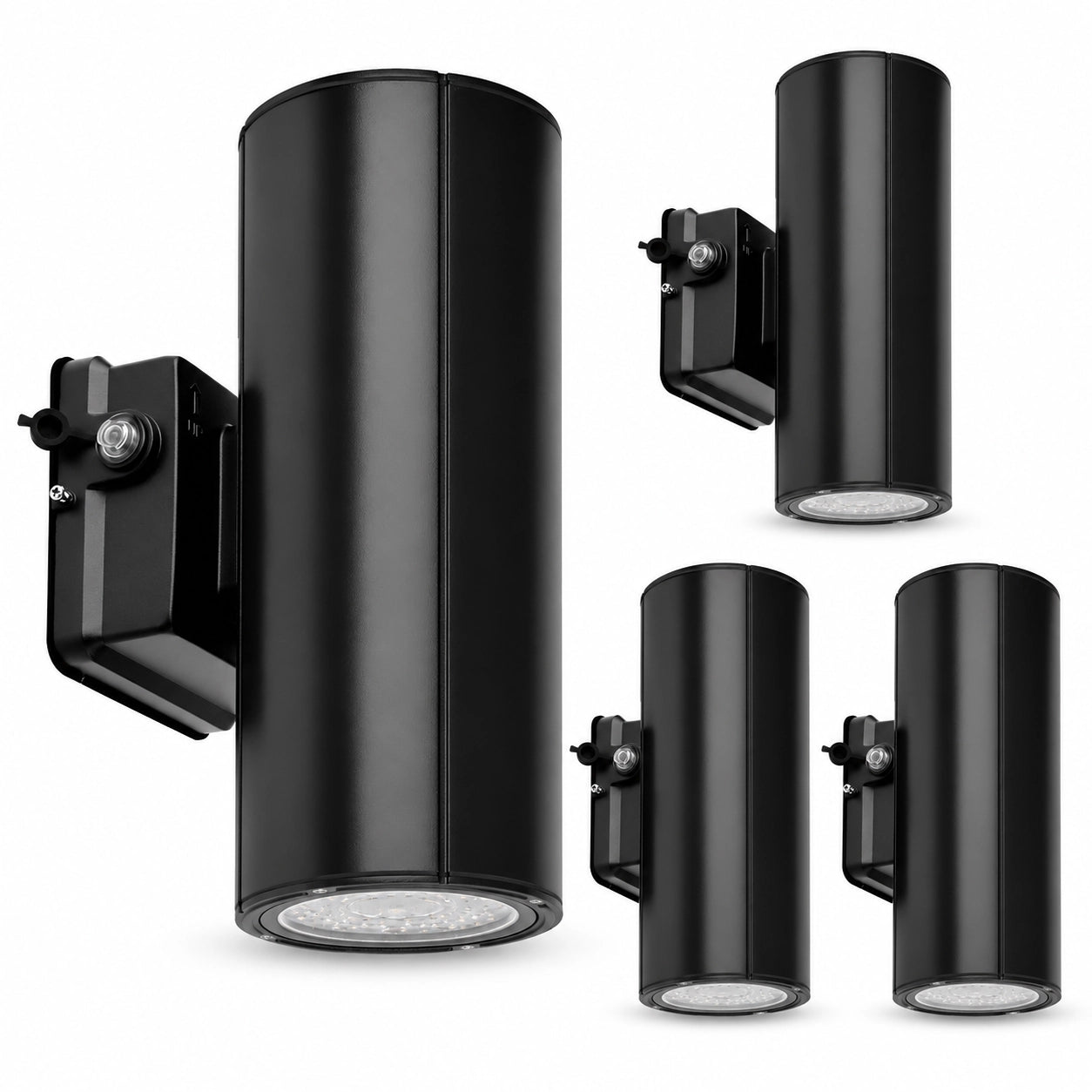

| Package Quantity | 4 Fixtures |
| Selectable Wattage | 20W / 16W / 10W per fixture; 20W default |
| Nominal Light Output | 2,400 lumens per fixture |
| Tested Full-Light Output at 20W | 2,581-2,814 lumens, depending on selected CCT |
| Selectable CCT | 3000K / 4000K / 5000K; 5000K default |
| Input Voltage | 120-277VAC, 50/60Hz |
| Lighting Direction | Up / Full / Down selectable; Full default |
| Beam Distribution | Narrow / Wide selectable |
| Photocell | Standard photocell with removable sunshade cover |
| External Dimming | Not available; internal control wires are occupied by fixture selection functions |
| Dimensions | 7.09"H × 5.63"W × 11.81"D; light aperture Ø4.62" |

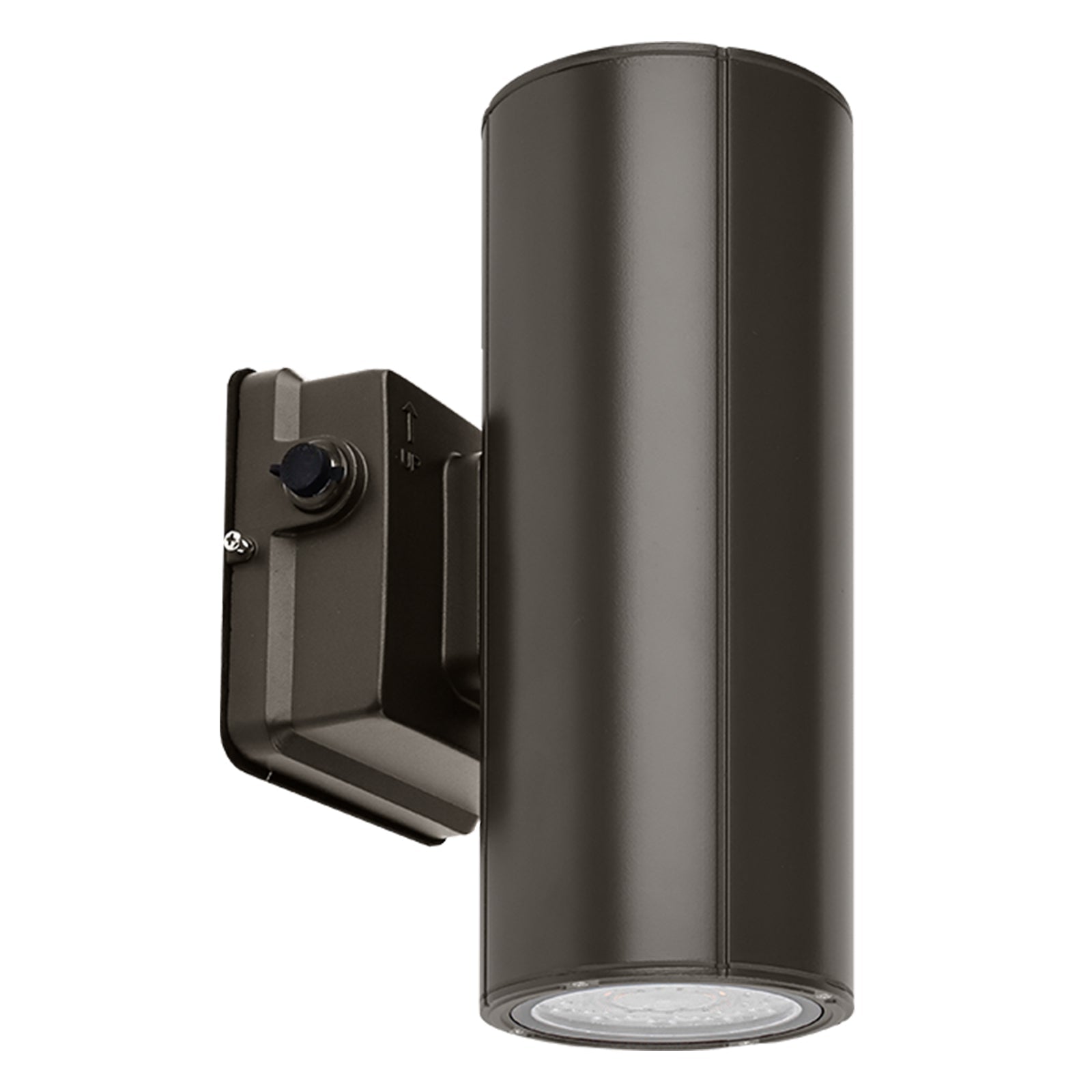

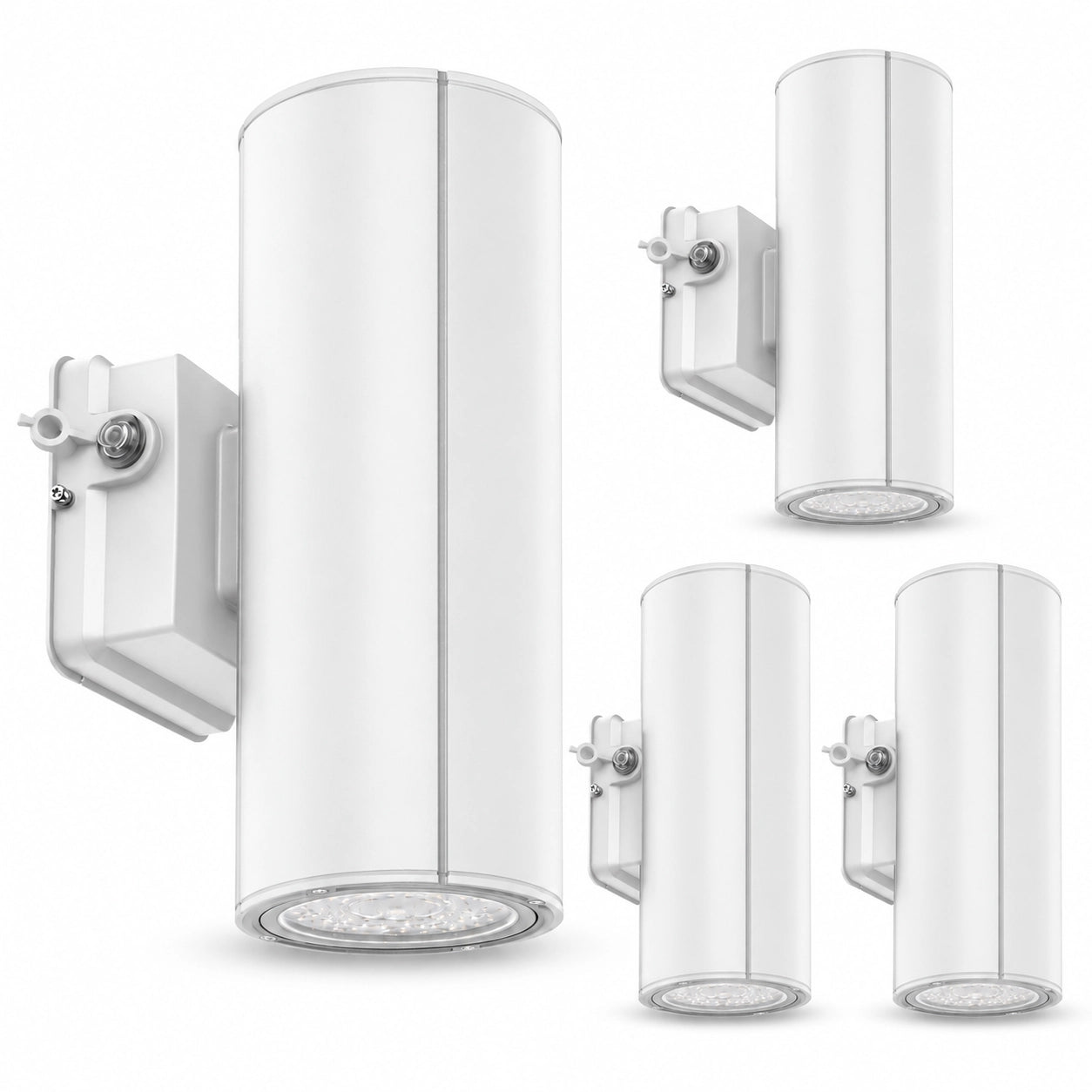

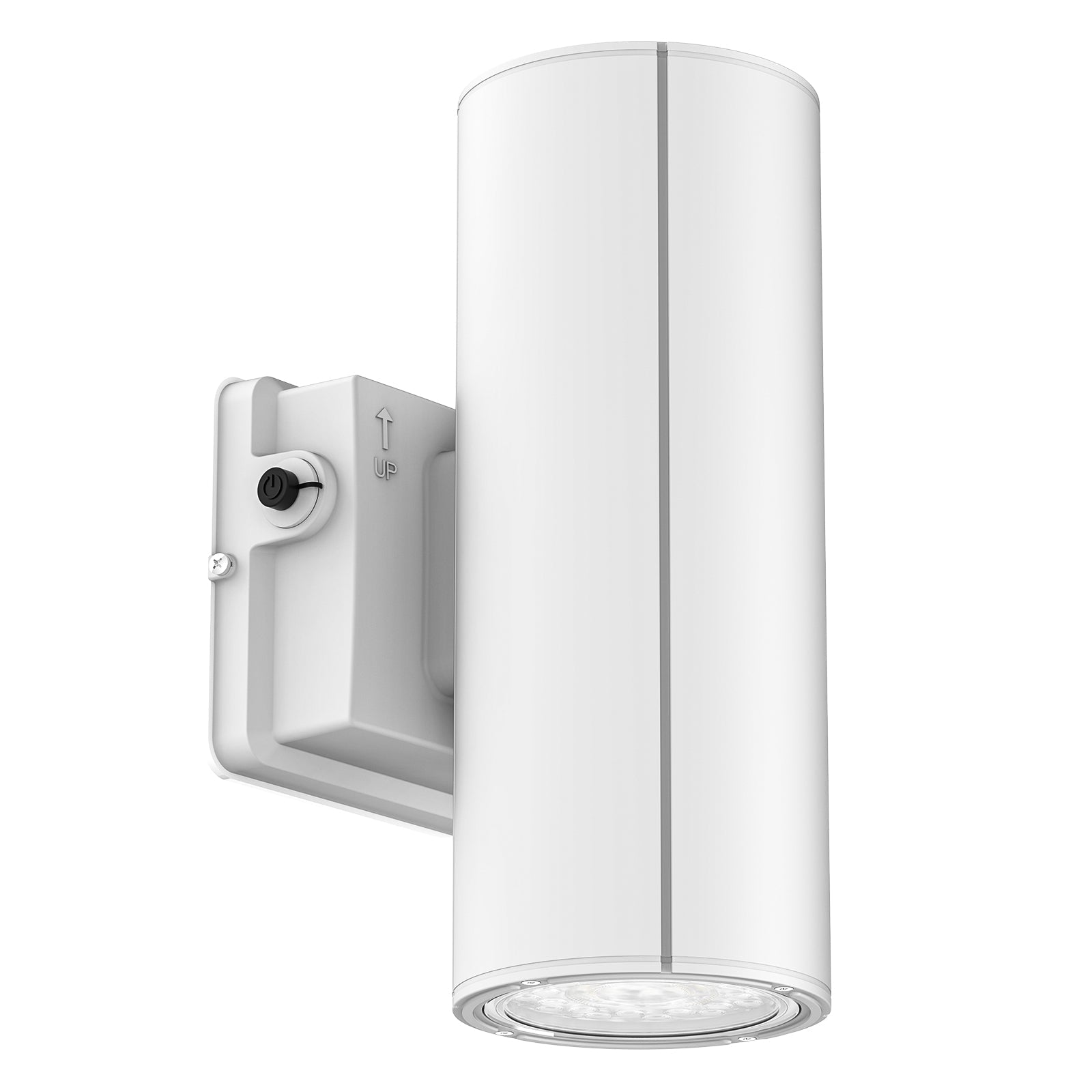

| Housing / Finish | Heavy-gauge aluminum; Dark Bronze, Black or White |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Compliance | cULus Listed for Wet Locations |
| Warranty | 5-year limited warranty |
Recommended Applications
Commercial façades, entrances, covered walkways, apartment exteriors, hotels, restaurants, offices, patios, conference areas and other indoor or outdoor wall-mounted applications.

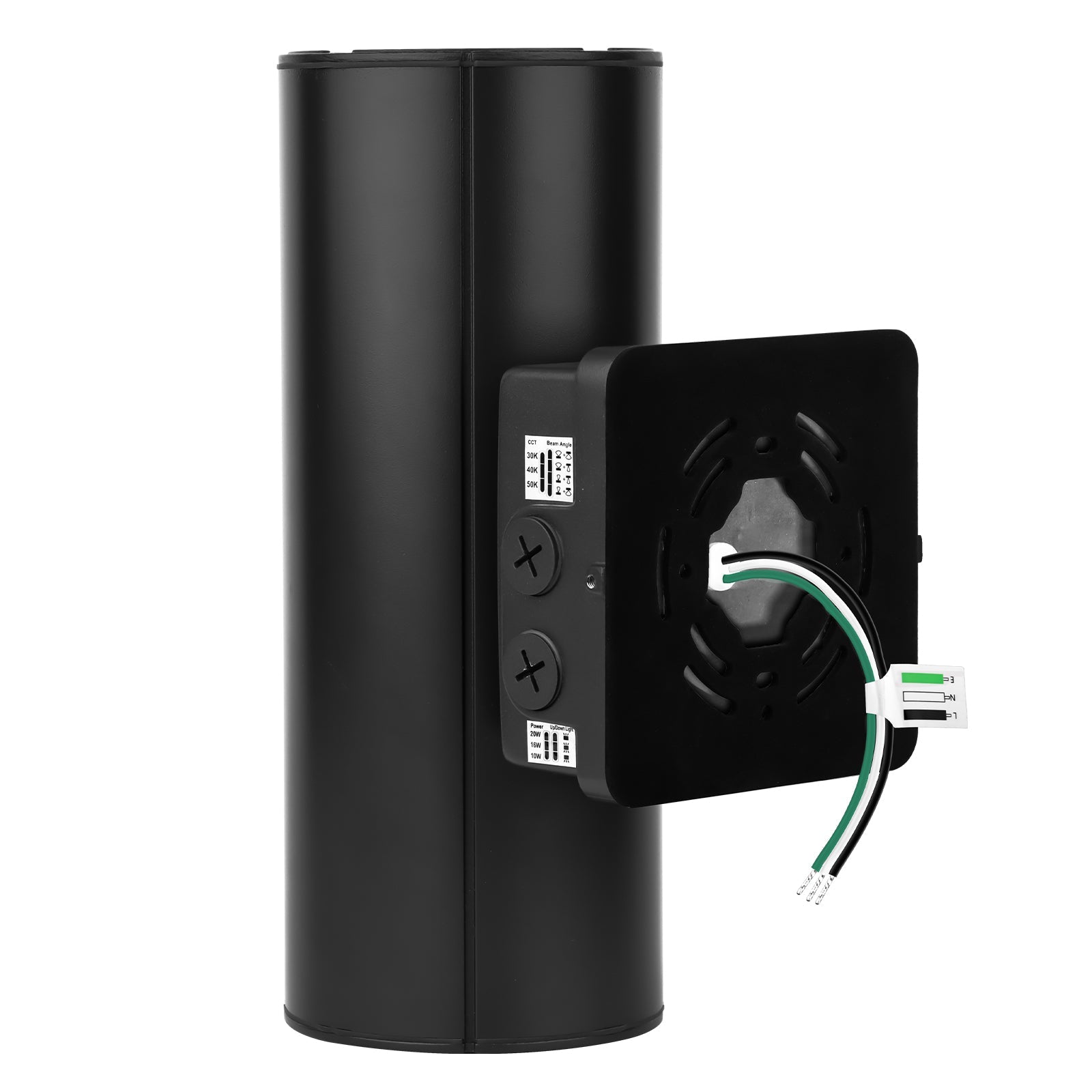

Installation note: Select wattage, CCT, beam and direction before energizing the fixture. Installation should be completed by a qualified electrician in accordance with applicable electrical codes.
Compact Size, Highly Configurable Output
A flexible four-pack solution for architectural wall-lighting projects.
