Description
✔ 2x2 LED Grid Frame Light | Selectable Wattage: 40W/30W/20W | 5 CCT Options | 0–10V Dimmable | ETL & DLC Premium | IP40

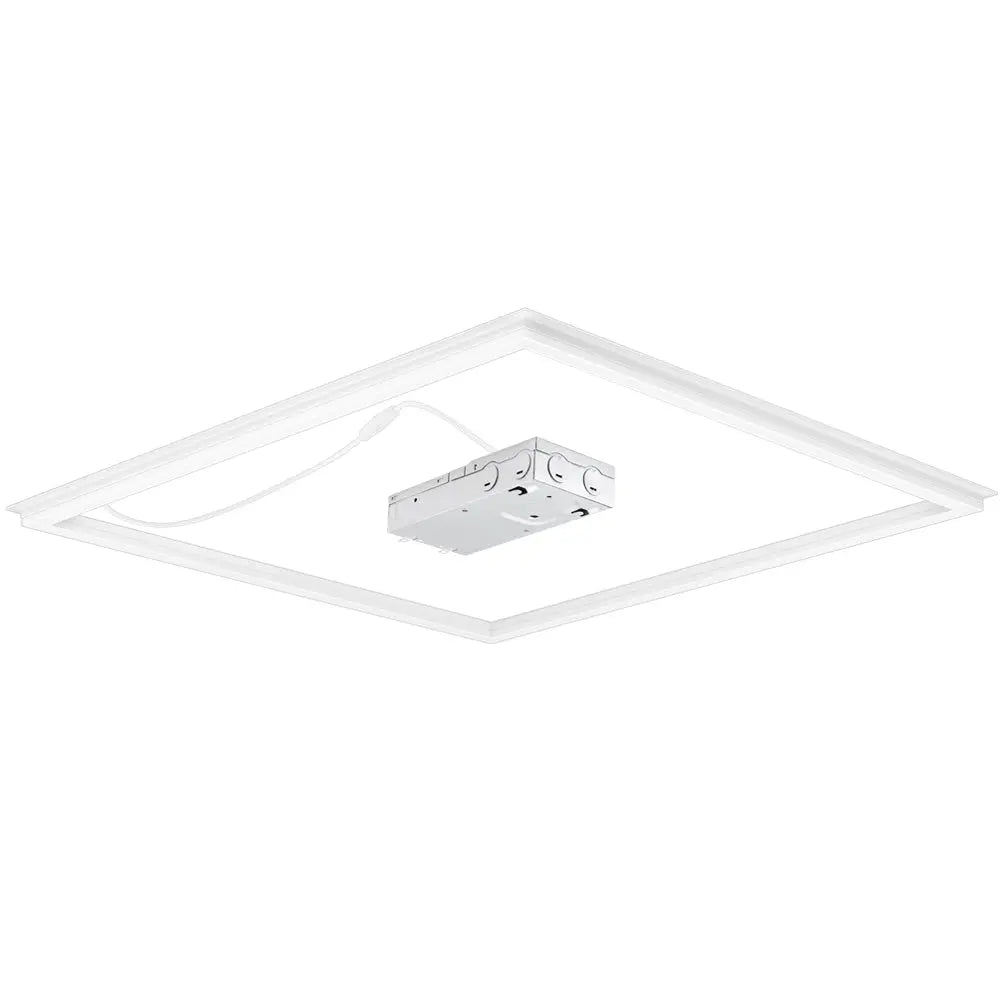

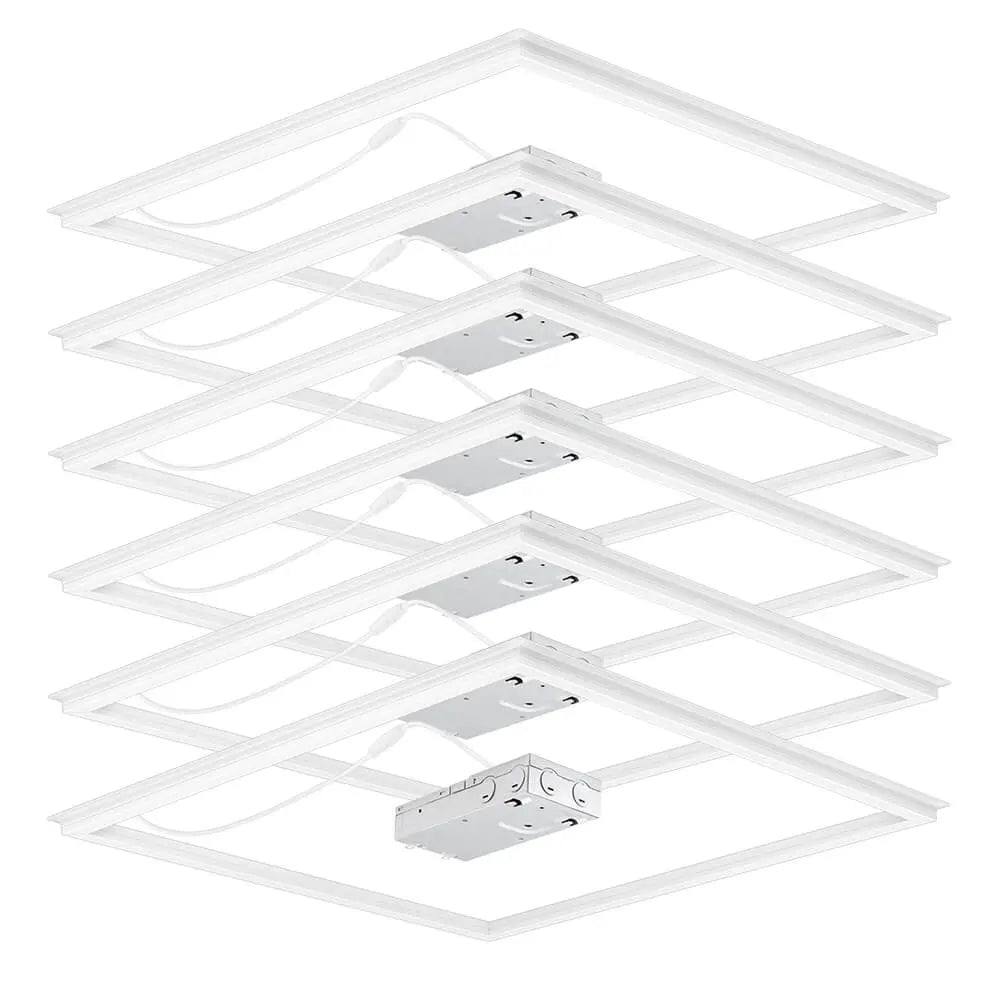

2x2 LED Grid Frame Light – Flexible Commercial Lighting
TANLITE 2x2 LED Grid Frame Light is a versatile solution for standard T-Bar ceilings, offering selectable wattage and multiple color temperatures to meet your lighting needs. Ideal for offices, classrooms, hospitals, conference rooms, and commercial facilities.
Selectable Wattage (Switchable)
Choose the desired brightness for your space:
- 40W: 5,025 lumens (5000K)
- 30W: 3,840 lumens (5000K)
- 20W: 2,600 lumens (5000K)
- Adjustable to fit ceiling height and room size
Five Color Temperature Options
Easily adjust the light appearance to match the space or preference:
- 3000K – Warm White
- 3500K – Neutral White
- 4000K – Cool White
- 5000K – Daylight
- 6500K – True White
Recessed T-Bar Installation
Designed for standard 2x2 T-Bar ceilings, this fixture installs quickly and securely, providing uniform illumination with clean aesthetics.
- Standard T-Bar ceiling grid compatible
- Flush, professional installation
- Uniform light distribution across workspace
0–10V Dimmable
Adjust brightness for energy savings and optimal lighting control in offices, classrooms, or industrial spaces.
- Full dimming control with compatible drivers
- Flexible brightness adjustment for occupant comfort
- Compatible with building management systems
Durable & Certified
- IP40 rated – protection against dust intrusion
- ETL Listed & DLC Premium Qualified – safety, performance, and rebate eligibility
- High-quality construction for long-term reliability
- Energy-efficient LED technology for reduced electricity usage
5-Year Manufacturer’s Warranty
TANLITE provides a 5-year warranty for peace of mind and long-term performance support.
Applications
- Office lighting
- Classrooms & educational facilities
- Hospitals & medical facilities
- Conference & meeting rooms
- Commercial buildings
- Retail spaces
- Libraries & laboratories
- Suspended T-Bar ceiling installations
Key Features
- Selectable Wattage: 40W / 30W / 20W for flexible brightness
- 5 Color Temperatures: 3000K / 3500K / 4000K / 5000K / 6500K
- Recessed T-Bar Installation: Easy integration into standard ceiling grids
- 0–10V Dimmable: Full dimming control for energy savings
- IP40 Rated: Dust protection for indoor use
- ETL & DLC Premium: Qualified for safety and rebate programs
- 5-Year Warranty: Long-term manufacturer support
Specifications
| Product Type | LED Grid Frame Light |
| Size | 2x2 ft |
| Wattage | Selectable 20W / 30W / 40W |
| Lumens | 20W = 2,600 / 30W = 3,840 / 40W = 5,025 LM |
| Color Temperature | 3000K / 3500K / 4000K / 5000K / 6500K |
| Installation | Recessed T-Bar Ceiling |
| Dimming | 0–10V Dimmable |
| IP Rating | IP40 |
| Certification | ETL Listed & DLC Premium |
| Warranty | 5 Years |
Commercial LED Troffer Solution
The TANLITE 2x2 LED Grid Frame Light provides a flexible, energy-efficient retrofit or new installation solution for offices, classrooms, hospitals, and commercial buildings. With selectable wattage, multiple CCT options, and 0–10V dimming, it delivers uniform, high-quality illumination while reducing energy and maintenance costs.
