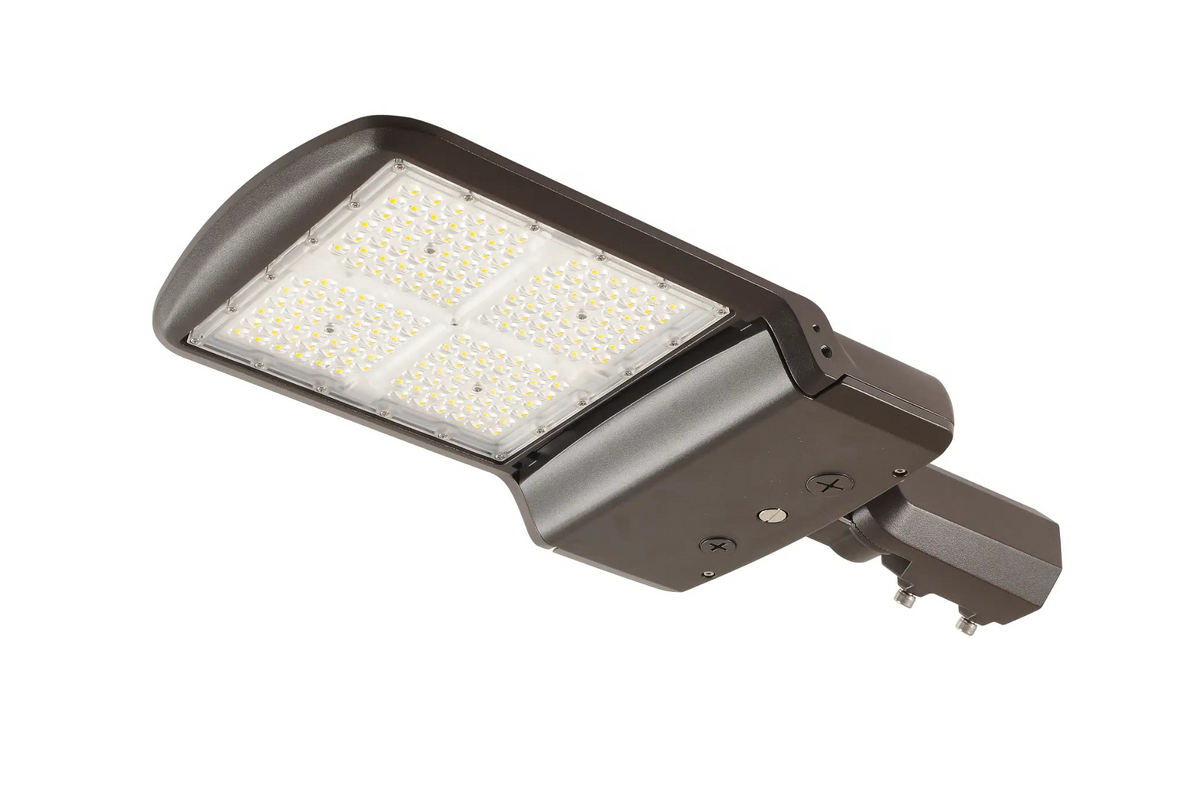

Dark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with slip fitter mount
Selectable 300W 240W 200W LED parking lot light shown against a commercial parking lot lighting scene
Slip fitter LED parking lot light wattage settings: 300W 42,000 lm, 240W 33,600 lm and 200W 28,000 lm

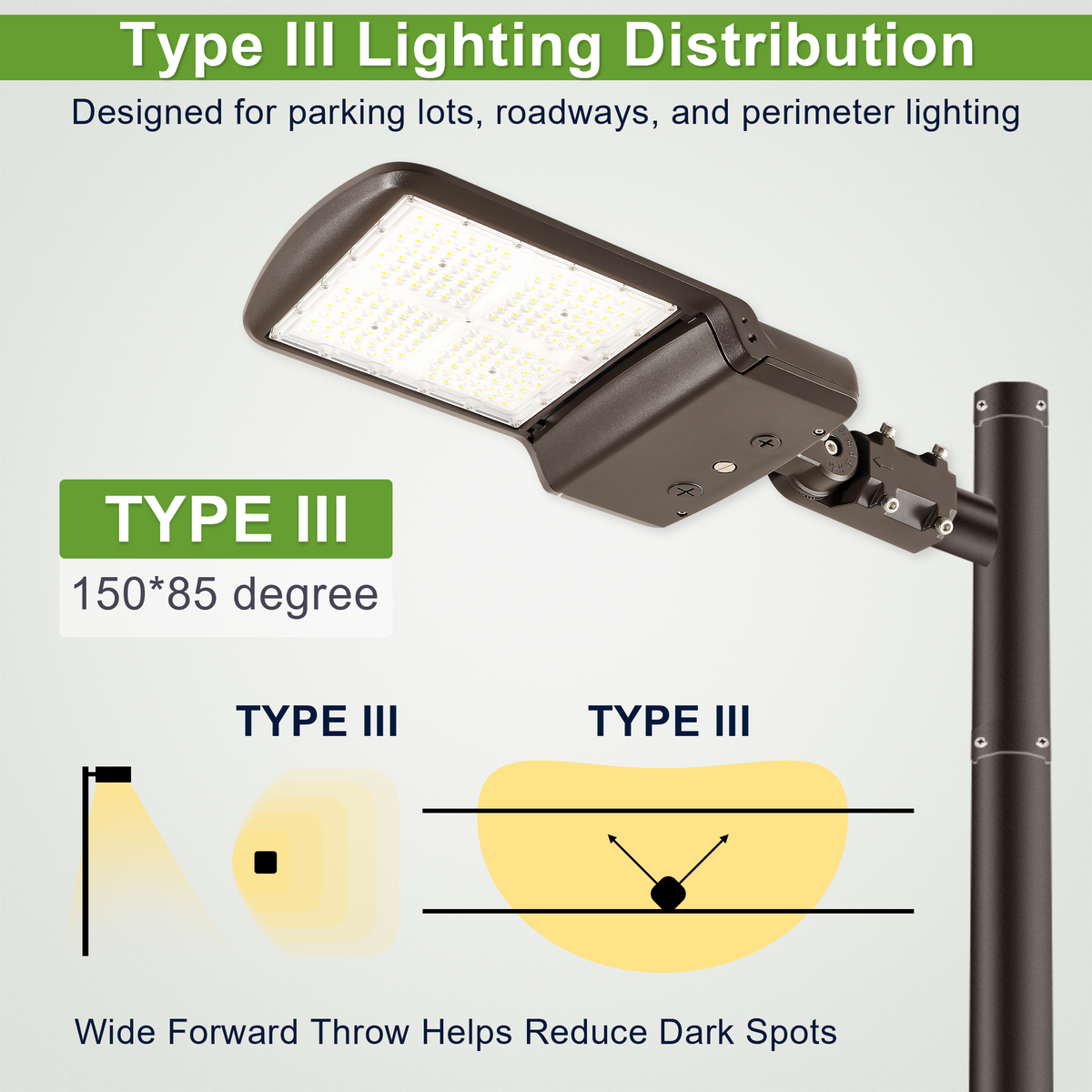

Slip fitter LED parking lot light with Type III distribution diagram for parking lots and roadways

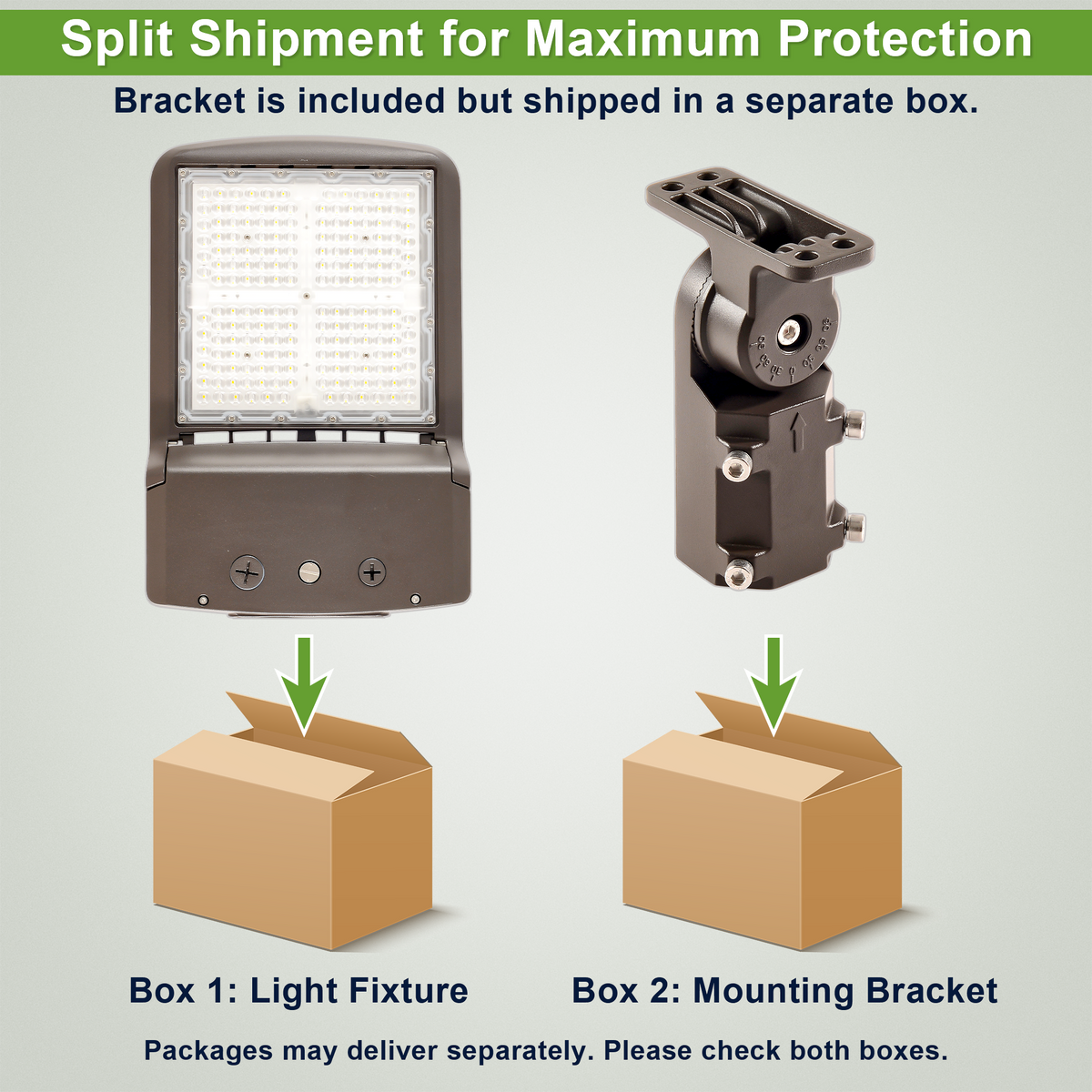

LED parking lot light and included slip fitter bracket shown as separate shipments

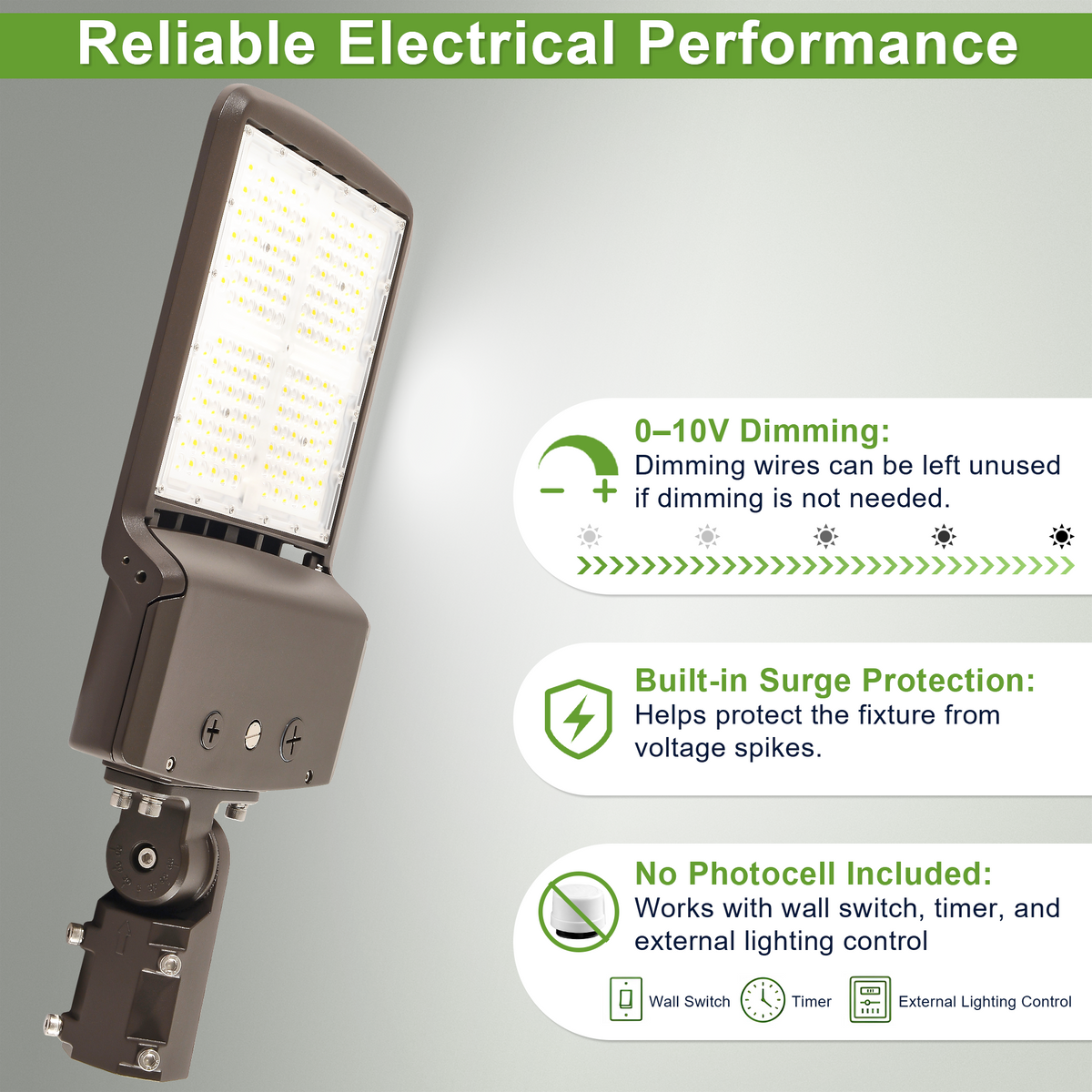

Slip fitter LED parking lot light showing 0–10V dimming, surge protection and external control options; no photocell included

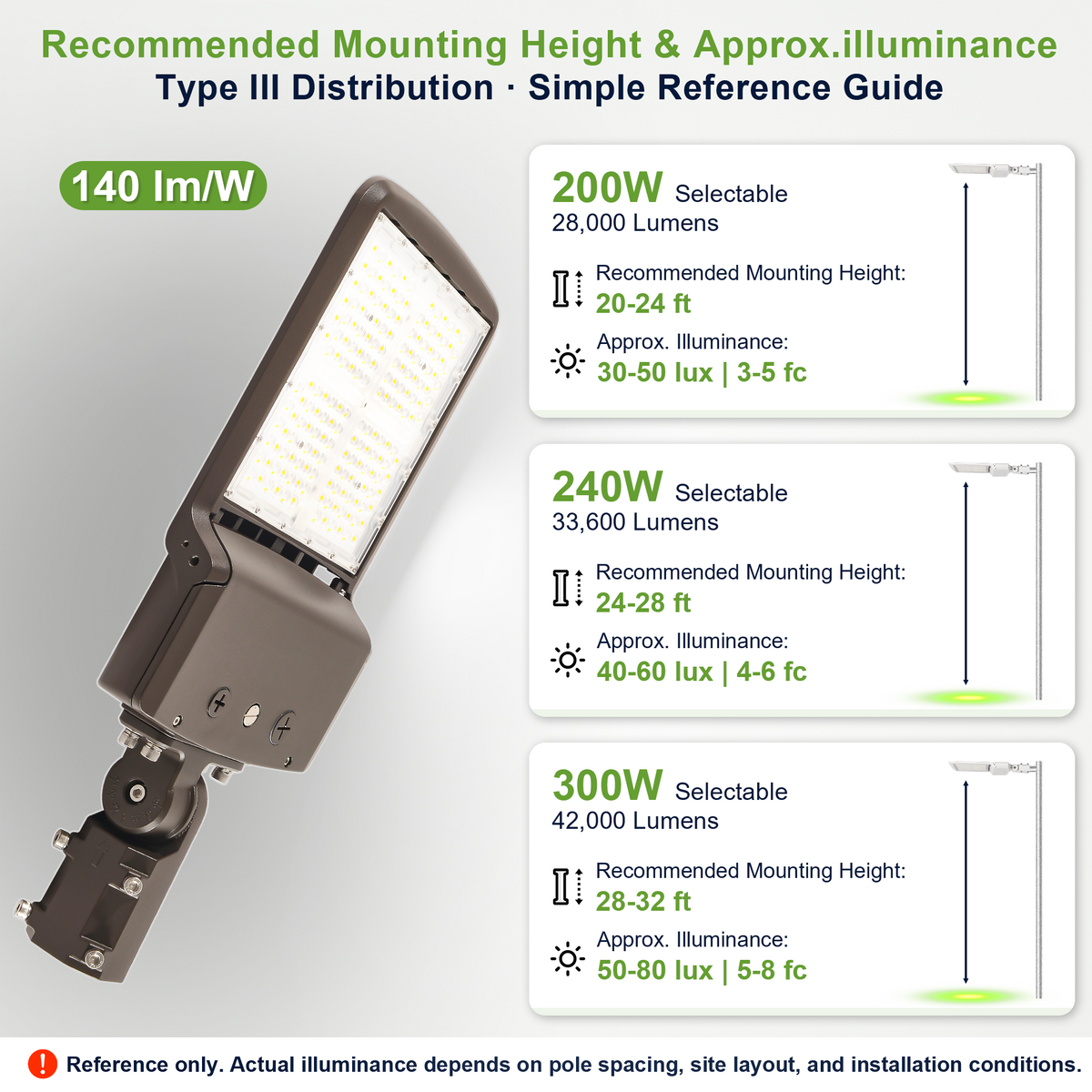

Selectable LED parking lot light reference guide comparing mounting heights and approximate illuminance at 200W, 240W and 300W
LED parking lot light slip fitter bracket showing round pole fit and adjustable aiming at 0, 45 and 90 degrees

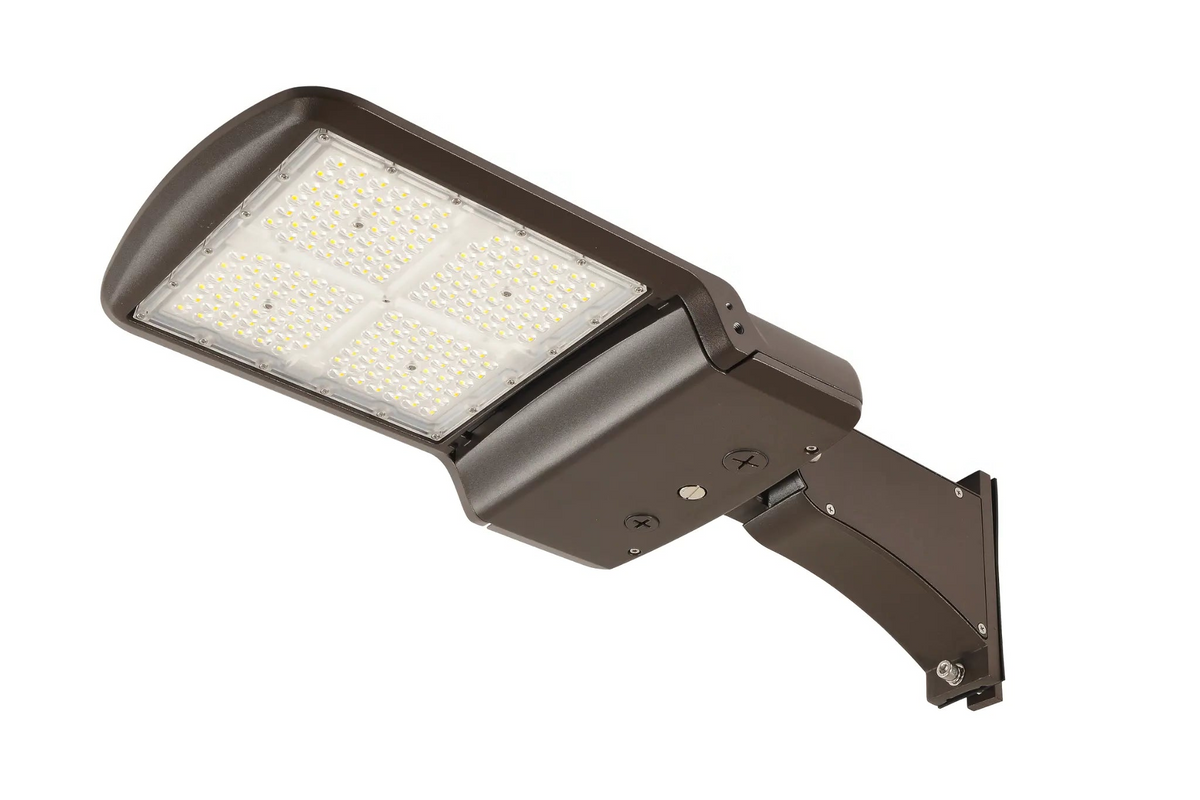

Dark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with direct arm mount
Direct arm LED parking lot light showing selectable 300W, 240W and 200W output with wattage switch detail
Direct arm LED parking lot light on a square pole with Type III forward light distribution diagram
Direct arm LED parking lot light showing 0–10V dimming, surge protection and external controls; no photocell included
Adjustable direct arm mounting bracket for LED parking lot light shown on round and square poles
LED parking lot fixture and included direct arm bracket packed in separate boxes that may arrive separately

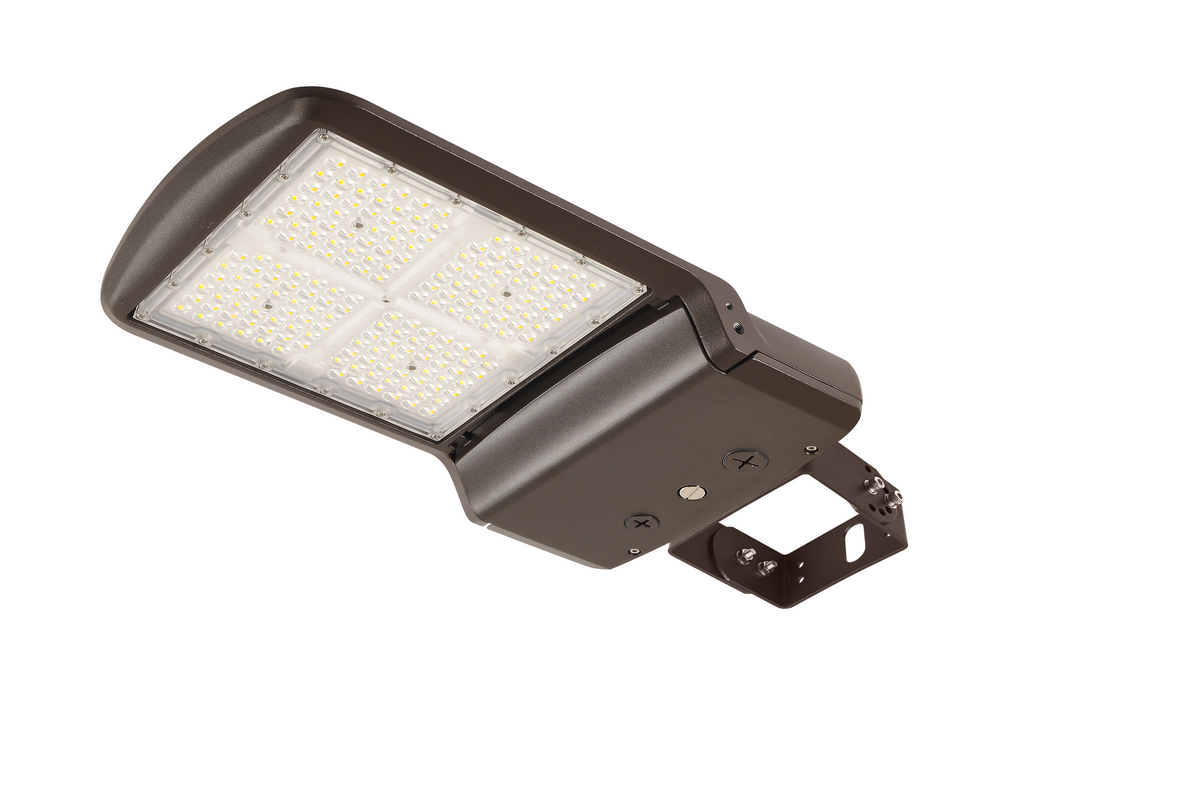

Dark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with adjustable yoke bracket
Roll over image to zoom in Click on image to zoom
Dark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with slip fitter mountSelectable 300W 240W 200W LED parking lot light shown against a commercial parking lot lighting sceneSlip fitter LED parking lot light wattage settings: 300W 42,000 lm, 240W 33,600 lm and 200W 28,000 lmSlip fitter LED parking lot light with Type III distribution diagram for parking lots and roadwaysLED parking lot light and included slip fitter bracket shown as separate shipmentsSlip fitter LED parking lot light showing 0–10V dimming, surge protection and external control options; no photocell includedSelectable LED parking lot light reference guide comparing mounting heights and approximate illuminance at 200W, 240W and 300WLED parking lot light slip fitter bracket showing round pole fit and adjustable aiming at 0, 45 and 90 degreesDark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with direct arm mountDirect arm LED parking lot light showing selectable 300W, 240W and 200W output with wattage switch detailDirect arm LED parking lot light on a square pole with Type III forward light distribution diagramDirect arm LED parking lot light showing 0–10V dimming, surge protection and external controls; no photocell includedAdjustable direct arm mounting bracket for LED parking lot light shown on round and square polesLED parking lot fixture and included direct arm bracket packed in separate boxes that may arrive separatelyDark bronze 300W 240W 200W selectable LED parking lot light, 277–480V, with adjustable yoke bracket

300W/240W/200W Selectable LED Parking Lot Light, 277–480V, 5000K

TANLITESKU: TL-PL14-300W-480V-A
No reviews
Mounting Bracket: Slip Fitter Mount
Voltage: AC 277~480V
Price:
$190.98
Stock:
In stock (380 units), ready to be shipped

Same Day Shipping: if placed before 3:00 PM

Free shipping for all lights on our website. Feel free to contact us if you have any questions

  • Email: sales@tanlite.com
  • Phone/Text: (510) 556 0948

Description

300W/240W/200W Wattage Selectable | Up to 42,000 Lumens | 277–480V | 5000K | Type III | 0–10V Dimming

TANLITE High-Voltage Selectable LED Parking Lot Light

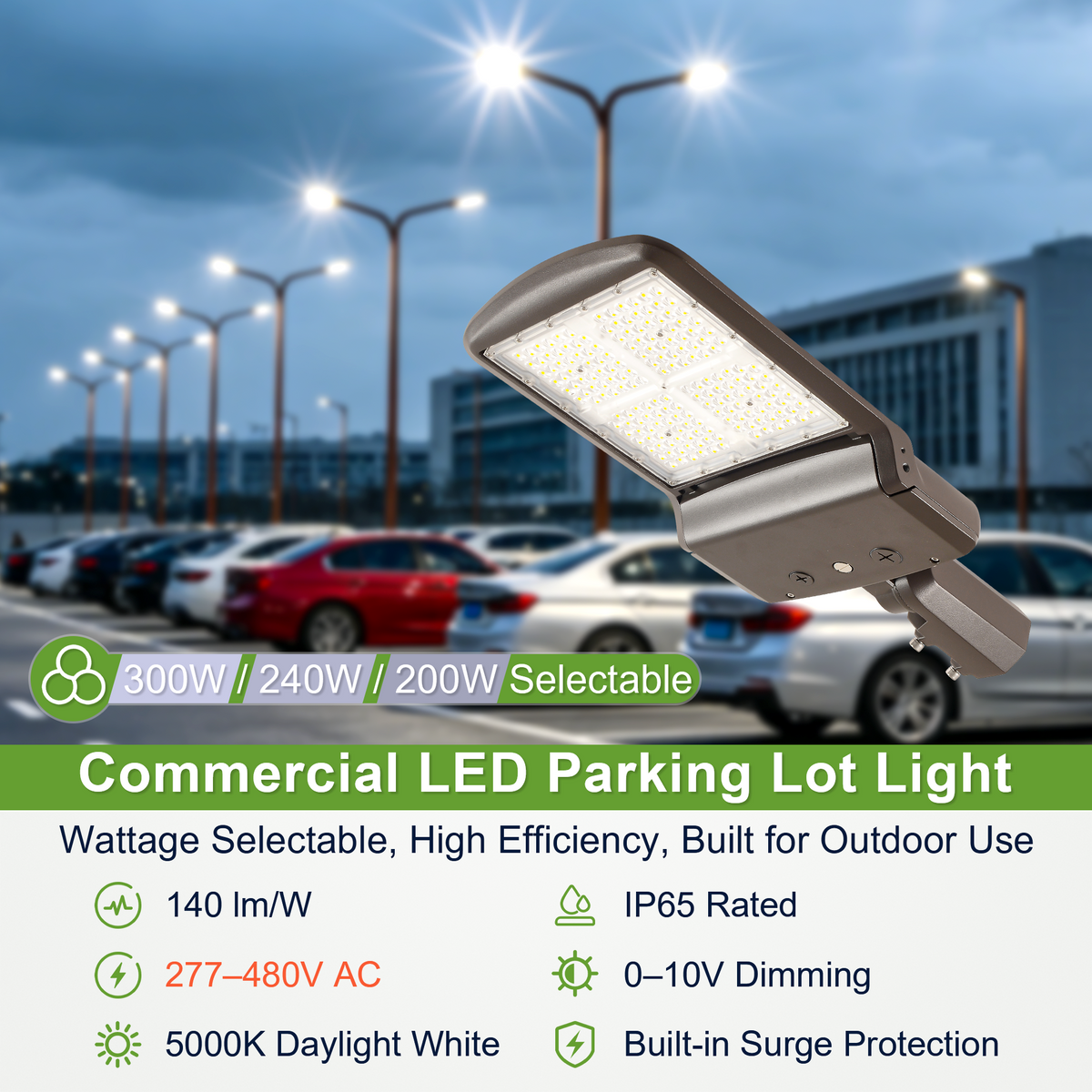

Designed for commercial parking lots, roadways, campuses, warehouses, auto dealerships and other large outdoor areas, this TANLITE LED parking lot light combines 277–480V operation with field-selectable 200W, 240W and 300W output. Type III distribution provides broad, uniform area illumination, while three mounting options support different poles and installation requirements.

Key Features

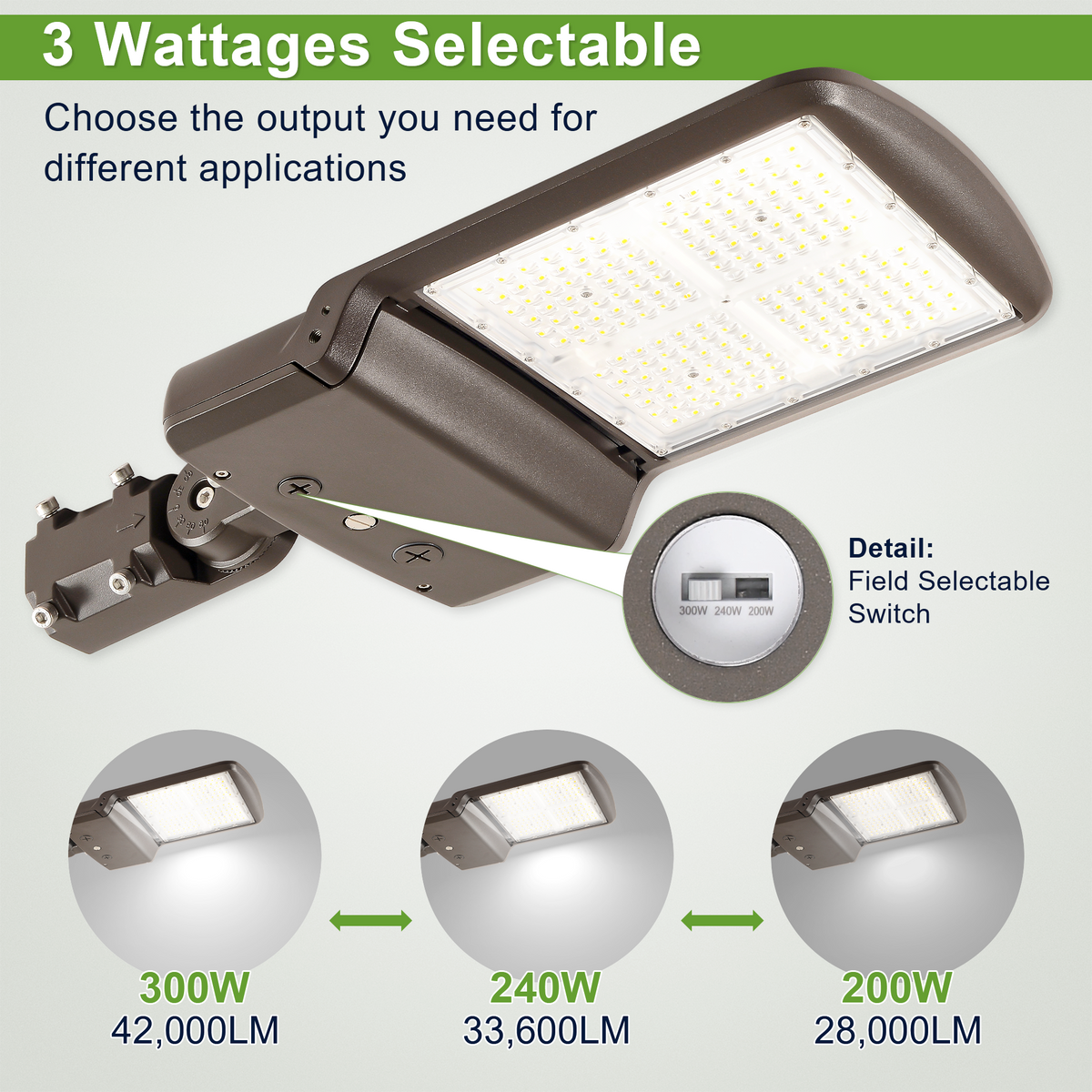

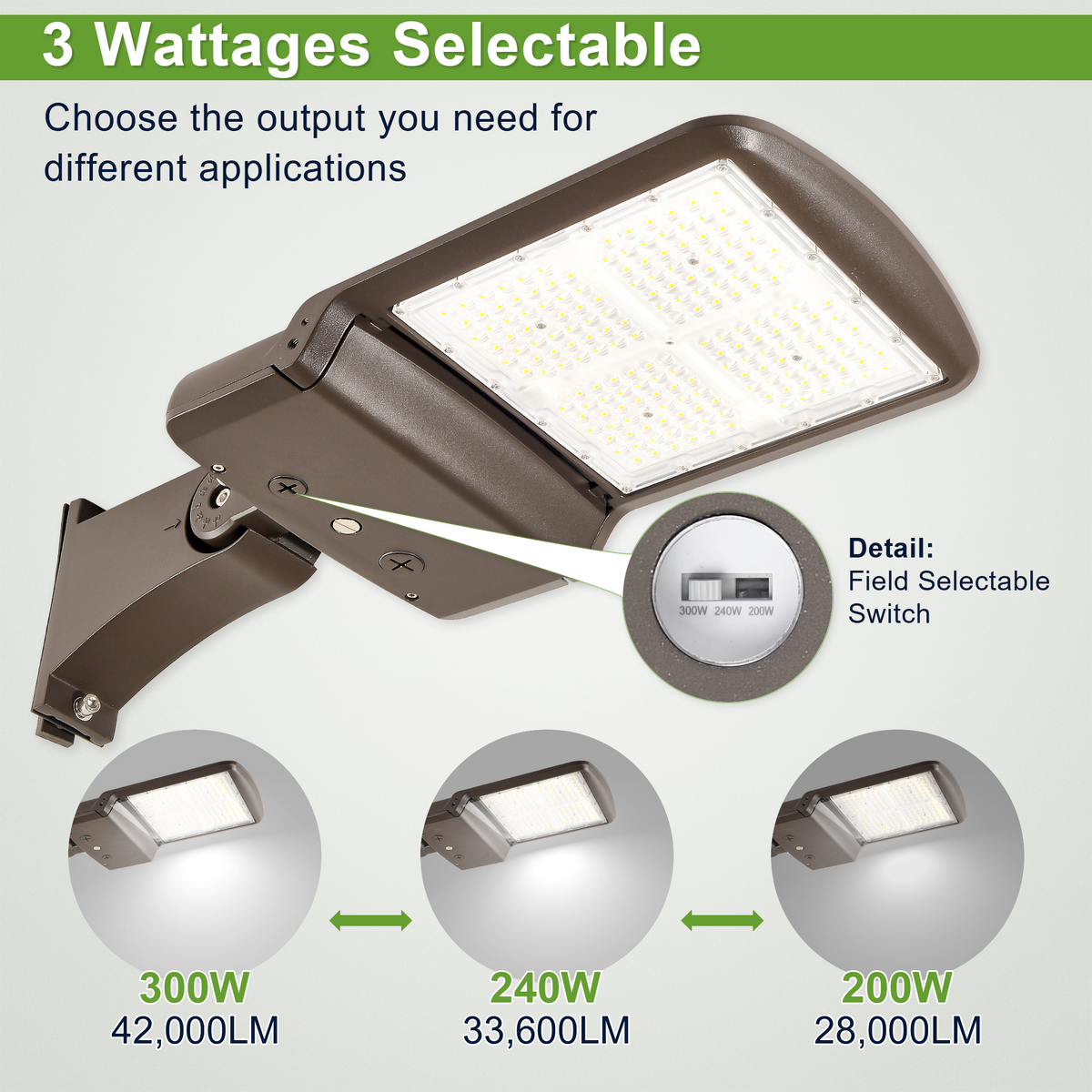

  • 3 Wattages Selectable: 200W / 240W / 300W
  • Light Output: 28,000 lm / 33,600 lm / 42,000 lm
  • Efficacy: 140 lm/W
  • Input Voltage: AC 277–480V
  • Color Temperature: 5000K daylight

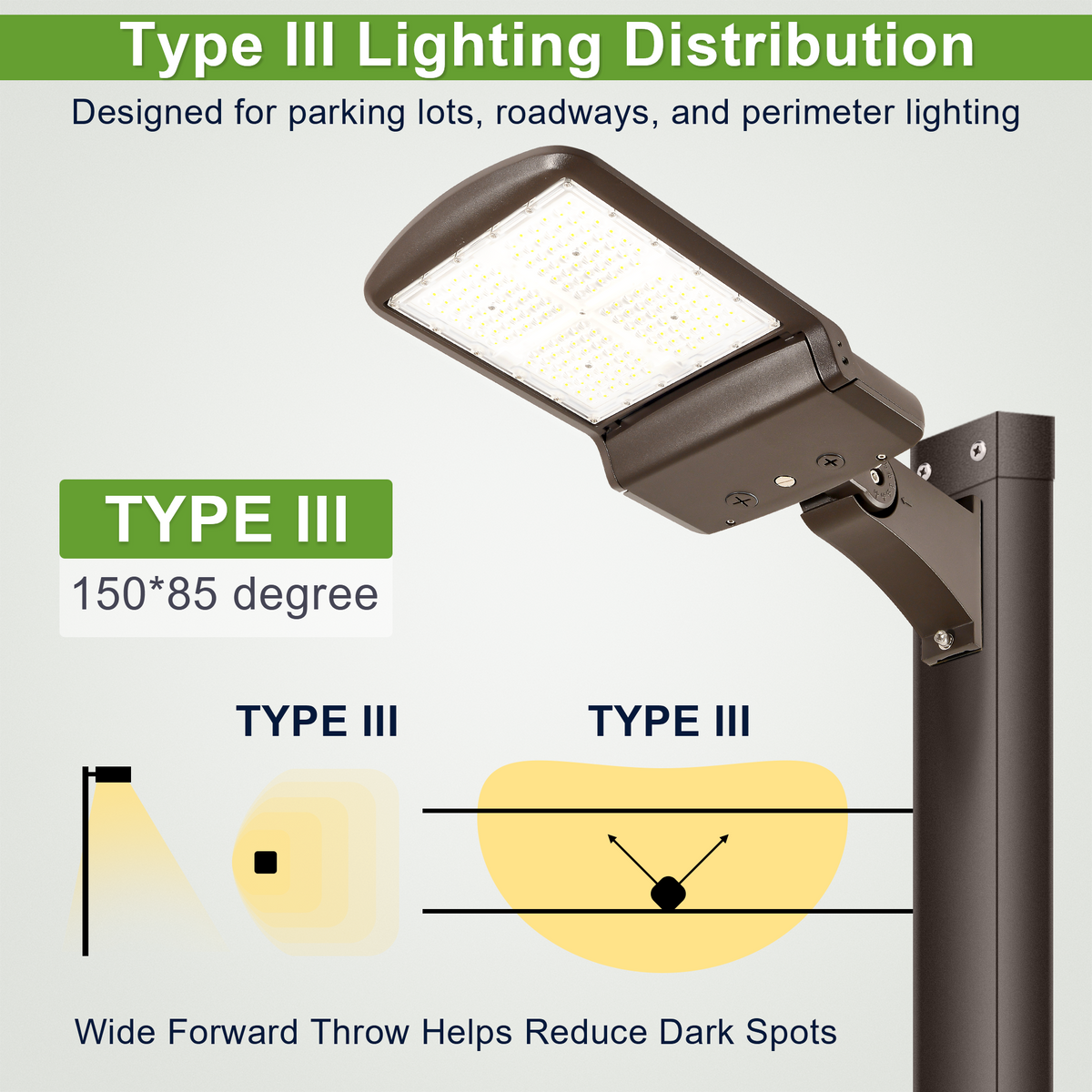

  • Light Distribution: Type III

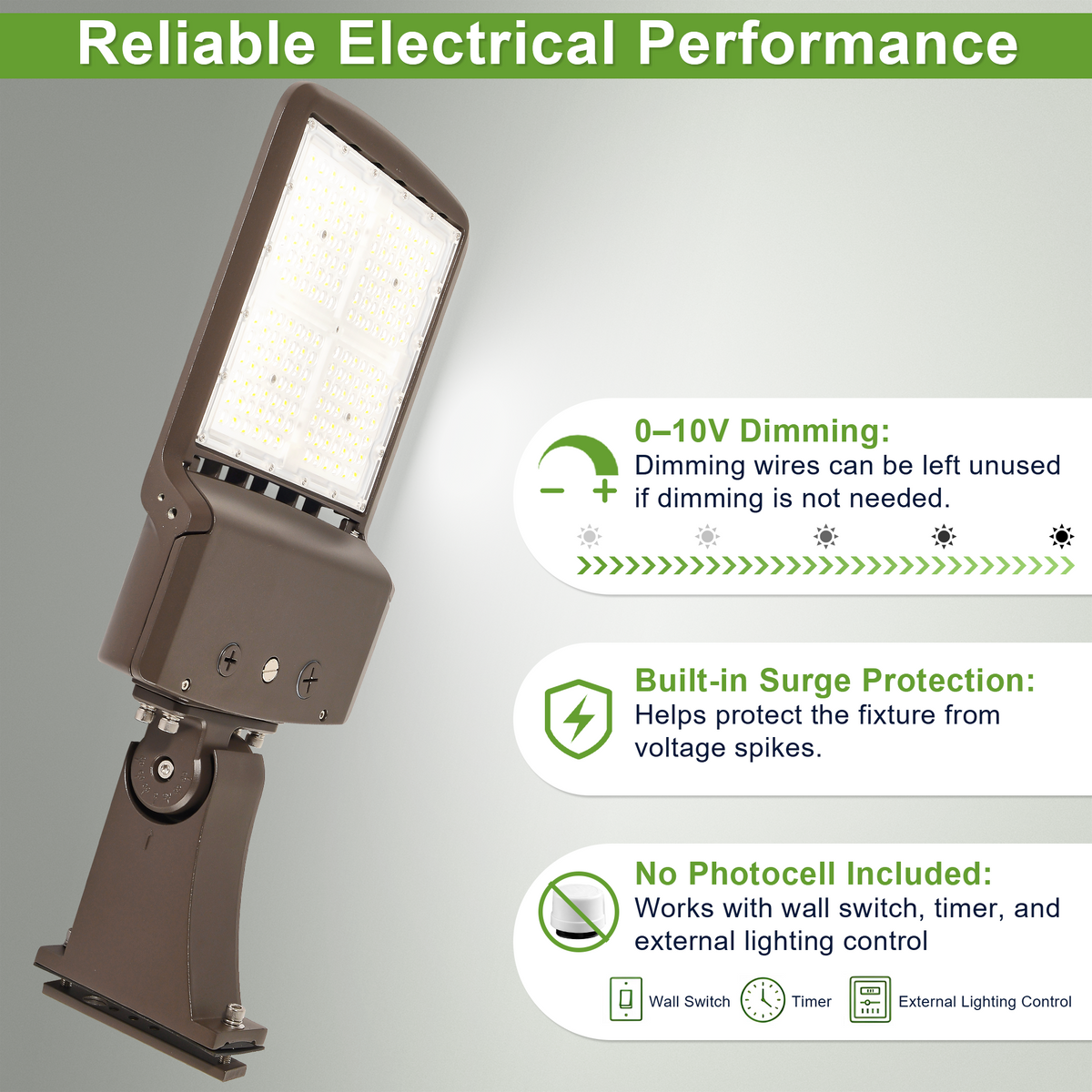

  • Dimming: 0–10V dimmable
  • CRI: >80
  • Housing: Heavy-duty die-cast aluminum alloy with dark bronze powder-coated finish
  • LED: High-brightness Lumileds LED chips with PC optical lens
  • Surge Protection: 6kV built-in plus 10kV external surge protection
  • Rated Life: 50,000 hours
  • Operating Temperature: -20°C to 45°C
  • Certification: UL / cUL
  • Warranty: 5-year limited warranty

Mounting Options

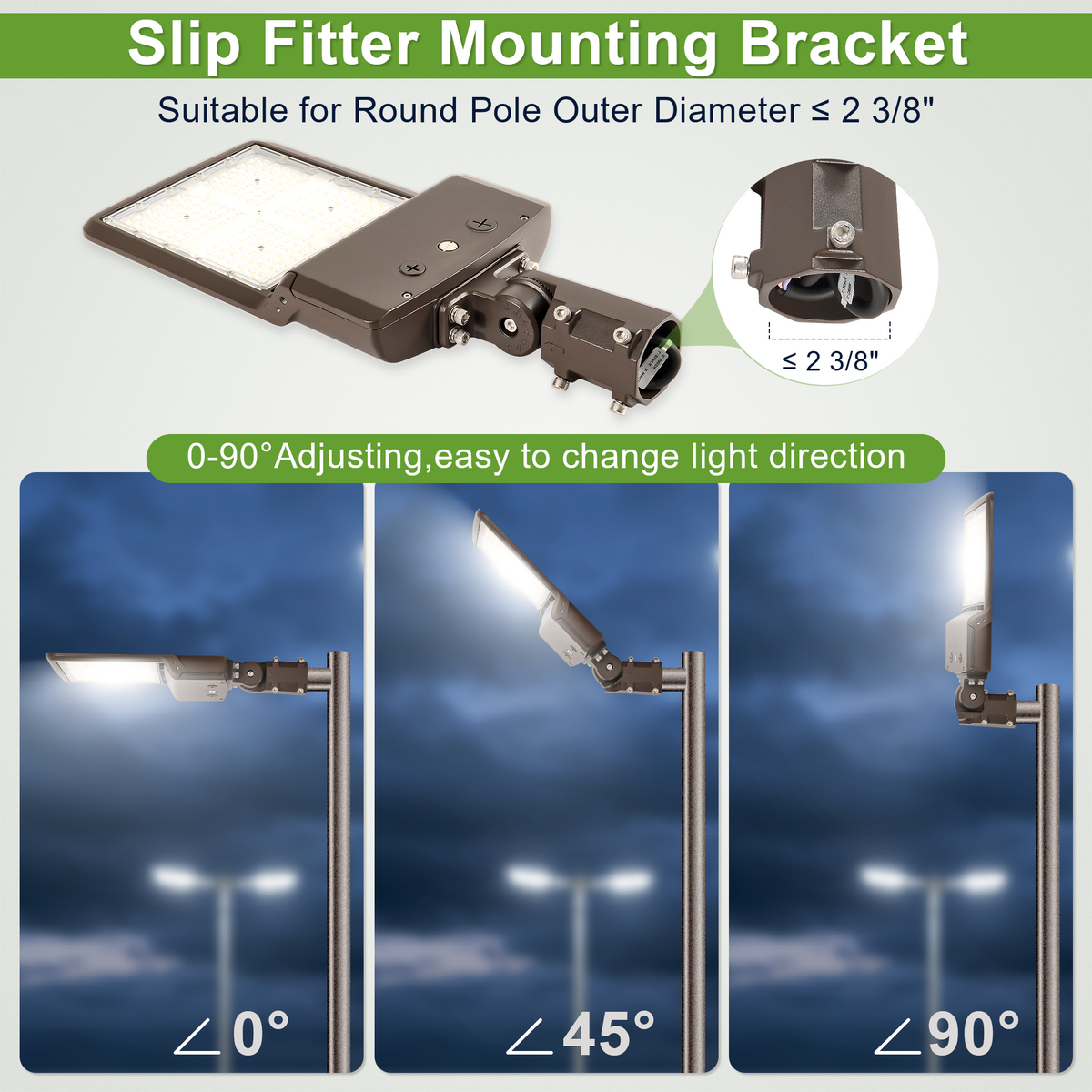

  • Slip Fitter Mount: adjustable from 0° to ±90°

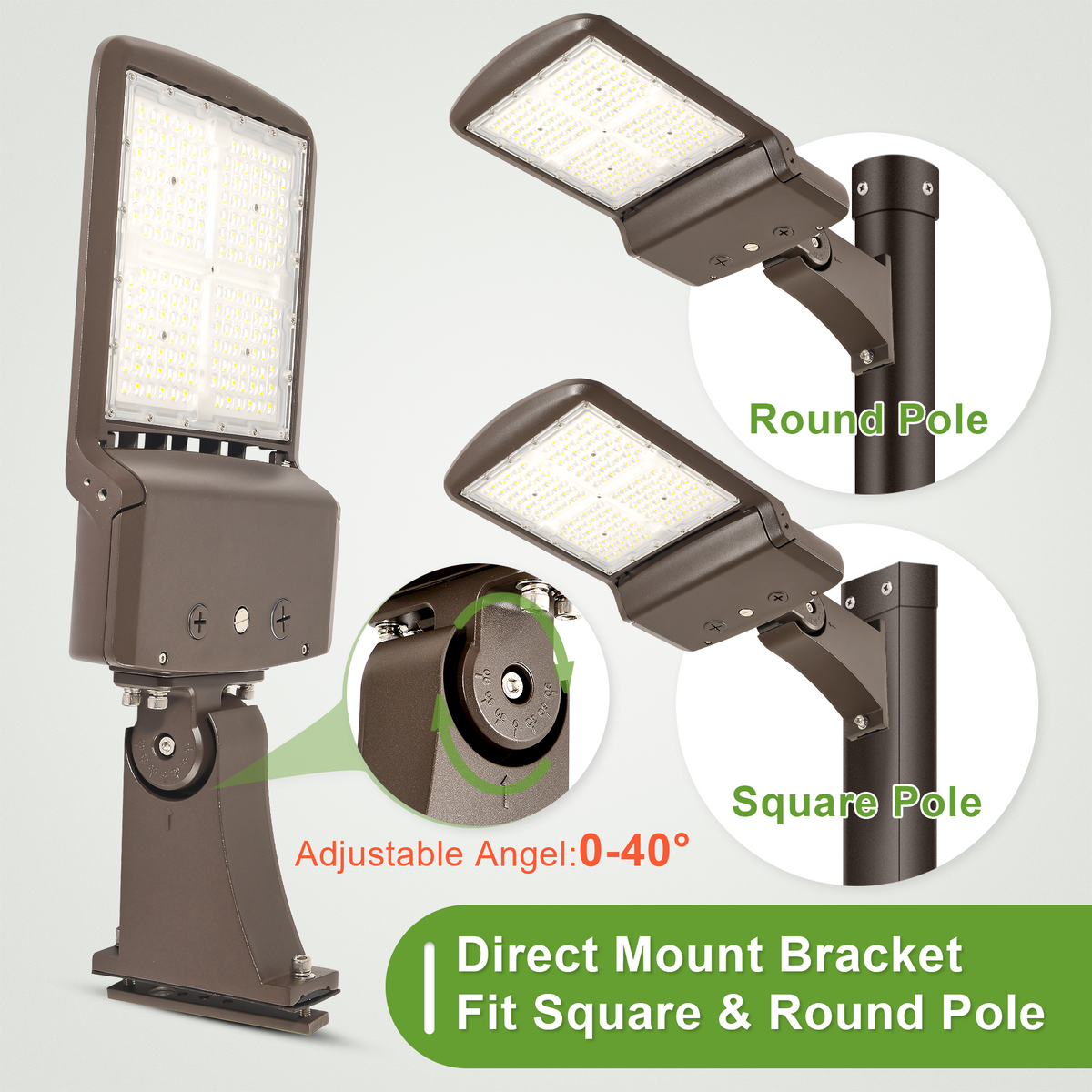

  • Direct Arm Mount: pole-mount solution with 0°–35° adjustment
  • Yoke Mount: adjustable 0°–90° for wall or structure mounting

Recommended Applications

Parking lots, roadways, warehouses, stadiums, factories, shopping centers, supermarkets, logistics centers, campuses and auto dealerships.

Specifications

Wattage 200W / 240W / 300W Selectable
Lumens 28,000 / 33,600 / 42,000 LM
Voltage 277–480V AC
CCT 5000K
Distribution Type III
Dimming 0–10V
Mounting Slip Fitter / Direct Arm / Yoke

Need help with a commercial lighting project?

TANLITE provides professional commercial lighting solutions and DIALux lighting layout support for qualifying projects.
