Description
✔ 30W | 4,050 Lumens | 5000K | Class I Division 1 | 0–10V Dimmable

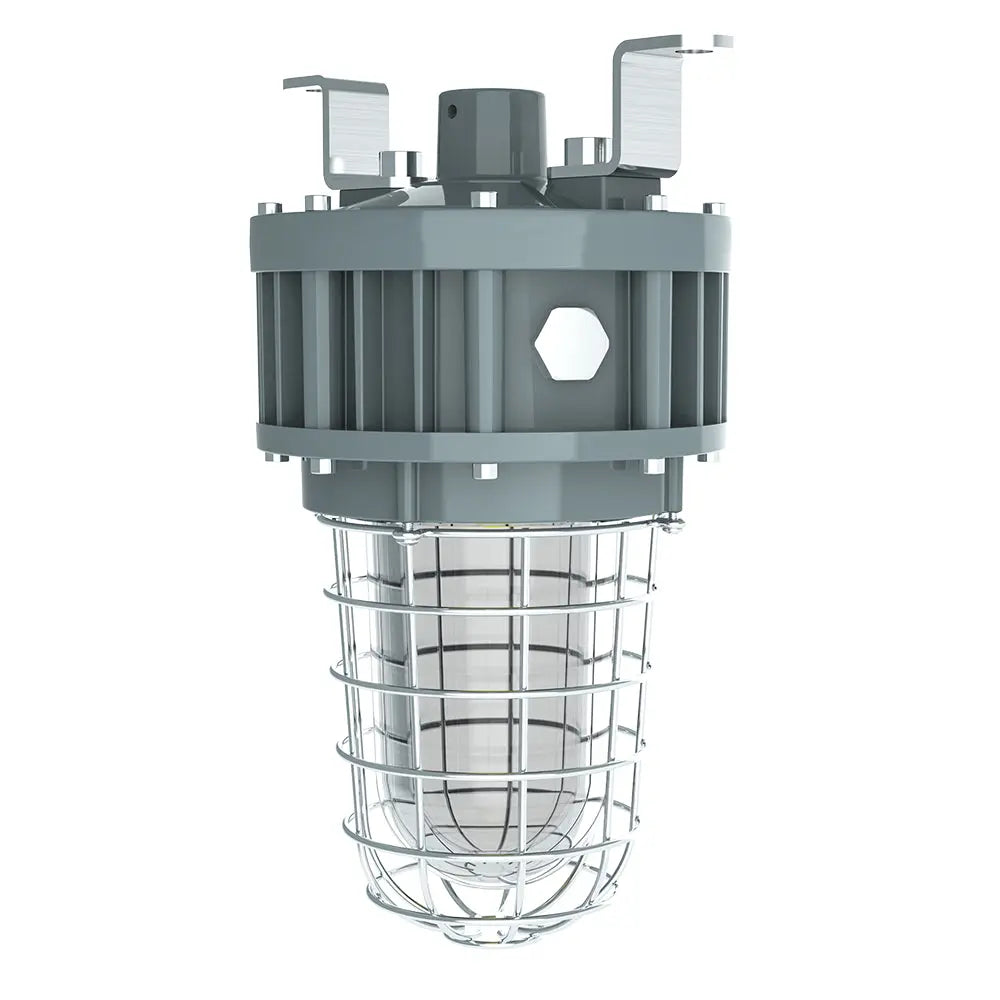

30W Explosion-Proof Jelly Jar Light – Hazardous-Location Lighting
The TANLITE 30W explosion-proof jelly jar light delivers 4,050 lumens of bright 5000K illumination for demanding hazardous environments. Its compact IP66-rated construction is designed for industrial areas where flammable gases, vapors, combustible dust, fibers, moisture or corrosion may be present.

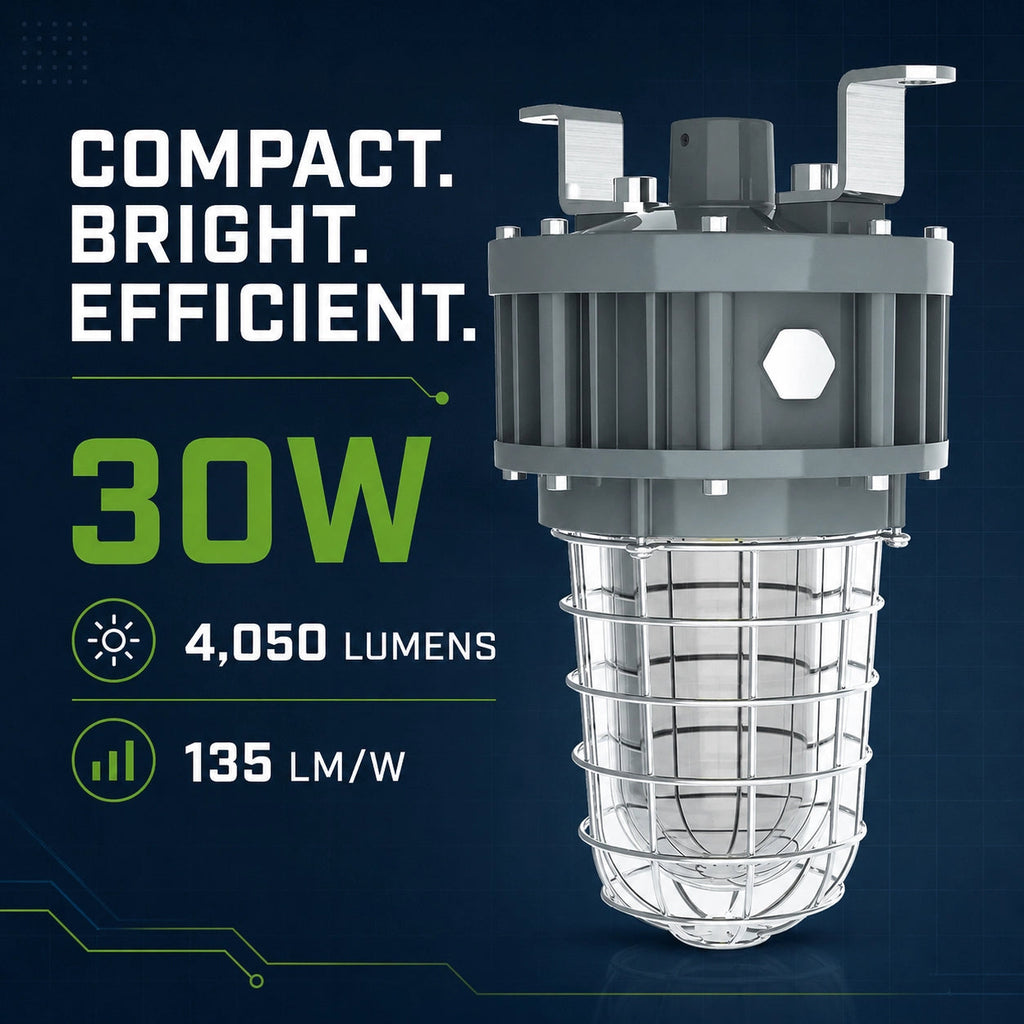

- 30W power with 4,050-lumen output
- High efficacy of 135 lumens per watt
- 5000K daylight for clear task visibility
- AC 100–277V universal input
- 0–10V dimmable lighting control

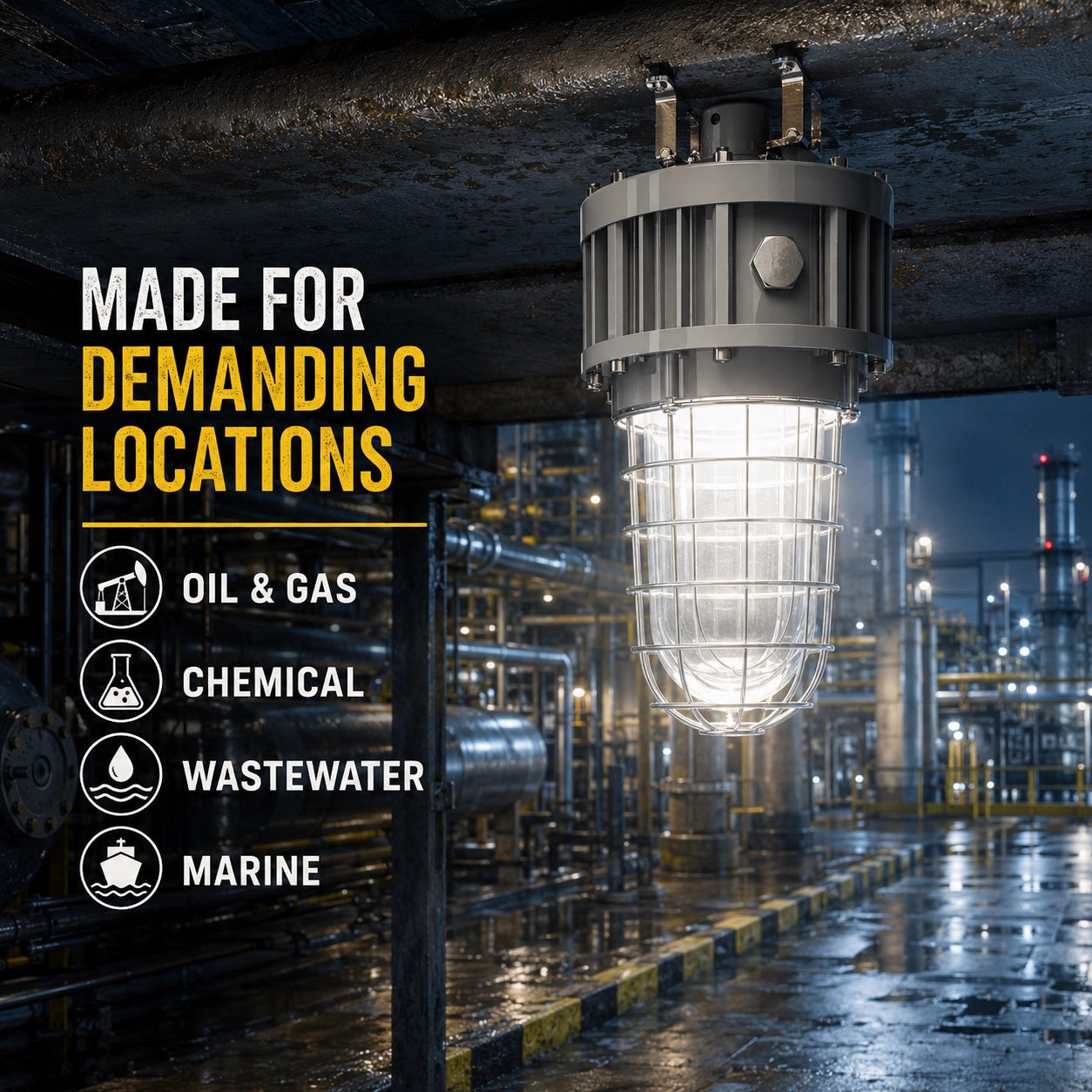

Designed for Hazardous Industrial Locations

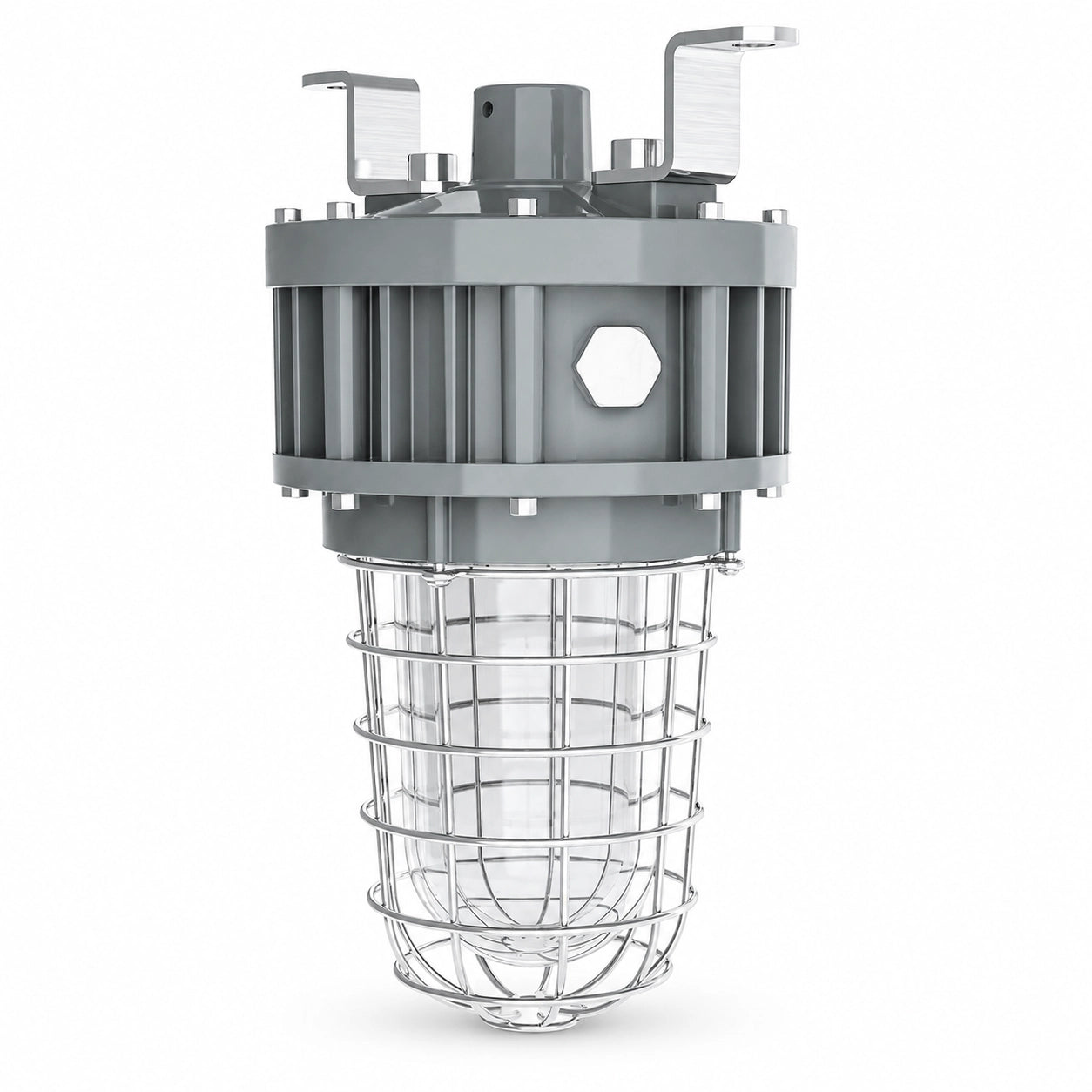

- Oil refineries and petrochemical plants
- Chemical processing facilities
- Power generation stations
- Grain handling and milling plants
- Paint storage and manufacturing areas
- Industrial warehouses and loading zones
- Wastewater treatment facilities
- Marine and offshore environments

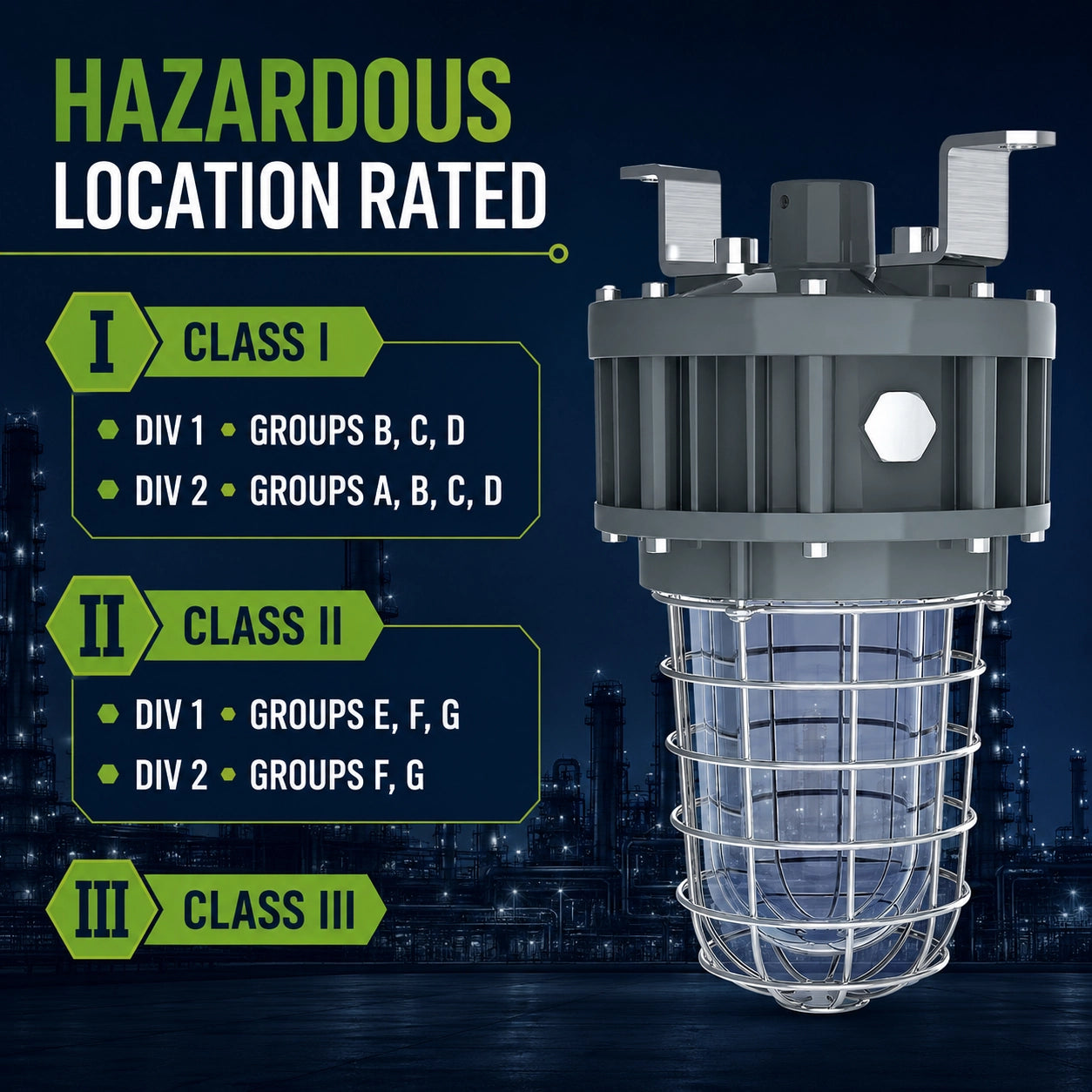

Hazardous-Location Rated Construction
Designed for classified areas requiring a rugged and dependable compact LED fixture. Hazardous-location ratings include:
- Class I, Division 1, Groups B, C and D
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 1, Groups E, F and G
- Class II, Division 2, Groups F and G
- Class III hazardous locations
Efficient, Wide-Area Industrial Illumination
The fixture produces 4,050 lumens using only 30 watts. Its 120° beam distributes light across entrances, corridors, stairways, equipment areas and compact industrial workspaces.
- 135 lm/W energy efficiency
- 120° wide beam angle
- 5000K daylight output
- Compact jelly jar design
- Reduced energy and maintenance requirements

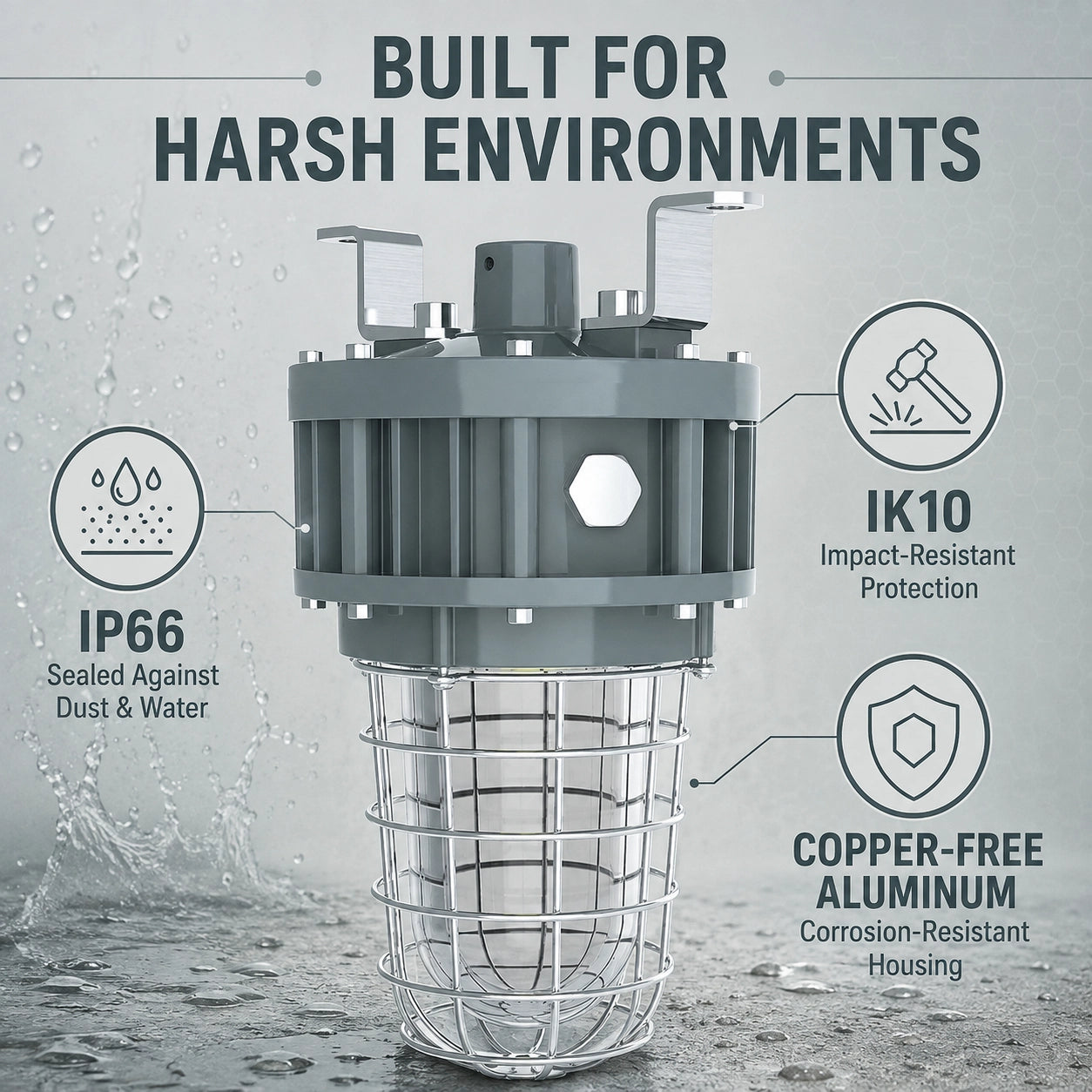

IP66 Protection for Demanding Environments

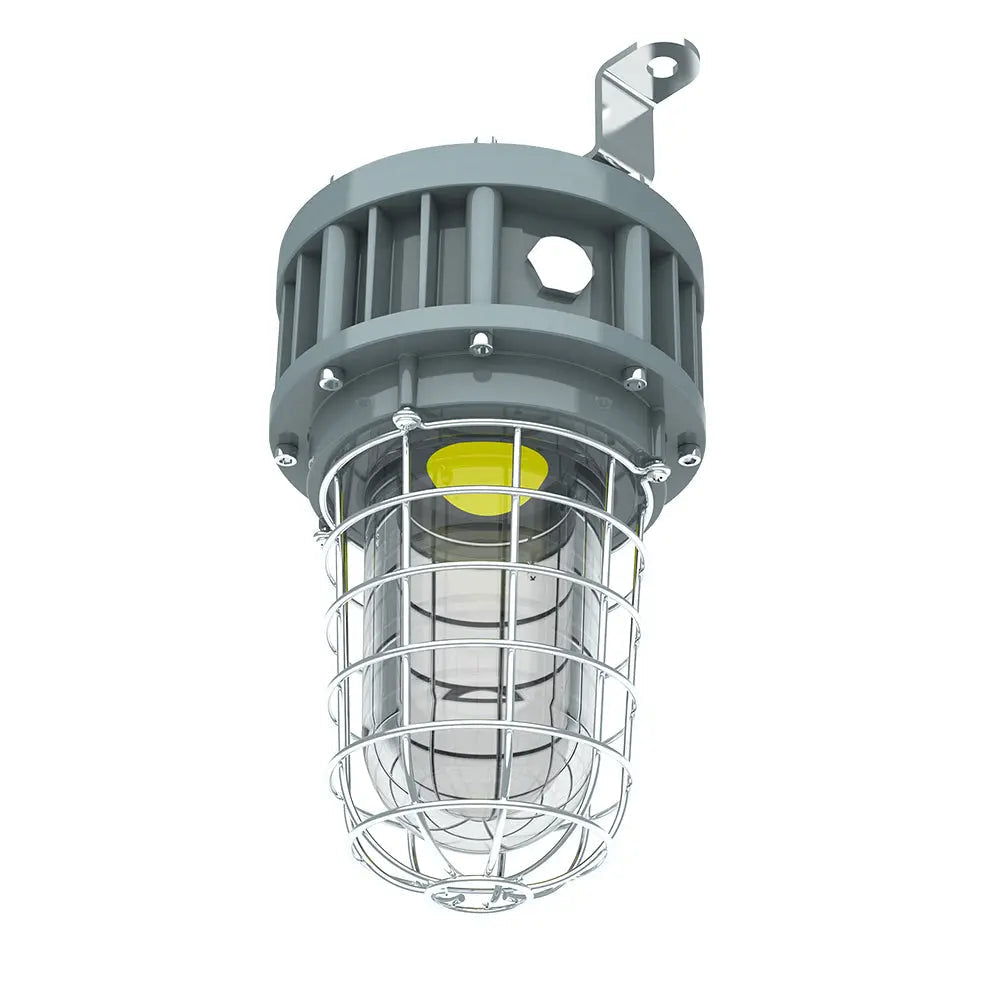

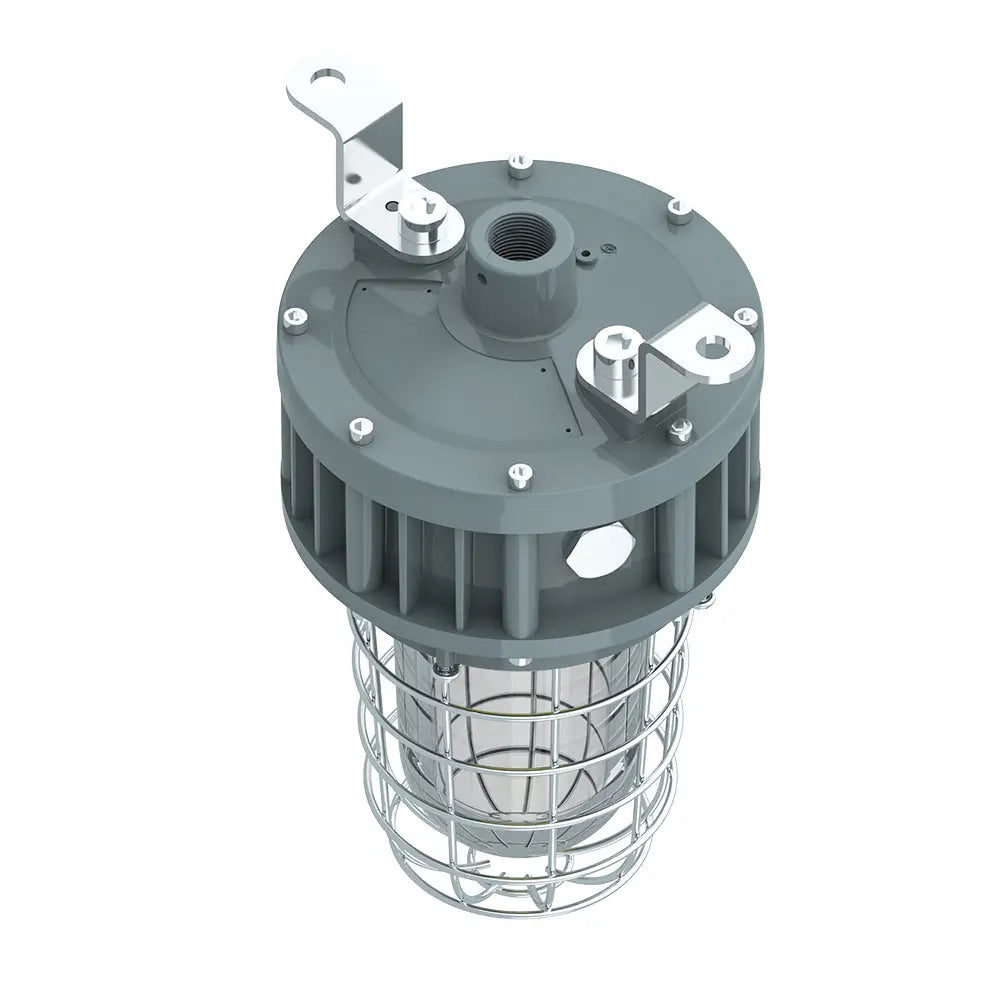

The sealed heavy-duty aluminum housing and protective glass help shield internal components from dust, water and demanding industrial operating conditions.
- IP66 weather-resistant and dust-tight design
- Corrosion-resistant aluminum housing
- Protective glass lens
- Designed for vibration-prone industrial locations

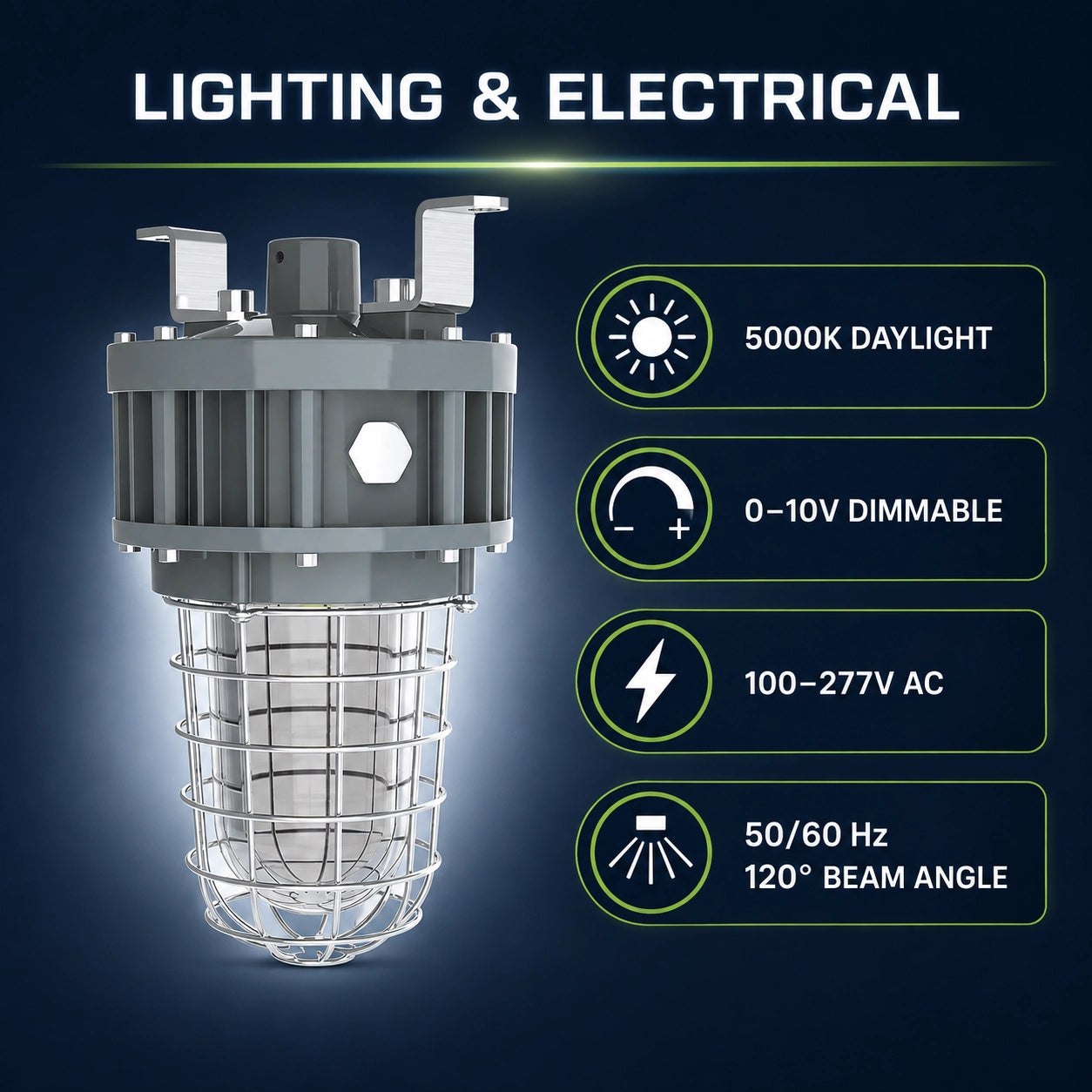

0–10V Dimmable 100–277V Operation
The universal AC 100–277V input supports common commercial and industrial power systems. Integrated 0–10V dimming leads allow connection to a compatible control system. A separate 0–10V dimmer or control circuit is required and is not included.

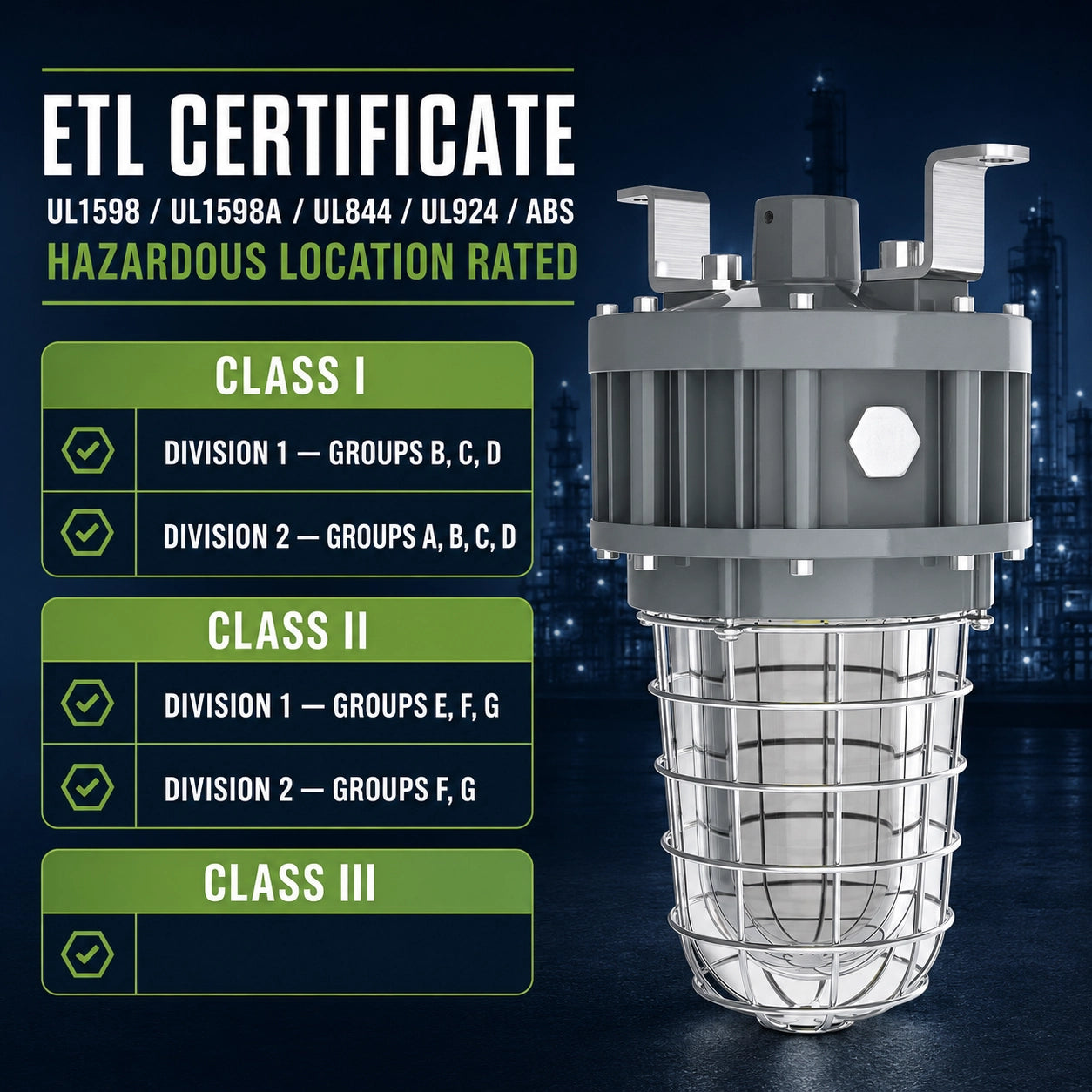

ETL Certified for Hazardous-Location Applications
The fixture carries an ETL certification and is evaluated to applicable requirements including UL 1598, UL 1598A, UL 844 and UL 924. ABS suitability supports applicable marine and offshore projects.
Key Features
- Power: 30W
- Lumen Output: 4,050 lm
- Efficacy: 135 lm/W
- Color Temperature: 5000K
- Input Voltage: AC 100–277V, 50/60Hz
- Dimming: 0–10V dimmable
- Beam Angle: 120°
- Protection: IP66
- Warranty: 5-year limited warranty
Specifications
| Wattage | 30W |
| Lumen Output | 4,050 lumens |
| Efficacy | 135 lm/W |
| CCT | 5000K |
| Input Voltage | AC 100–277V, 50/60Hz |
| Dimming | 0–10V |
| Beam Angle | 120° |
| IP Rating | IP66 |
| Hazardous Rating | Class I Div 1 & 2; Class II Div 1 & 2; Class III |
| Certification | ETL; UL 1598, UL 1598A, UL 844, UL 924; ABS |
| Warranty | 5 Years |
Need Help with a Hazardous-Location Project?
Contact TANLITE for fixture selection, bulk pricing and commercial project support. Please provide the hazardous-location classification, voltage, mounting requirements and quantity.
