Description

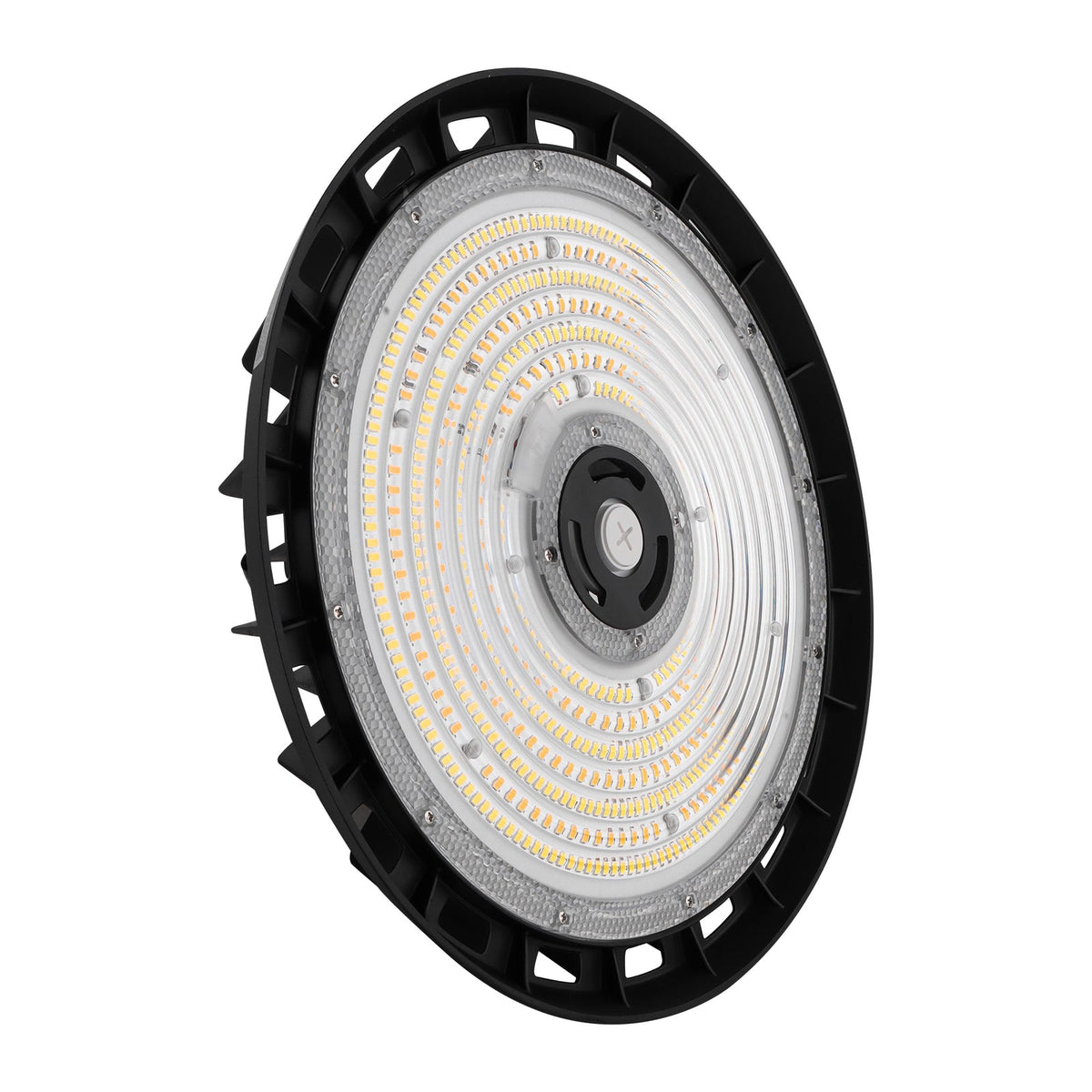

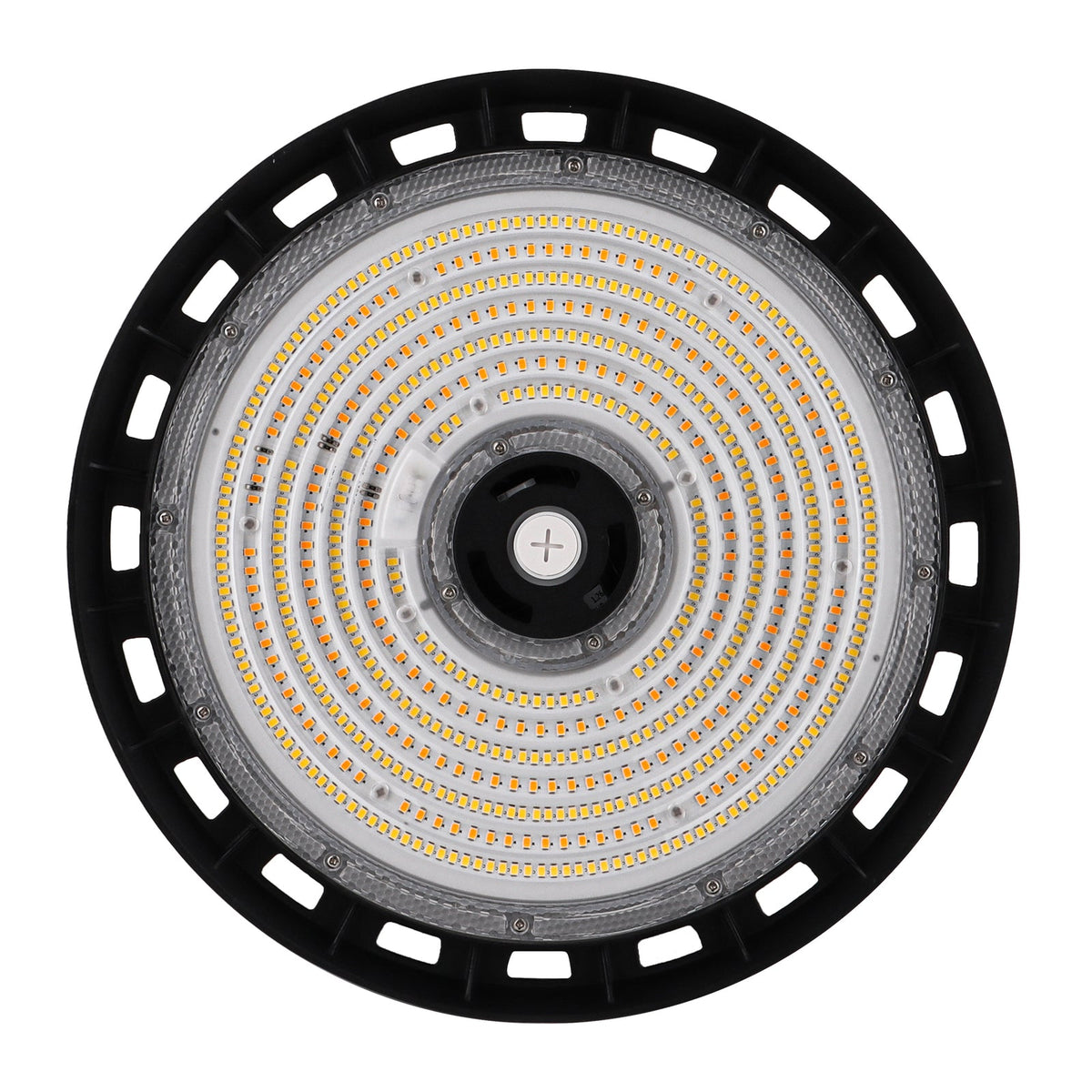

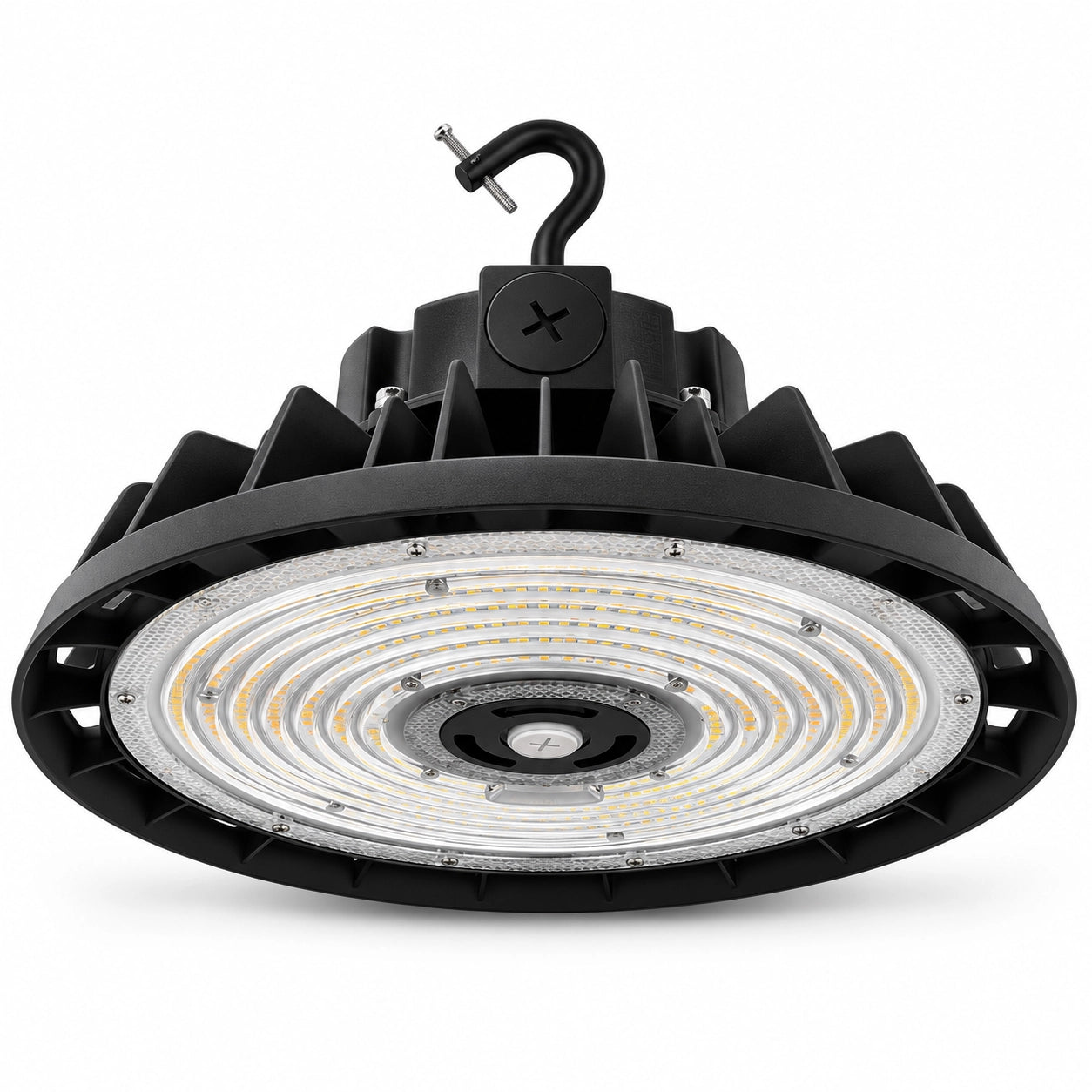

320W / 240W / 200W Selectable UFO LED High Bay
Delivering up to 48,320 lumens and up to 170 lm/W, this high-voltage UFO high bay gives warehouses, manufacturing plants and sports facilities flexible output from one commercial-grade fixture.
Selectable Output for Changing Facility Needs
Choose 200W, 240W or 320W during installation to match mounting height, aisle layout and required light level. Select 4000K or 5000K to suit the working environment without stocking separate fixtures.
High-output industrial illumination
Field-selectable wattage
Selectable color temperature

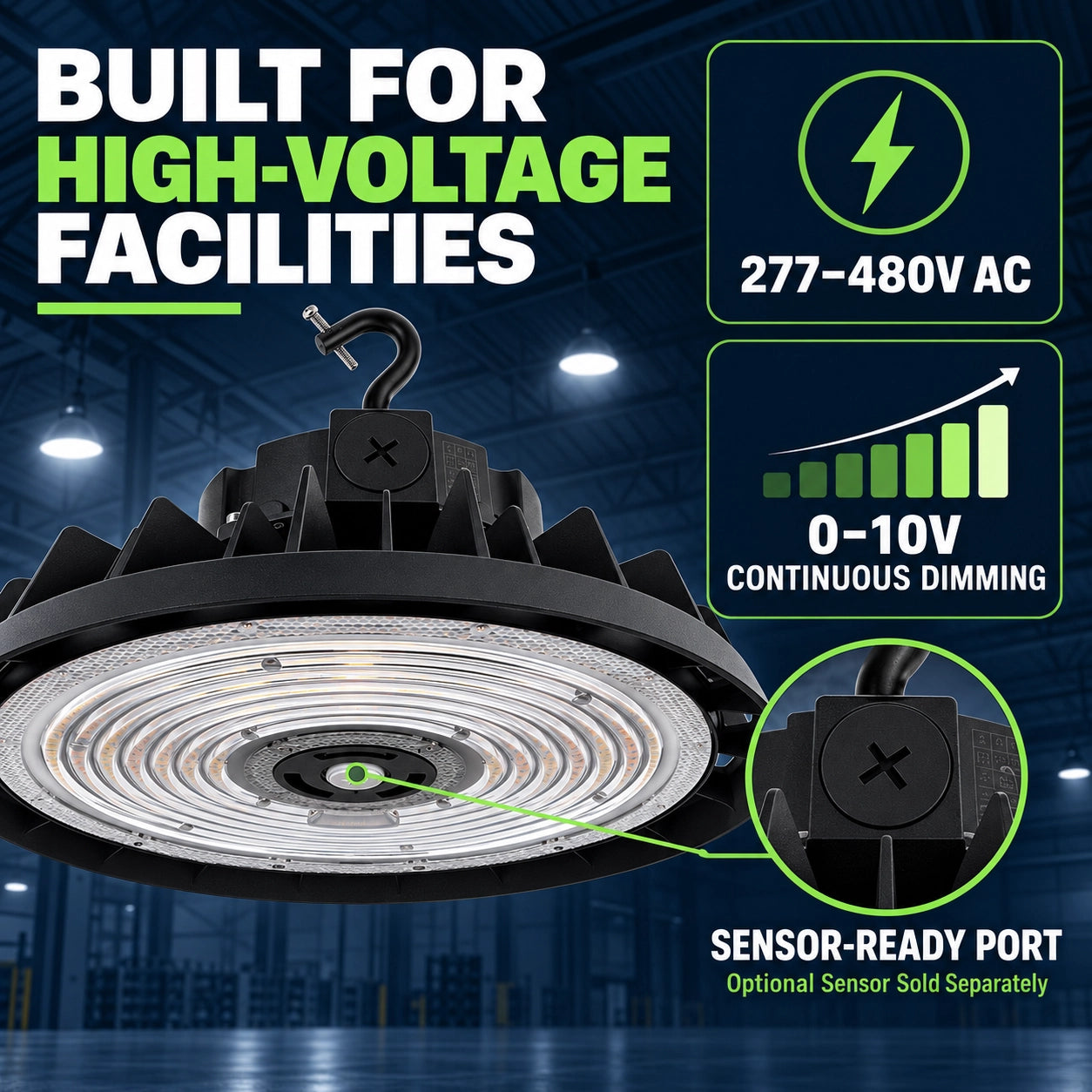

High-voltage input
Commercial-Grade Control & Protection
- 0–10V continuous dimming from full output down to off; separate compatible control required
- 0–10V sensor port supports optional lighting controls
- 6kV surge protection: L/N–PE 6kV and L–N 6kV
- Flicker-free driver for consistent working light

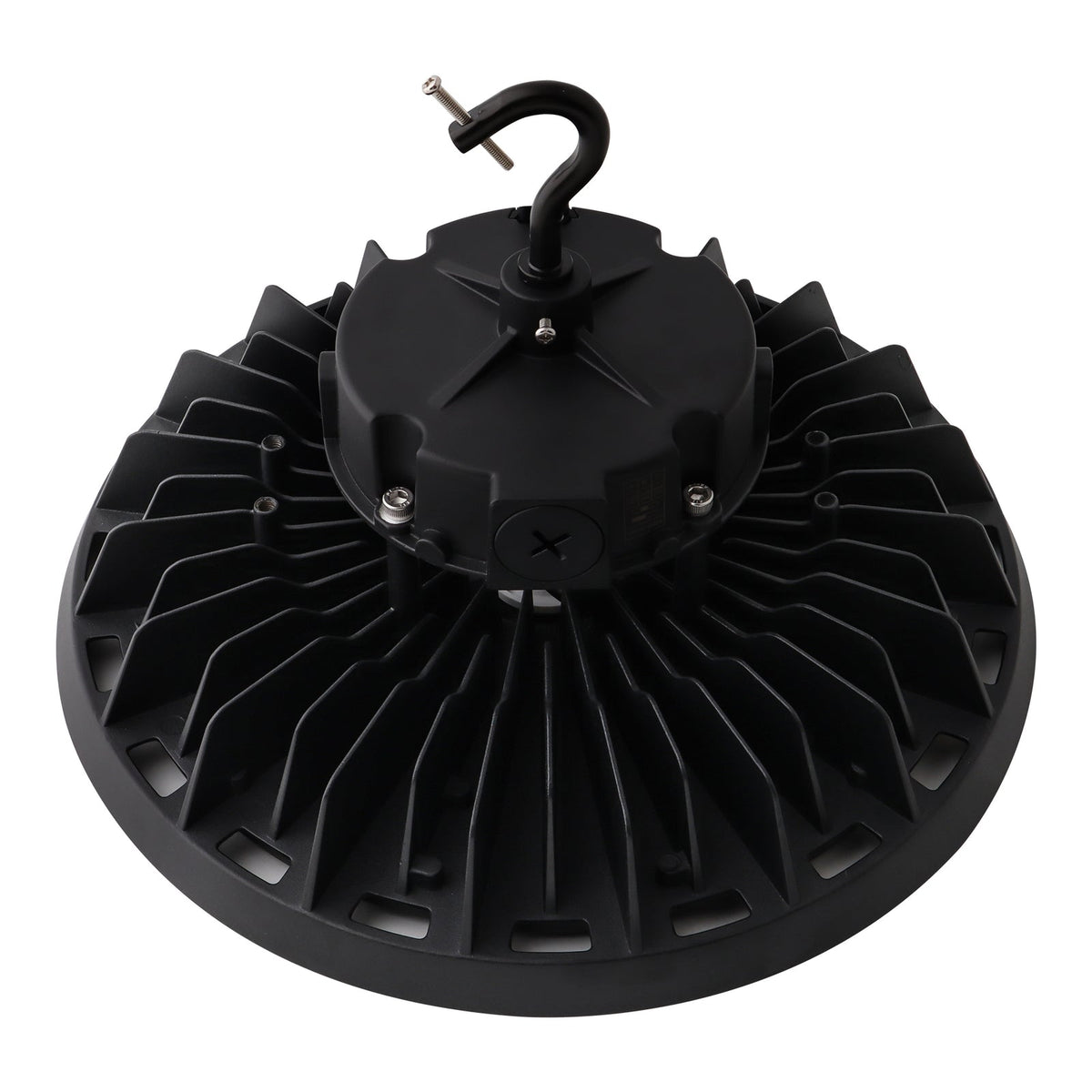

- IP65-rated die-cast aluminum housing for wet and dusty environments
- 5 ft power cord and 1 ft dimming cord supplied for installation
Flexible Optics & Mounting

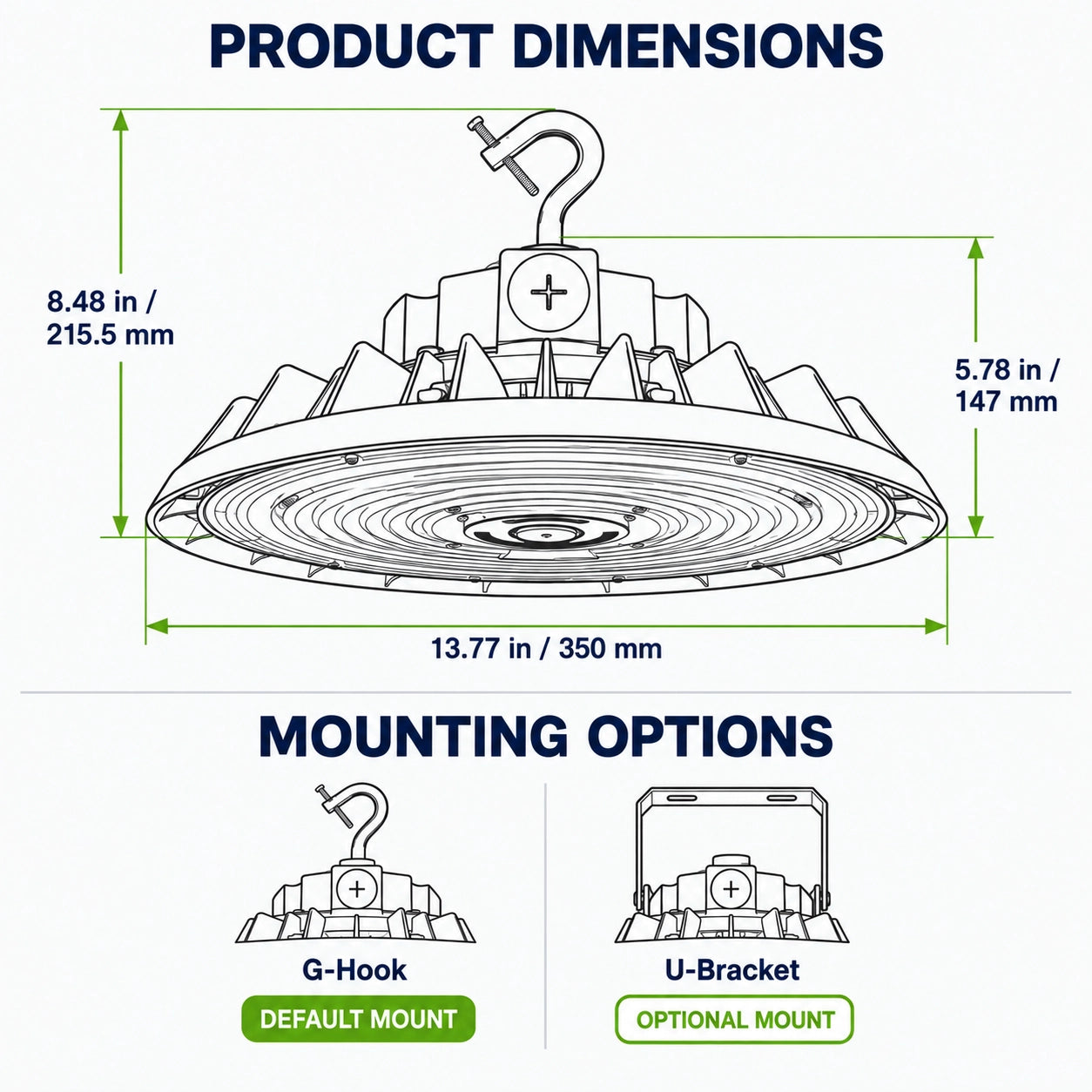

Narrow, medium and wide distributions are available to support different mounting heights and spacing plans. Compatible mounting options include G hook, U-bracket and a 3/4-inch NPS threaded pendant-mount adapter. Confirm included mounting hardware before ordering.
Product Specifications
| Selectable Wattage | 320W / 240W / 200W |
| Maximum Light Output | 48,320 lumens |
| Efficacy | Up to 170 lm/W |
| Selectable CCT | 4000K / 5000K (5000K default) |
| CRI | >80 |
| Input Voltage | 277–480VAC, 50/60Hz |
| Dimming | 0–10V continuous dimming |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Housing | Black die-cast aluminum |
| Ratings | UL, DLC 5.1 Standard, IP65 |
| Rated Life / Warranty | 50,000 hours / 5-year limited warranty |

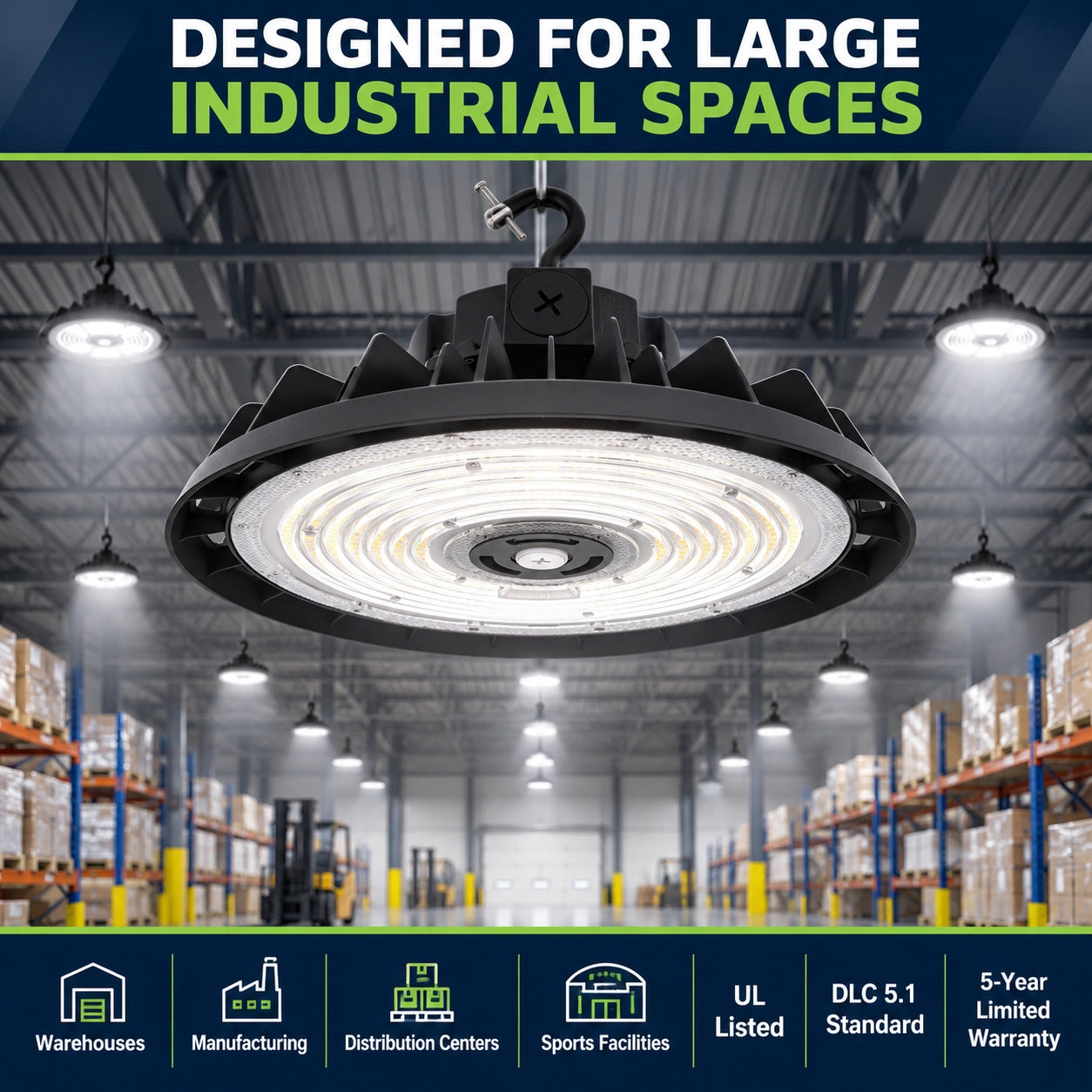

Recommended Applications
Warehouses, distribution centers, manufacturing facilities, workshops, retail centers, sports facilities and gymnasiums.
Need a Lighting Layout or Project Quote?
Contact TANLITE with your ceiling height, facility dimensions, target light level and fixture quantity for project support.
