Description
Selectable LED Full Cutoff Wall Pack for Commercial Exterior Lighting
The TANLITE full cutoff LED wall pack is designed for commercial and industrial building exteriors where controlled downward illumination, flexible output and energy efficiency are important. Select 60W, 80W, 100W or 120W during installation to match different mounting heights and lighting requirements.
Selectable Wattage & Light Output
- 60W: approximately 7,800 lumens
- 80W: approximately 10,400 lumens
- 100W: approximately 13,000 lumens
- 120W: approximately 15,600 lumens
- Luminous efficacy: 130 lm/W
Key Features
- Full cutoff design: directs light downward to reduce uplight and improve exterior lighting control
- Selectable wattage: 60W / 80W / 100W / 120W
- 5000K daylight: bright white illumination for commercial exterior applications
- 120-277V AC: suitable for common commercial electrical systems
- Type II distribution: designed for wall-mounted perimeter, walkway and building exterior lighting
- 0-10V dimmable: supports compatible commercial dimming controls

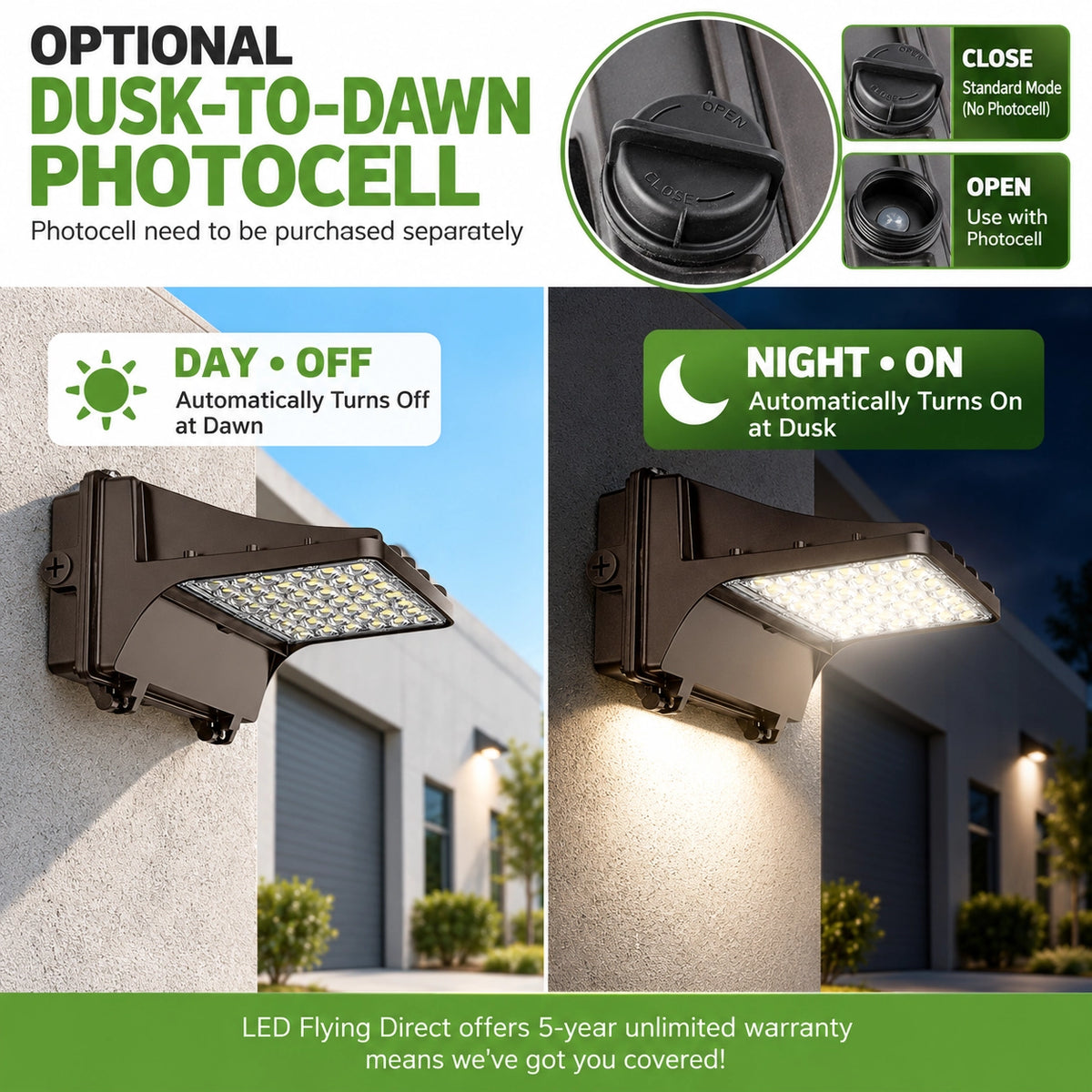

- Photocell compatible: supports optional dusk-to-dawn operation
- Durable construction: bronze powder-coated aluminum housing with sealed polycarbonate lens
- Long service life: rated up to 50,000 hours
- DLC 5.1 Premium: suitable for qualifying commercial lighting projects

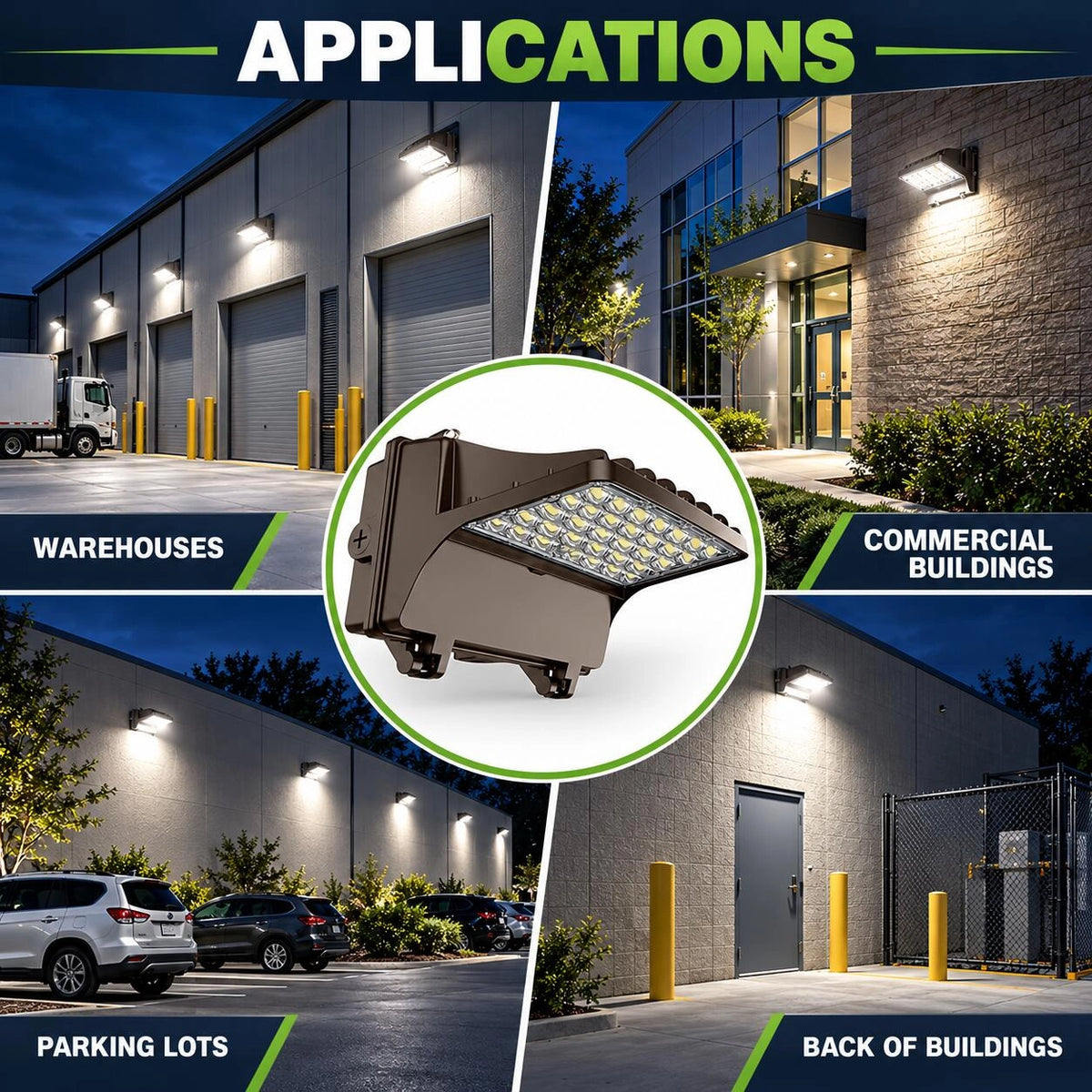

Commercial Applications
Ideal for warehouses, distribution centers, commercial buildings, loading areas, exterior walls, walkways, building entrances and perimeter security lighting.
Specifications
| Wattage | 60W / 80W / 100W / 120W Selectable |
| Luminous Efficacy | 130 lm/W |
| Maximum Light Output | Up to 15,600 Lumens at 120W |
| Color Temperature | 5000K |
| Input Voltage | 120-277V AC |
| Light Distribution | Type II |
| Dimming | 0-10V |
| Housing | Bronze Powder-Coated Aluminum |
| Lens | Polycarbonate |
| Mounting | Wall or Junction Box Mount |
| Photocell | Optional / Compatible |
| Rated Life | Up to 50,000 Hours |
| Listing | DLC 5.1 Premium |
Why Choose a Full Cutoff Wall Pack?
A full cutoff wall pack directs illumination toward the ground instead of sending unnecessary light above the fixture. This makes it a strong choice for commercial exterior lighting where controlled distribution, building perimeter visibility and reduced uplight are important.
