Description
60W | 8400 Lumens | 5000K | 100-277V | IP66 | UL Listed | Class I Division 2

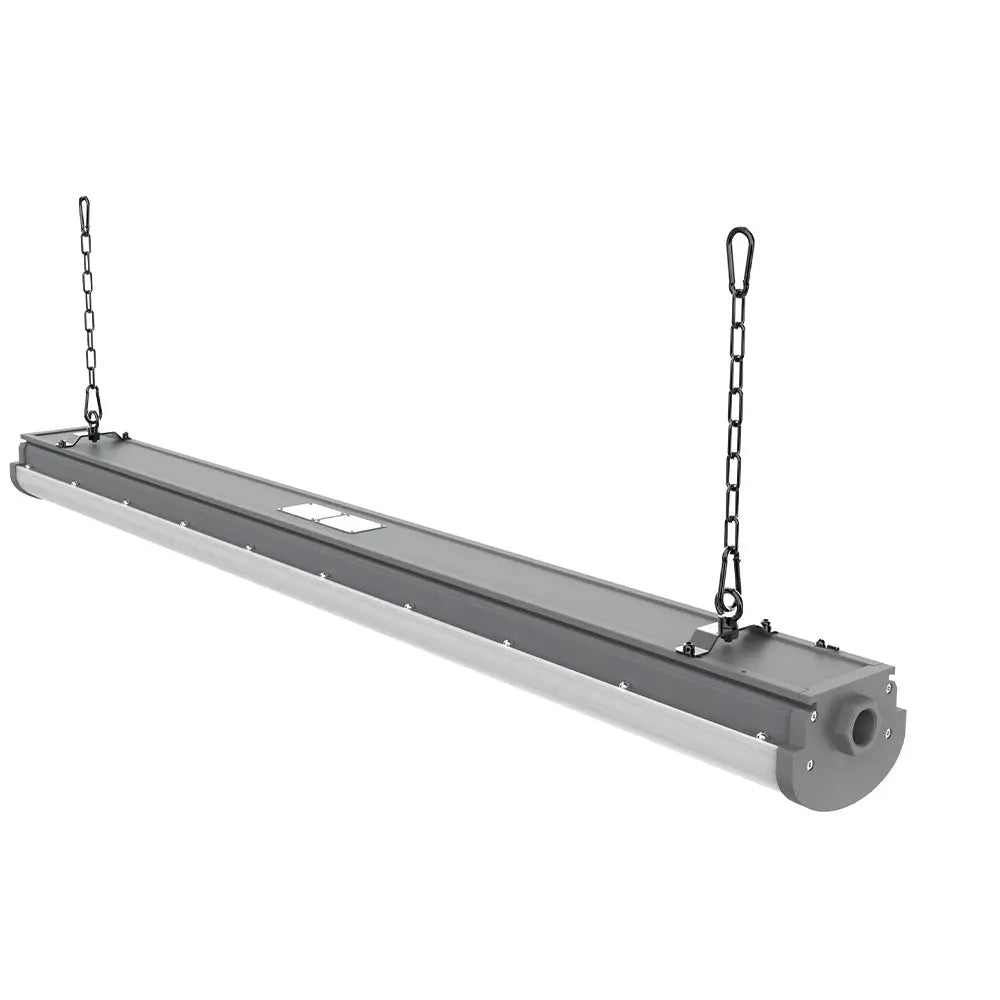

4FT LED Explosion Proof Linear Light for Hazardous Locations
The TANLITE 60W 4FT LED Explosion Proof Linear Light is engineered for demanding commercial and industrial environments where flammable gases, vapors, or other hazardous conditions may be present. Rated for Class I, Division 2, Groups A, B, C, and D locations, this fixture provides reliable illumination for oil and gas facilities, petrochemical plants, wastewater treatment facilities, tunnels, industrial processing areas, and other hazardous locations.
Delivering 8,400 lumens at 140 lumens per watt, this 4-foot hazardous location linear fixture combines high light output with energy-efficient LED performance. Its sealed construction, IP66 weatherproof rating, durable aluminum housing, and frosted polycarbonate lens make it suitable for demanding indoor and outdoor applications.
Key Features

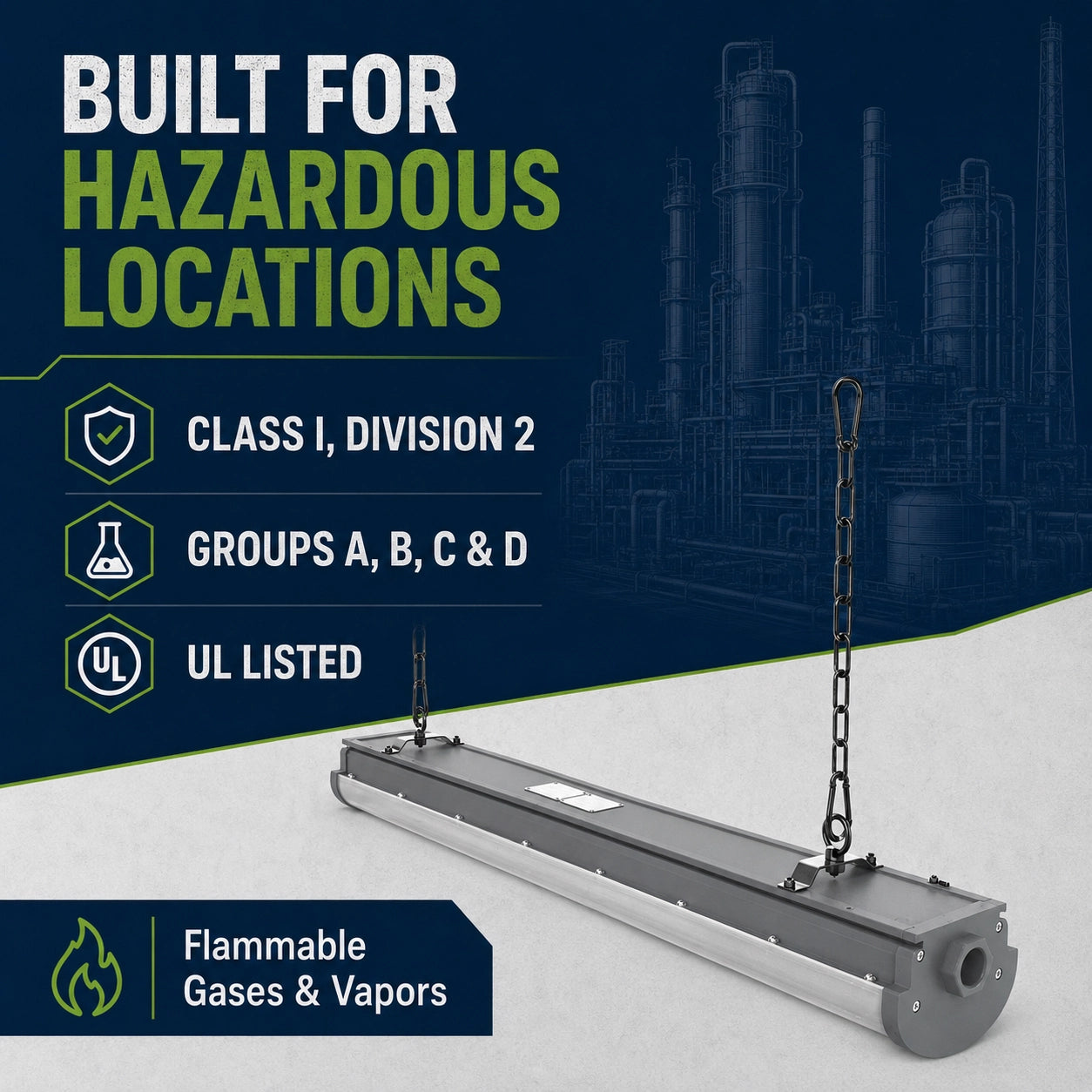

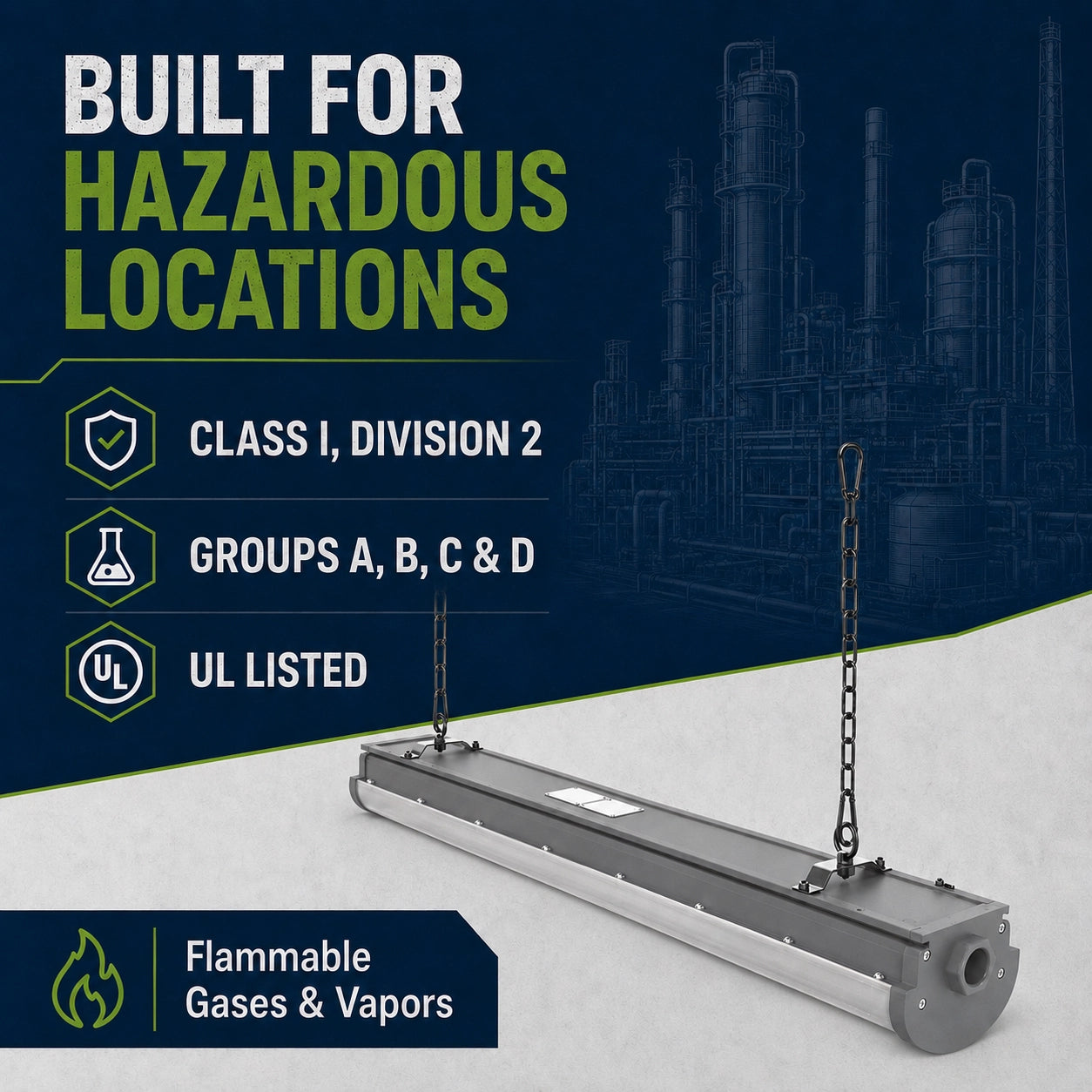

Class I Division 2 Hazardous Location Rated
Designed for use in Class I, Division 2 hazardous locations where flammable gases or vapors may occasionally be present under abnormal operating conditions.
- Class I, Division 2
- Groups A, B, C, and D
- Suitable for demanding industrial and hazardous environments
High Efficiency — 140 LM/W
The 60W LED fixture produces up to 8,400 lumens, delivering strong and uniform illumination while reducing energy consumption compared with traditional industrial lighting systems.
- 60W LED power
- 8,400 lumen output
- 140 lumens per watt
- 5000K daylight color temperature

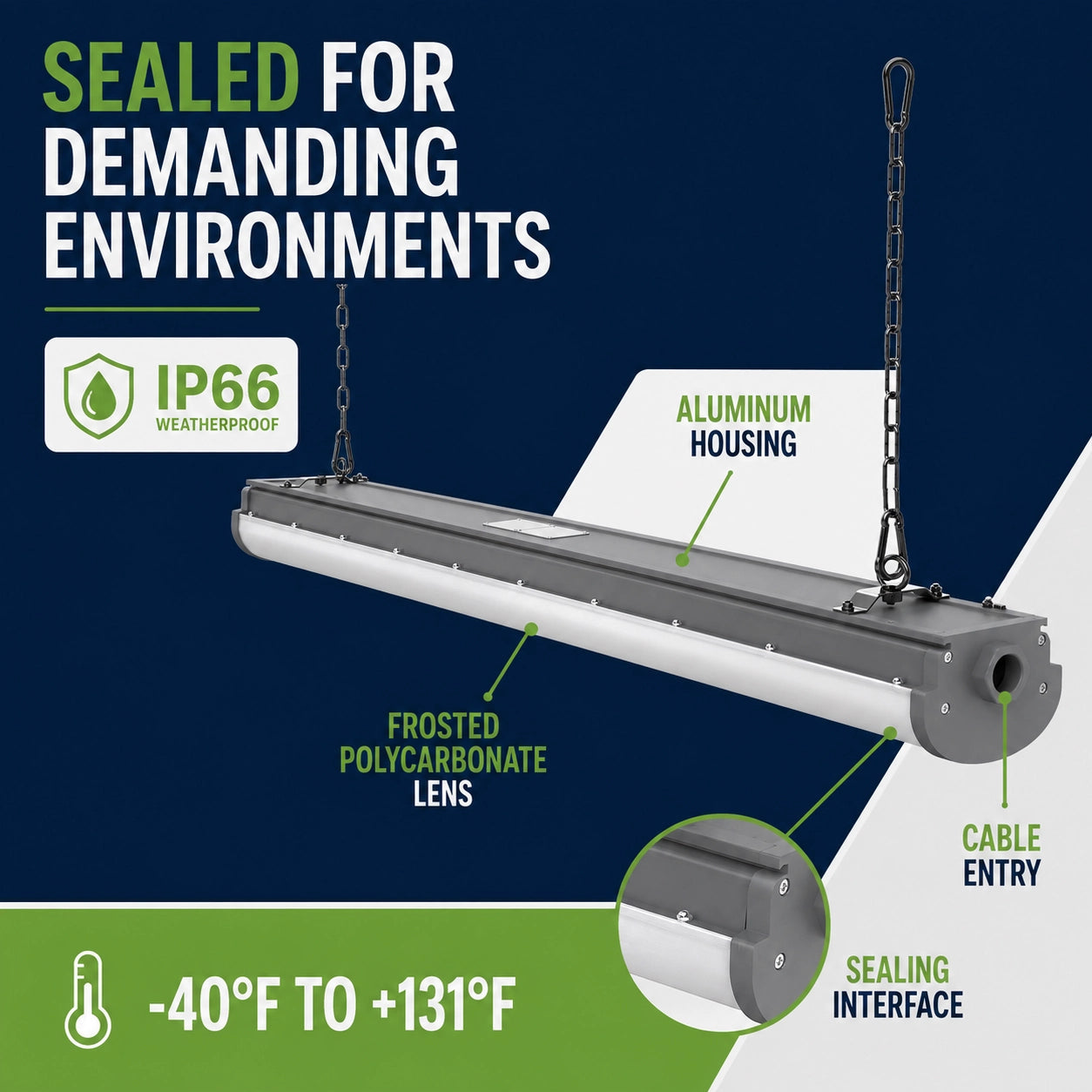

IP66 Weatherproof Construction
The sealed fixture design helps protect internal components from dust, moisture, and harsh environmental conditions, making it suitable for industrial indoor and outdoor installations.

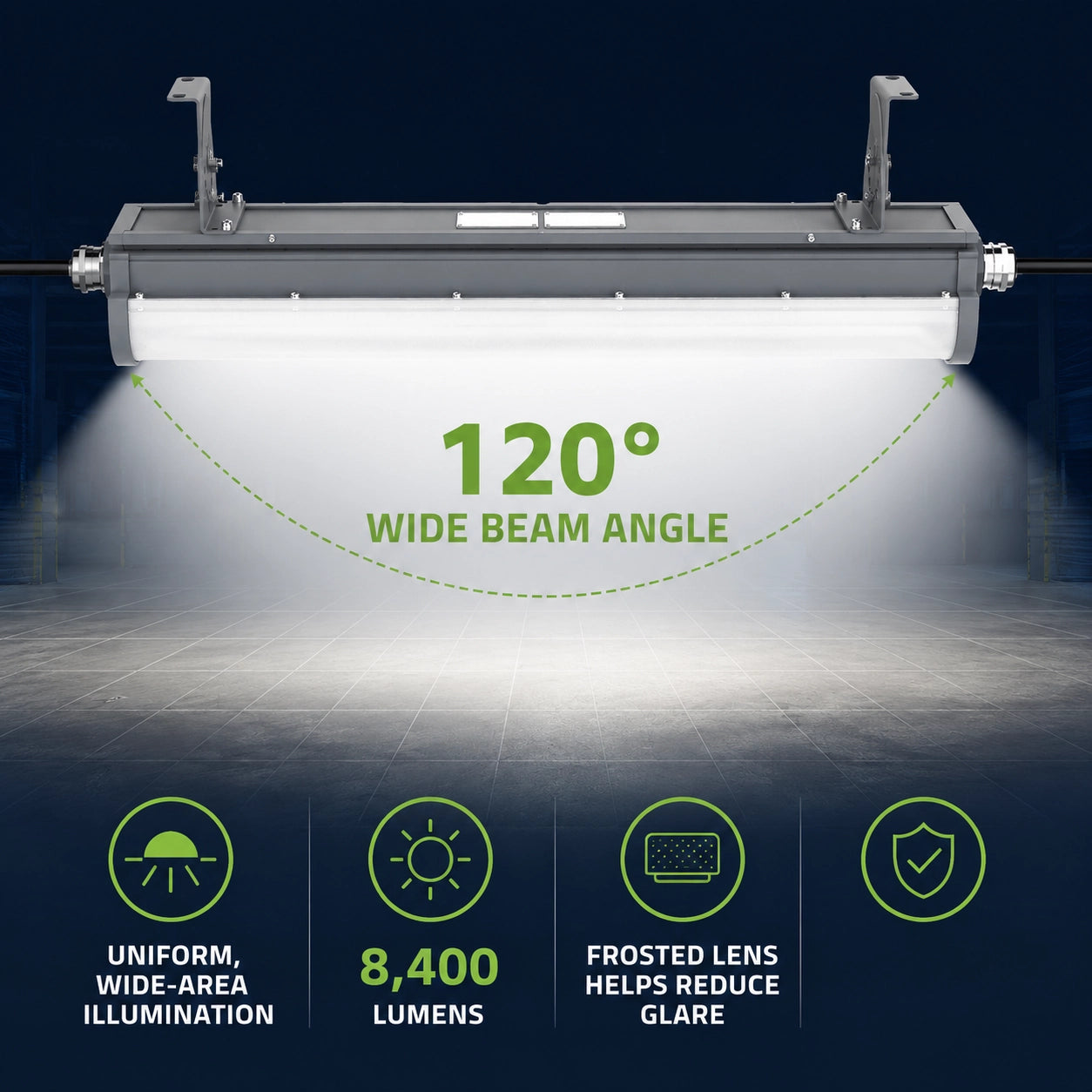

Wide 120° Beam Angle
The 120° beam angle provides broad, uniform illumination for large work areas, processing facilities, tunnels, industrial corridors, and general hazardous-area lighting applications.

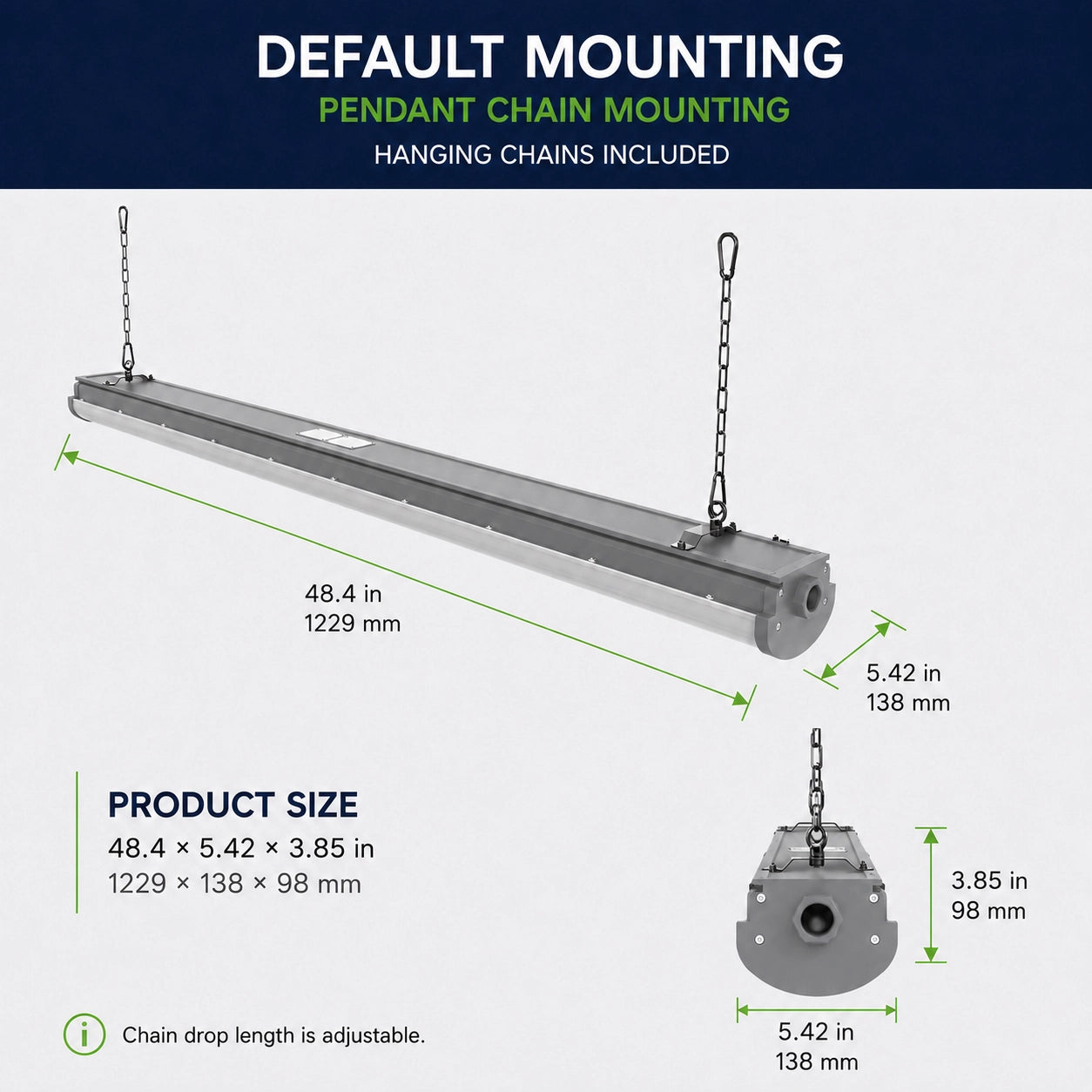

Flexible Mounting Options
The fixture includes fixed surface-mount brackets and pendant mounting chains, giving installers flexibility for different project requirements.
- Surface mounting
- Pendant chain mounting
- Suitable for ceiling and suspended installations
Designed for Industrial Hazardous Locations
This 4FT LED explosion proof linear fixture is ideal for facilities requiring durable, reliable lighting in environments where conventional fixtures may not be suitable.
- Oil & Gas Facilities
- Petroleum Refineries
- Petrochemical Plants
- Drilling Rigs
- Wastewater Treatment Facilities
- Food & Beverage Processing Facilities
- Tunnels
- Industrial Processing Areas
- Hazardous Work Areas

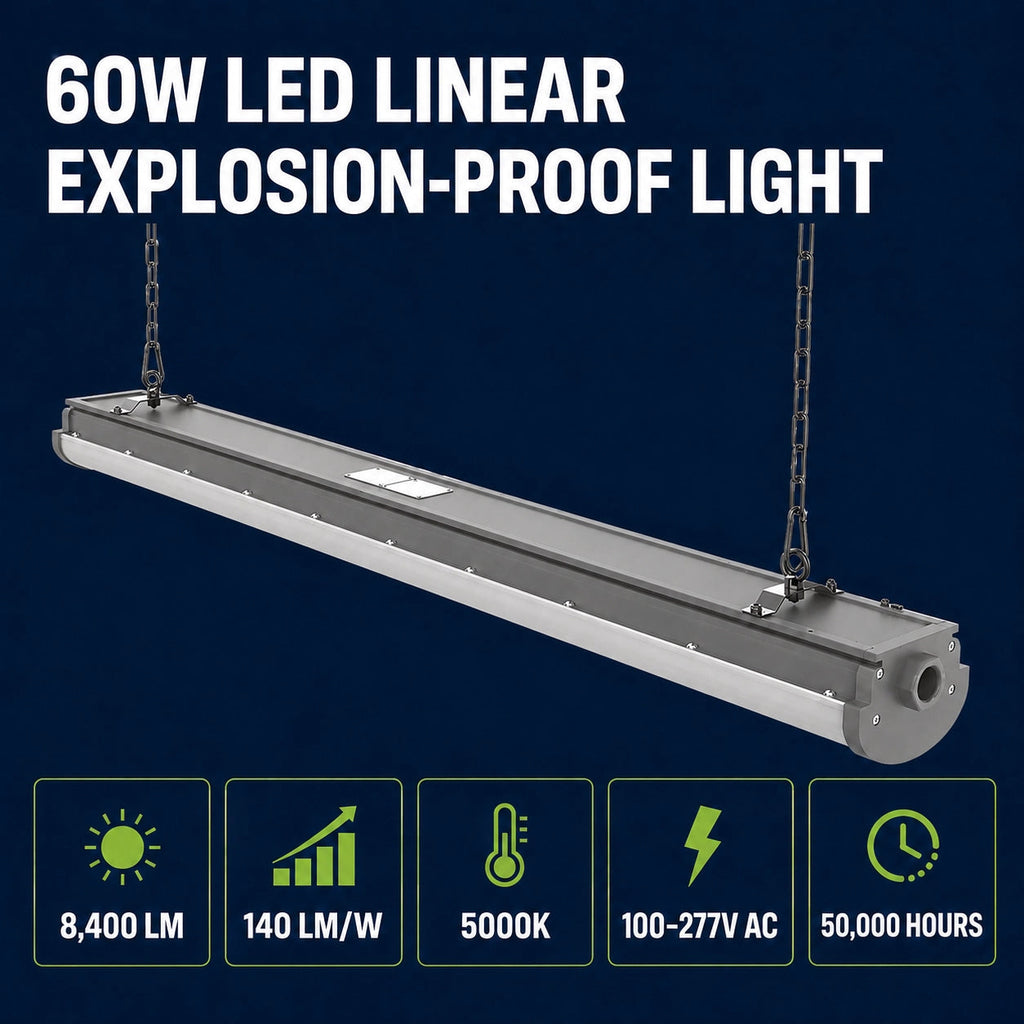

Product Specifications
| Model | TL-CEL60-120V-5K |
| Wattage | 60W |
| Lumen Output | 8,400 Lumens |
| Luminous Efficacy | 140 LM/W |
| Color Temperature | 5000K |
| Input Voltage | 100-277VAC |
| Beam Angle | 120° |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C, D |
| Environmental Rating | IP66 |
| Certification | UL Listed |
| Housing | Aluminum |
| Lens | Frosted Polycarbonate |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Rated Life | 50,000 Hours |
| Mounting | Surface Mount Brackets / Pendant Chains |
Reliable Lighting for Demanding Industrial Projects
Whether the project involves oil and gas facilities, industrial processing areas, wastewater treatment, or other hazardous environments, TANLITE provides commercial-grade LED lighting solutions designed for long-term reliability and professional installation.
Contact TANLITE for project pricing, bulk orders, and hazardous-location lighting support.
