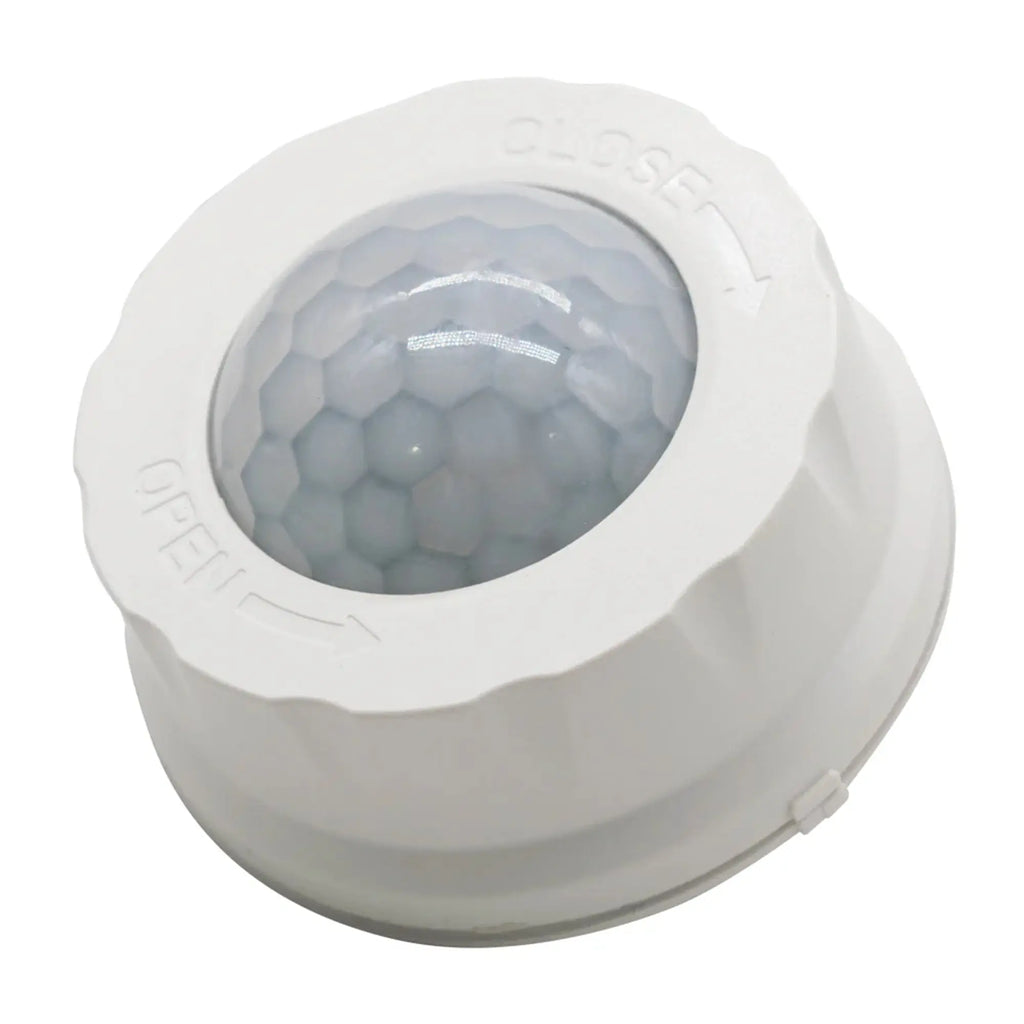

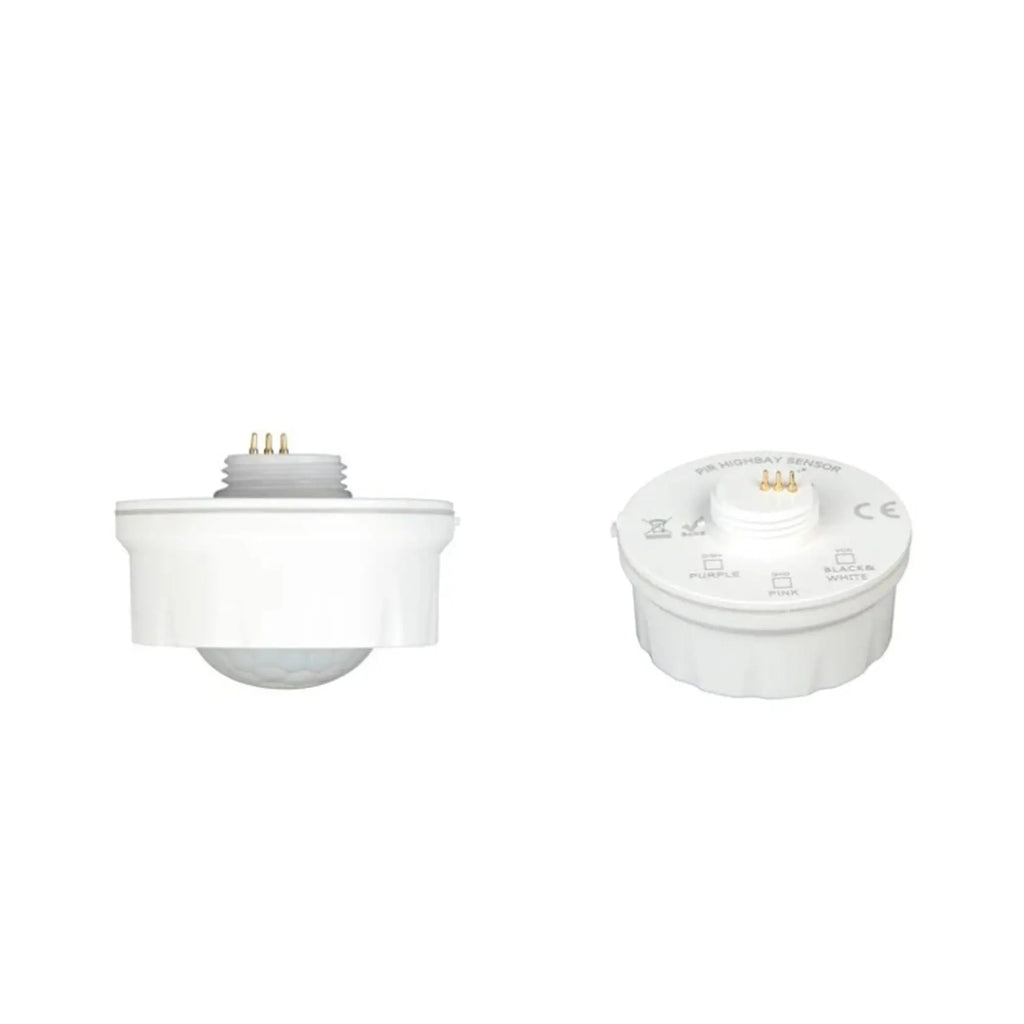

High Bay PIR Motion Sensor-HD07VR-PH-2 – 12VDC-Dimmable Sensor for Industrial Lighting

The HD07VR-PH-2 High Bay PIR Motion Sensor is designed for intelligent lighting control in industrial and commercial environments. This sensor provides automatic motion detection and dimming control for LED high bay lighting systems, helping reduce energy consumption while maintaining optimal lighting levels in warehouses, factories, and large indoor spaces.

Featuring remote control configuration, users can easily adjust settings such as detection sensitivity, hold time, and dimming levels without accessing the fixture. The sensor supports 3-pin connection compatibility and works with 12VDC systems, making it ideal for modern LED high bay installations.

With an IP65 protection rating, the sensor is suitable for demanding industrial environments, offering reliable performance even in dusty or humid conditions. Designed for installation heights up to 12 meters (39 ft), it provides efficient motion detection with a minimum detection distance of 3 meters (9 ft).

Key Features

Smart Motion Detection

Automatically detects movement to turn lights on or dim them when areas are unoccupied, helping reduce energy costs.

Remote Control Configuration

Adjust sensor parameters quickly using a wireless remote control, eliminating the need to access fixtures at high ceilings.

High Bay Lighting Compatibility

Designed specifically for LED high bay fixtures used in warehouses, factories, and industrial facilities.

Dimmable Lighting Control

Supports dimming functionality for energy-saving lighting management.

Industrial Protection

IP65 rated enclosure protects against dust and moisture for reliable operation.

Easy 3-Pin Connection

Standard 3-pin connection interface ensures simple integration with compatible LED high bay fixtures.

Specifications

• Model: HD07VR-PH-2

• Sensor Type: PIR Motion Sensor

• Power Supply: 12VDC

• Connection Type: 3-Pin

• Control Method: Remote Control

• Dimming: Supported

• Installation Height: Max. 12 m / 39 ft

• Detection Distance: ≥3 m / 9 ft

• IP Rating: IP65

• Color: White

• Certifications: UL, FCC

• Warranty: 3 Years

Applications

• Warehouses

• Industrial facilities

• Manufacturing plants

• Logistics centers

• Commercial storage areas

• Gymnasiums and large indoor spaces
