✔ Wattage Selectable | CCT Selectable | 0-10V Dimmable | Surface & Pendant Mount | Commercial Grade Lighting
LED Parking Garage Canopy Light – 30W/40W/55W Selectable
This TANLITE LED parking garage canopy light is designed for commercial ceiling and covered outdoor applications where reliable, energy-efficient lighting is required. With selectable wattage settings of 30W, 40W, and 55W, this fixture allows you to adjust brightness based on installation height, coverage area, and project needs.
Featuring selectable 3000K, 4000K, and 5000K color temperatures, 0-10V dimming, and a wide 100-277V input range, this LED canopy light is a flexible replacement for up to 150W metal halide fixtures.
- 30W/40W/55W wattage selectable for flexible brightness control
- 3000K/4000K/5000K CCT selectable for different environments
- 0-10V dimmable for lighting control systems
- Surface mount and pendant mount installation options
- Compact 9.5” x 9.5” housing design
- Ideal for parking garages, gas stations, carports, entryways, and underpasses
Flexible Wattage Selection
Adjust the wattage based on your lighting requirements. Use lower wattage settings for energy savings or choose the highest setting for stronger illumination in larger areas.
- 30W: Energy-saving option for lower ceilings and smaller areas
- 40W: Balanced brightness for general commercial use
- 55W: Maximum output for parking garages and wider coverage
Selectable CCT for Different Applications
Choose the right color temperature for your project directly on-site. This makes the fixture easier to use across different commercial and industrial lighting applications.
- 3000K Warm White: Softer light for entryways and covered walkways
- 4000K Neutral White: Balanced light for general commercial areas
- 5000K Cool White: Bright daylight-style visibility for parking garages and security lighting

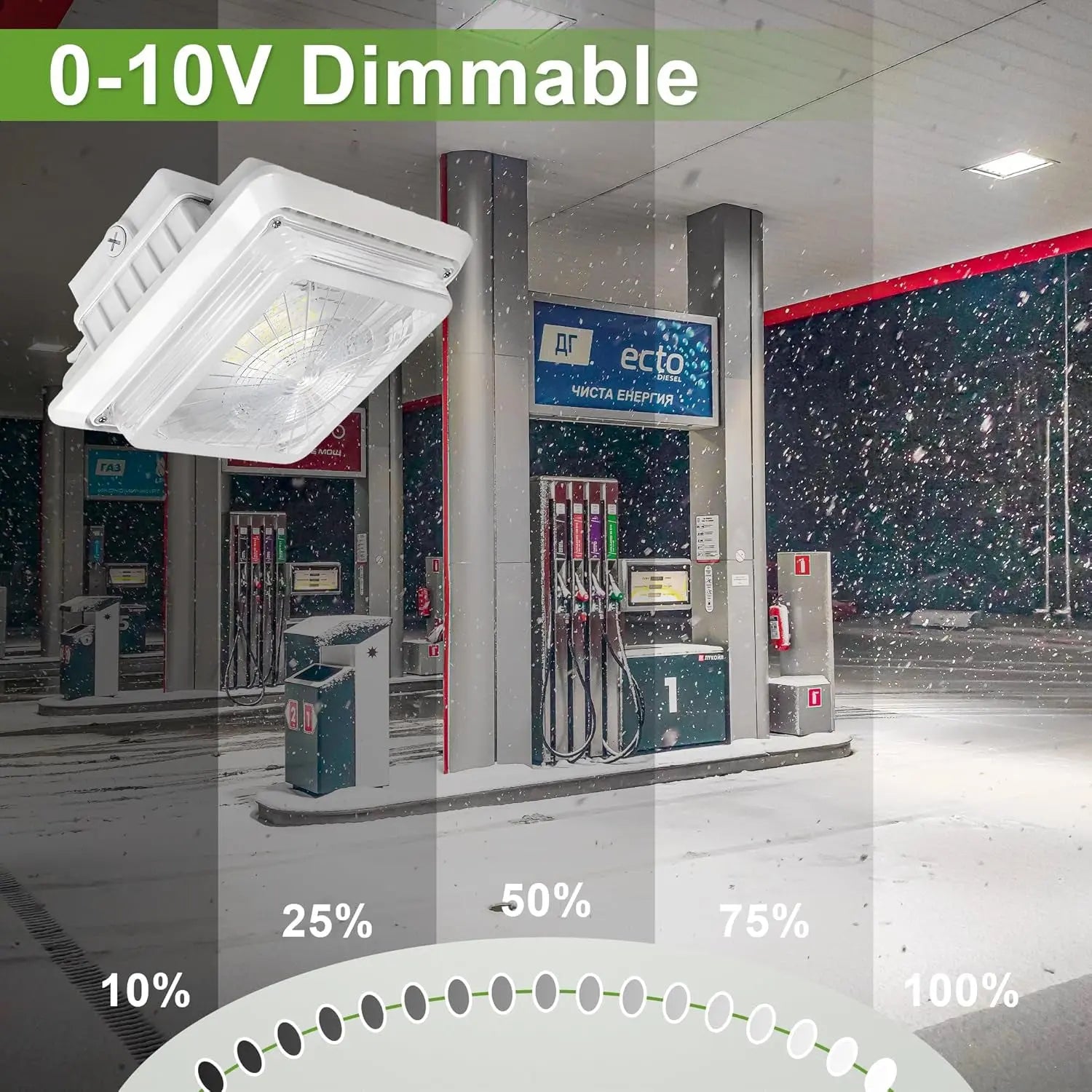

0-10V Dimmable Commercial Lighting
Built with 0-10V dimming capability, this LED canopy light can work with compatible dimming systems to help improve energy efficiency and provide better lighting control for commercial spaces.
- Compatible with 0-10V dimming controls
- Helps reduce energy usage when full brightness is not required
- Suitable for commercial retrofit and new construction projects

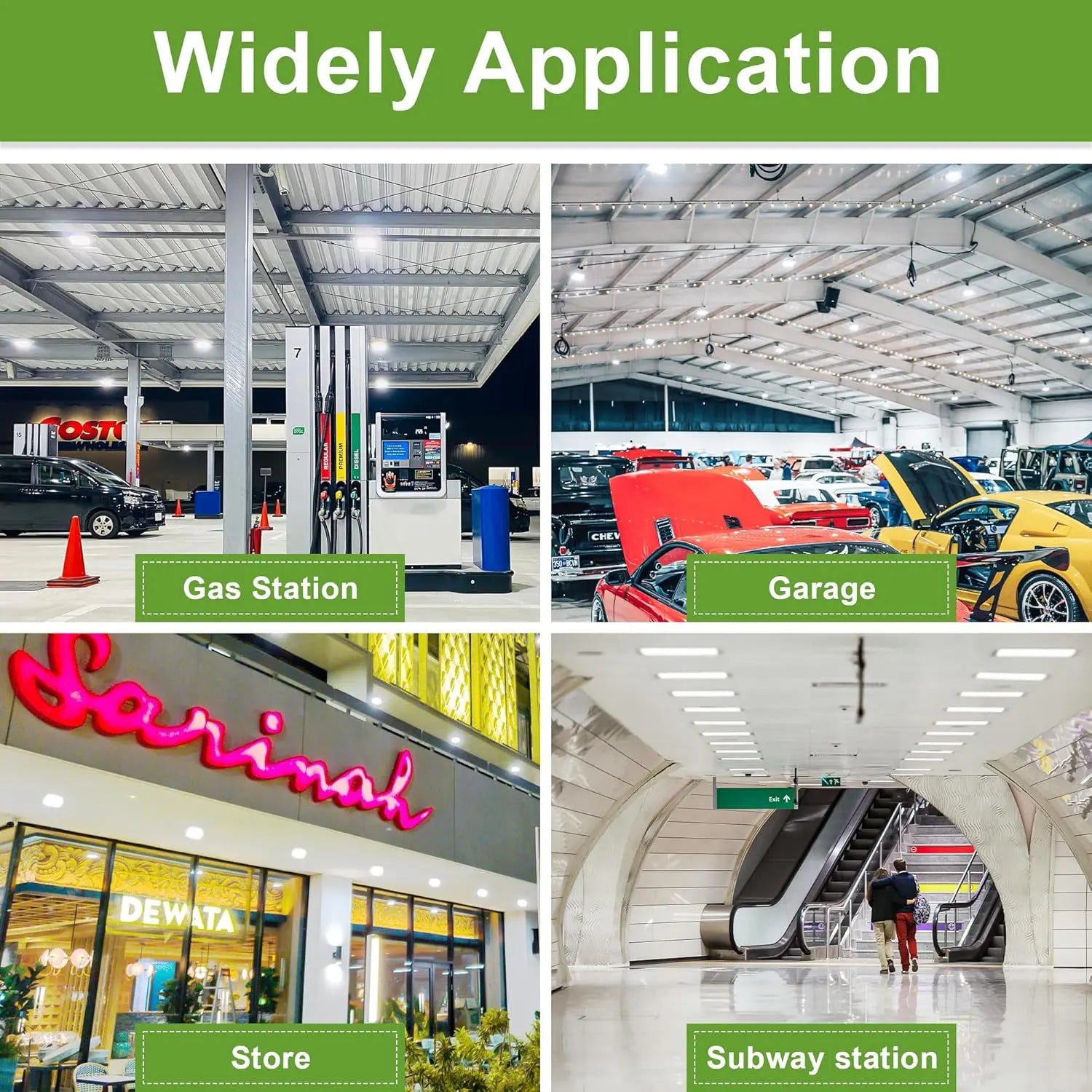

Ideal for Commercial Applications
- Parking garages
- Gas stations and service stations
- Carports and drive-throughs
- Building entryways and walkways
- Underpasses and tunnels
- Commercial ceiling lighting
- Industrial and facility lighting

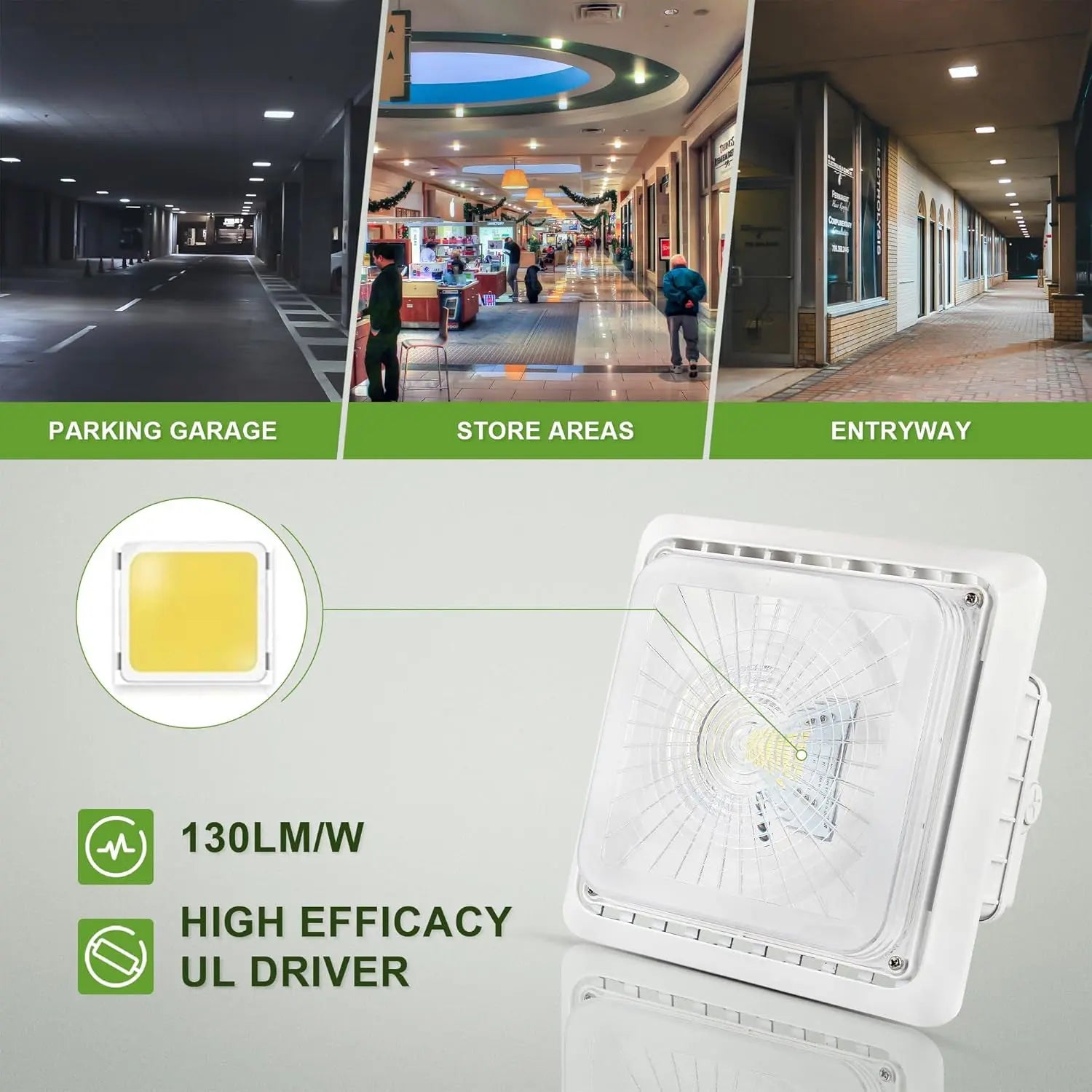

Uniform & Efficient Lighting
This LED parking garage canopy light provides bright, even illumination to help reduce shadows and improve visibility in covered spaces. It is a practical upgrade from traditional metal halide lighting, offering instant-on performance and lower maintenance needs.
- Up to 7,425 lumens
- 135 lm/W efficiency
- Replaces up to 150W metal halide
- Instant-on LED performance
- Energy-efficient commercial lighting solution
Key Features
- Wattage Selectable: 30W / 40W / 55W
- CCT Selectable: 3000K / 4000K / 5000K
- High Output: Up to 7,425 lumens
- Efficiency: 135 lm/W
- Voltage: AC 100-277V
- Dimming: 0-10V dimmable
- Mounting: Surface mount / pendant mount
- Housing Size: 9.5” x 9.5”
- Replacement: Up to 150W metal halide equivalent
- Warranty: 5 years
Easy Installation
Designed for flexible installation, this canopy fixture supports both surface mounting and pendant mounting. Its compact square housing makes it a practical choice for parking garages, commercial entrances, service stations, and covered ceiling spaces.
- Surface mount installation
- Pendant mount installation
- Compact design for tight ceiling areas
- Suitable for retrofit and new installation projects
Specifications
| Type | LED Parking Garage Canopy Light |
| Wattage | 30W / 40W / 55W Selectable |
| Lumen Output | Up to 7,425 Lumens |
| Efficiency | 135 lm/W |
| Voltage | AC 100-277V |
| CCT | 3000K / 4000K / 5000K Selectable |
| Dimming | 0-10V Dimmable |

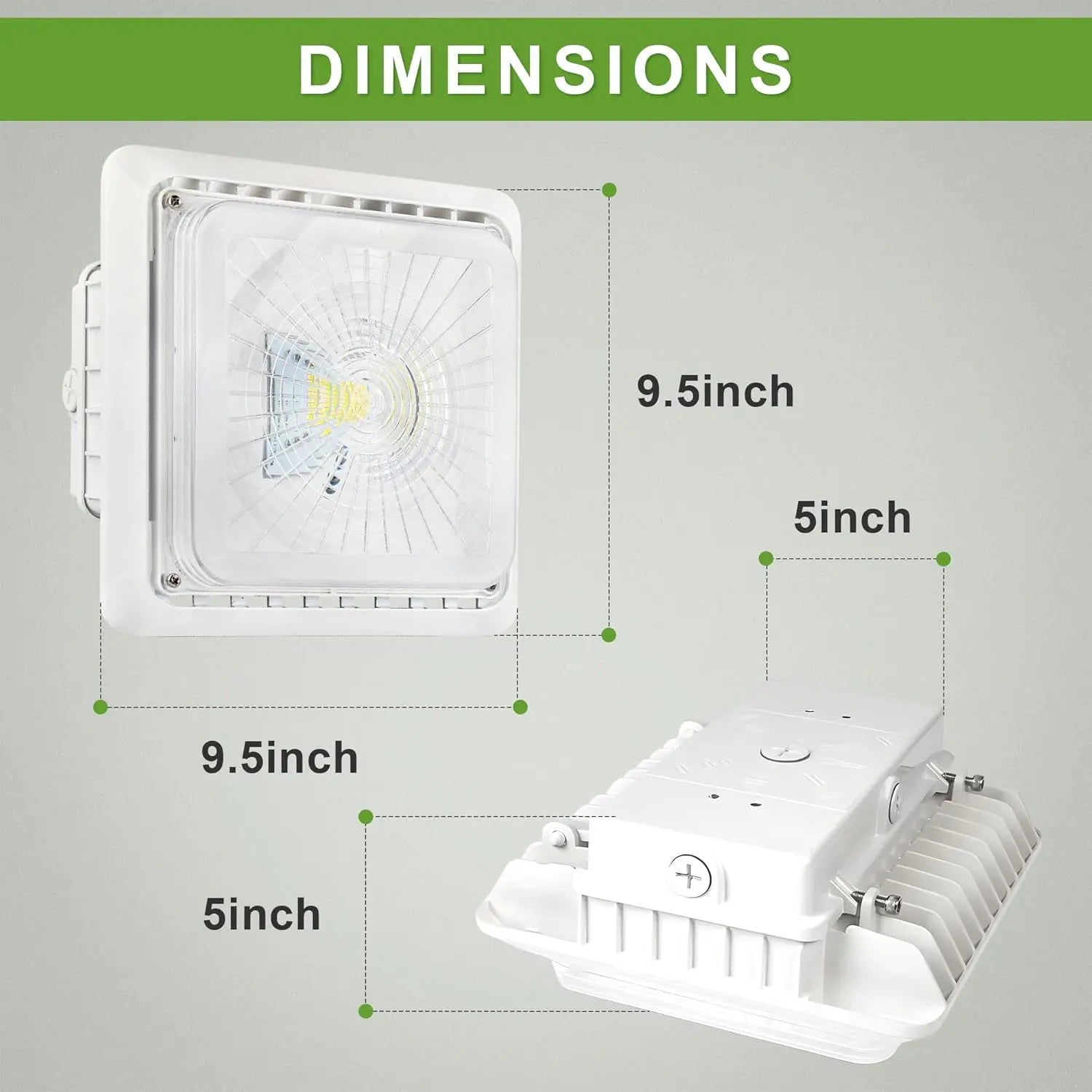

| Housing Size | 9.5” x 9.5” |
| Mounting | Surface Mount / Pendant Mount |
| Equivalent Replacement | Up to 150W Metal Halide |
| Warranty | 5 Years |
Need Commercial Canopy Lighting?
Contact TANLITE for bulk orders, contractor pricing, and commercial lighting project support. We support parking garage, gas station, canopy, and covered-area lighting projects.
