Pallet of 144 PCS, 2×2 FT Backlit LED Panel Light, Wattage & 5CCT Selectable

TANLITESKU: TL-PL22-M40W-CCT-VL-144
No reviews
Package Quantity: Pallet of 144 PCS
Price:
$3,780.00
Stock:
Only 10 units left

Same Day Shipping: if placed before 3:00 PM

Free shipping for all lights on our website. Feel free to contact us if you have any questions

  • Email: sales@tanlite.com
  • Phone/Text: (510) 556 0948

Description

PALLET OF 144 PCS  |  2×2 FT BACKLIT LED PANEL  |  5 WATTAGES & 5CCT

2×2 FT Backlit LED Panel Light — Pallet of 144 PCS

A project-ready commercial ceiling-lighting solution with selectable wattage, selectable color temperature, 0–10V dimming and up to 5,200 lumens per fixture.

Flexible Output for Commercial Projects

20W–40W Selectable
20W / 25W / 30W / 35W / 40W
5CCT Selectable
3000K / 3500K / 4000K / 5000K / 6500K
Up to 5,200 Lumens
130 lm/W luminous efficacy
144 Fixtures
Full-pallet project quantity

Backlit Optical Design

High-brightness LED chips with optical lenses provide broad, uniform illumination. The high-transmittance polycarbonate cover is designed to resist yellowing, while the white aluminum housing supports effective heat dissipation.

Selectable Wattage & Lumen Output

Wattage Lumens Efficiency
20W 2,600 lm 130 lm/W
25W 3,250 lm 130 lm/W
30W 3,900 lm 130 lm/W
35W 4,550 lm 130 lm/W
40W 5,200 lm 130 lm/W

Product Specifications

Model LS-PL22-M40W-CCT-VL
Package Quantity Pallet of 144 PCS

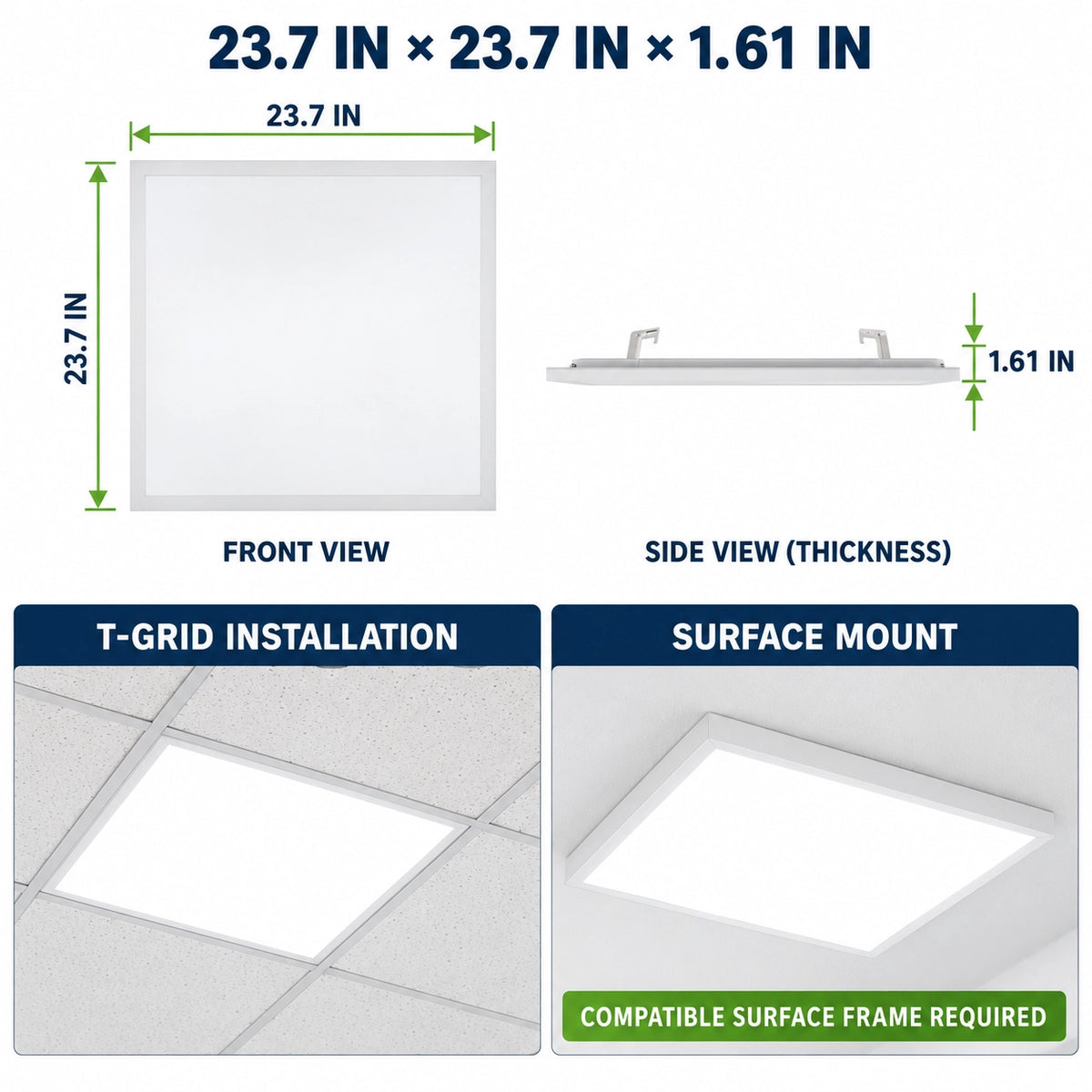

Fixture Size 23.7" × 23.7" × 1.61"
Selectable Wattage 20W / 25W / 30W / 35W / 40W
Selectable CCT 3000K / 3500K / 4000K / 5000K / 6500K
Input Voltage 120–277VAC
Dimming 0–10V Dimmable
Beam Angle 110°
CRI >80
Operating Temperature -25°C to 45°C
Rated Life 50,000 hours
Certifications ETL / cETL / DLC
Warranty 5-year limited warranty

Installation & Applications

Designed for standard T-grid suspended ceilings with a built-in junction box. Surface installation is also supported when used with a compatible frame. Ideal for offices, conference rooms, schools, healthcare facilities, restaurants, retail stores and other commercial interiors.

Freight note: This listing contains 144 fixtures shipped as one pallet. Please confirm that the delivery address can receive palletized freight.

Project-Ready Pallet Quantity

144 configurable 2×2 LED panels for commercial ceiling-lighting projects.
