Description

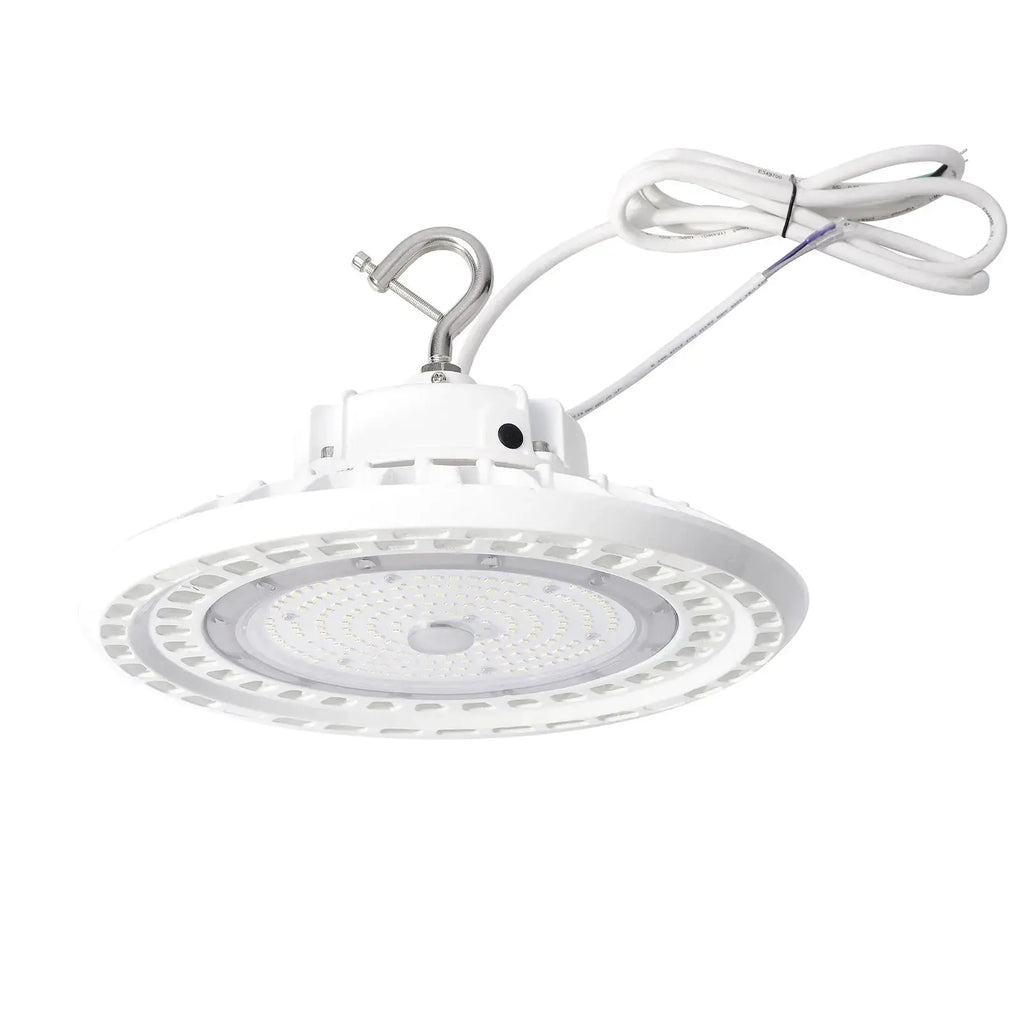

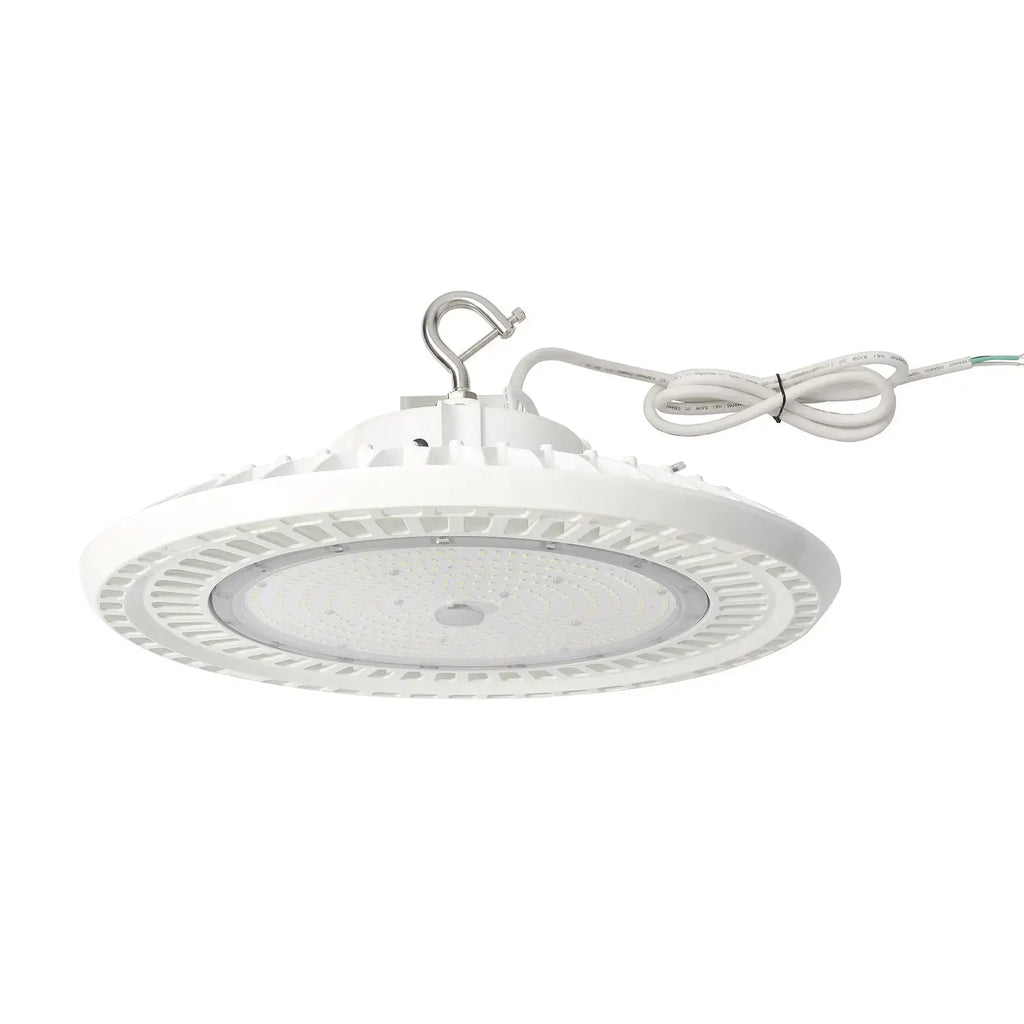

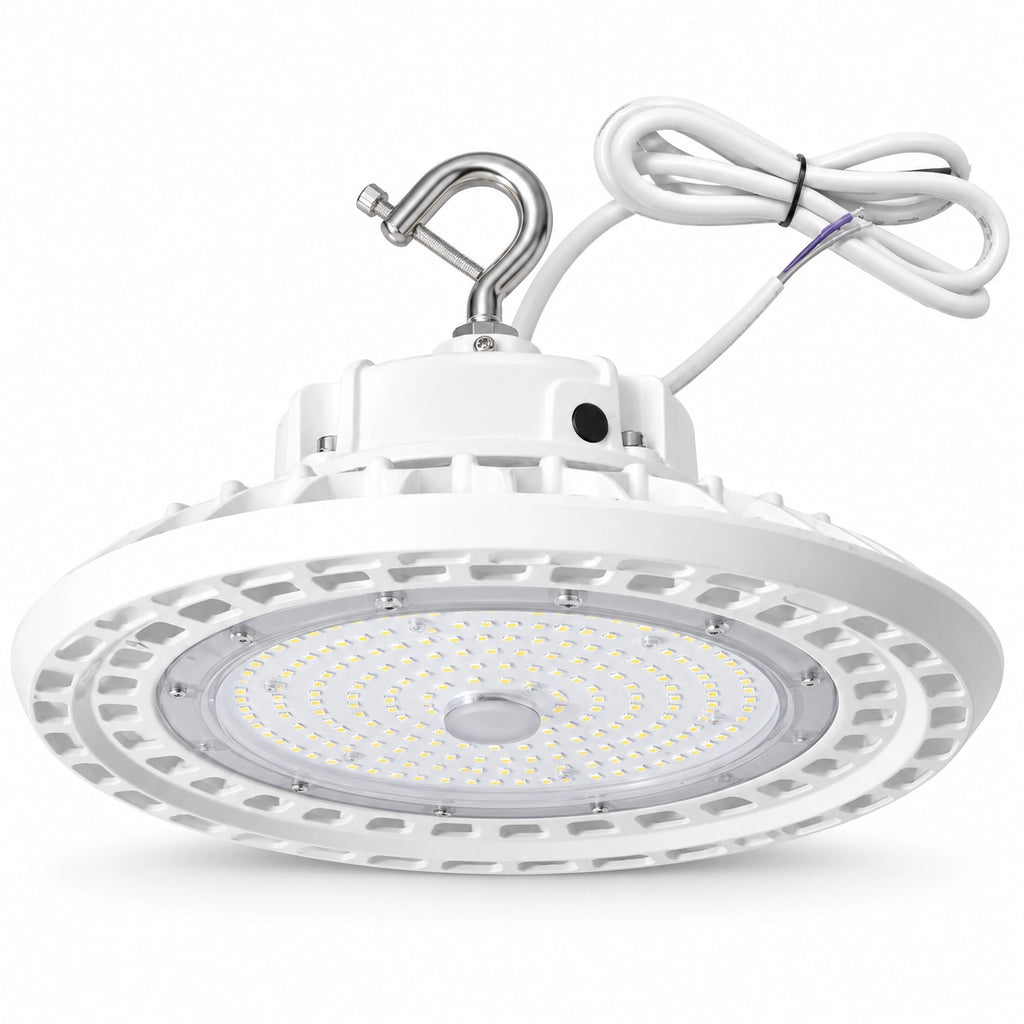

White Selectable LED UFO High Bay for Commercial Spaces
Adapt one fixture to different ceiling heights and lighting requirements. This white V5 UFO High Bay offers 100W / 150W / 170W selectable power, 4000K / 5000K / 5700K selectable color temperature, up to 27,200 lumens, and standard 0-10V dimming.
Selectable Wattage
Selectable CCT
High Output
High Efficiency
Key Features
- Field-selectable output: choose 100W, 150W, or 170W before final installation.

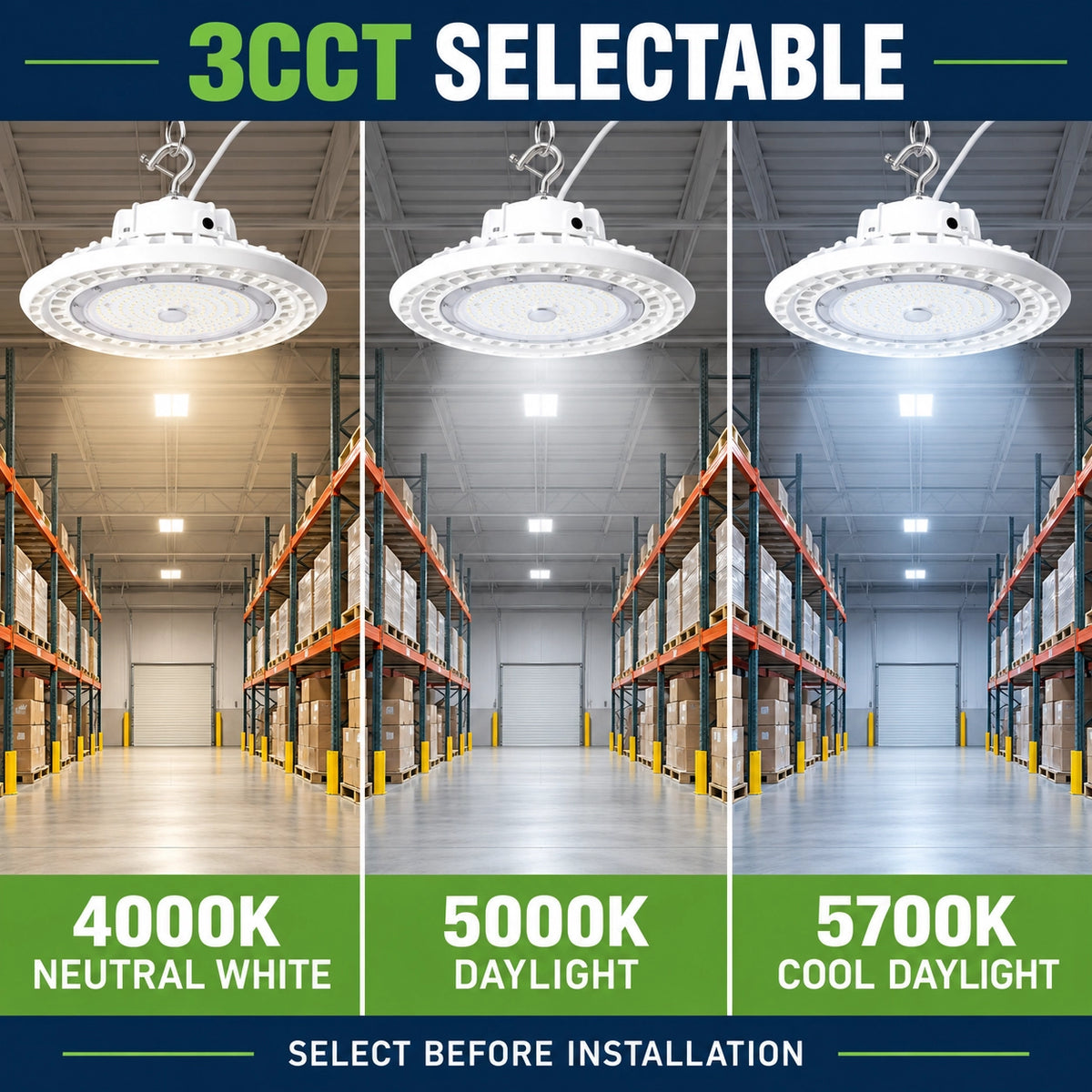

- 3CCT selectable: choose 4000K neutral white, 5000K daylight, or 5700K cool daylight.
- High-efficiency illumination: delivers 160 lm/W and up to 27,200 lumens.
- 0-10V dimmable: supports compatible commercial dimming controls.

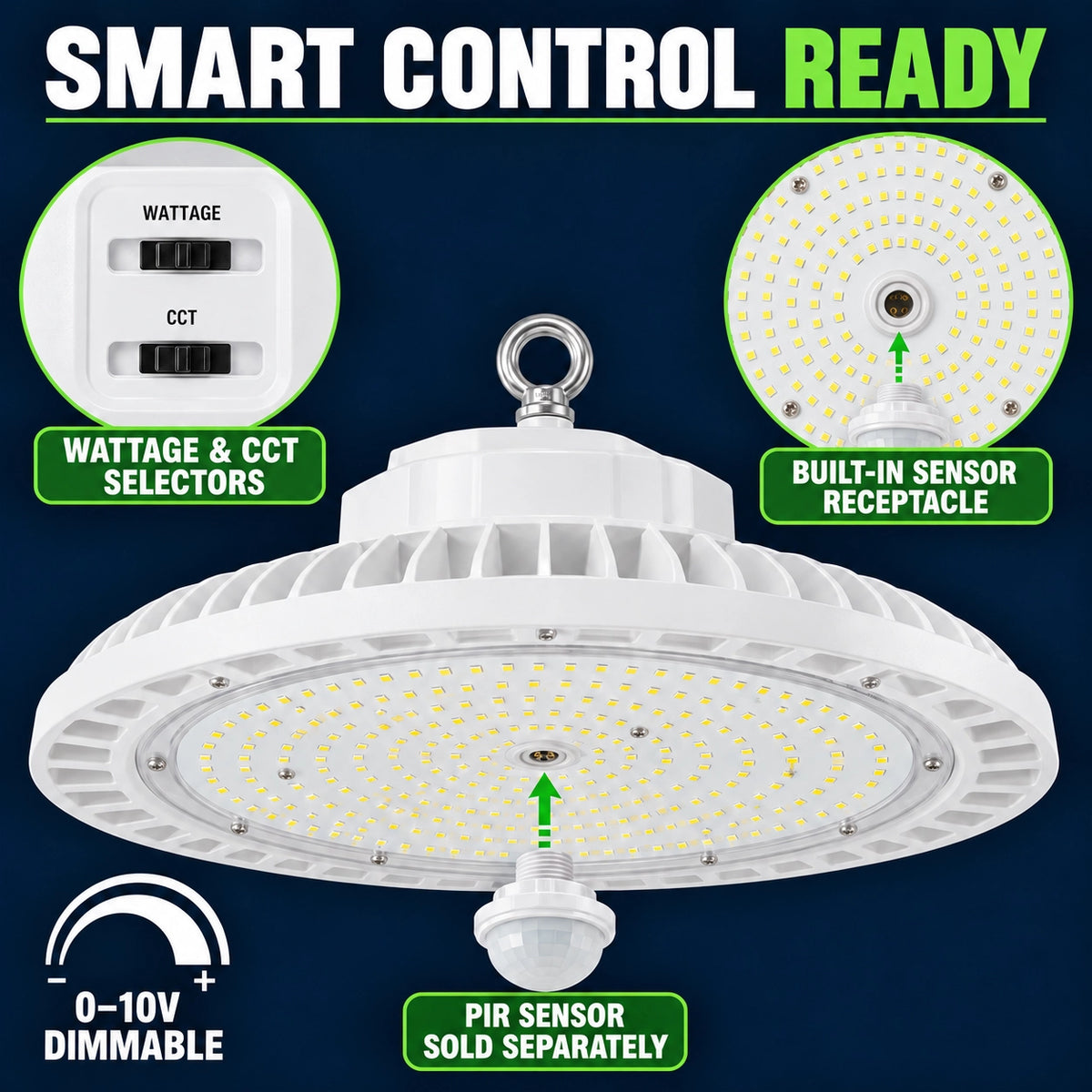

- Built-in sensor receptacle: accepts an optional compatible PIR occupancy sensor; sensor sold separately.

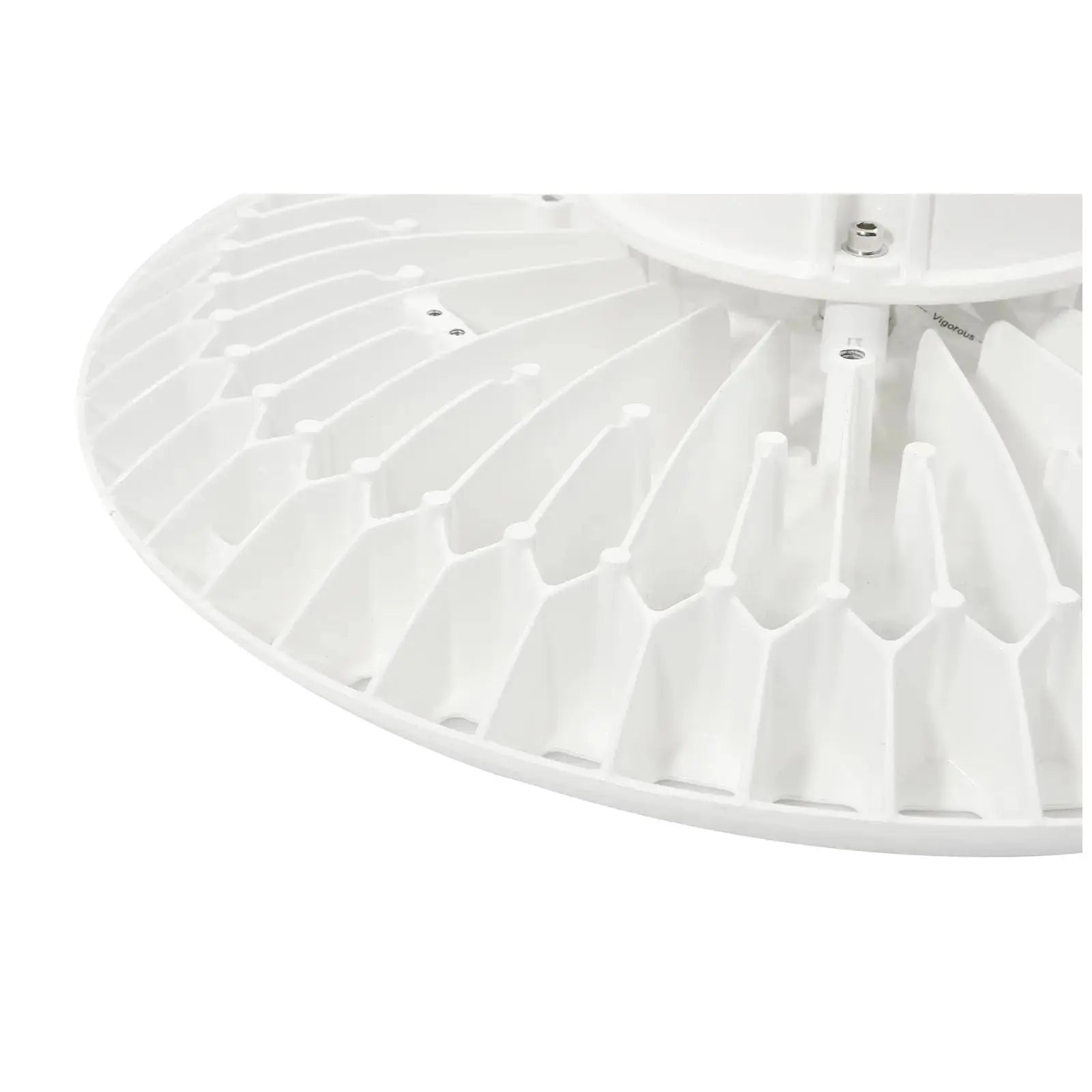

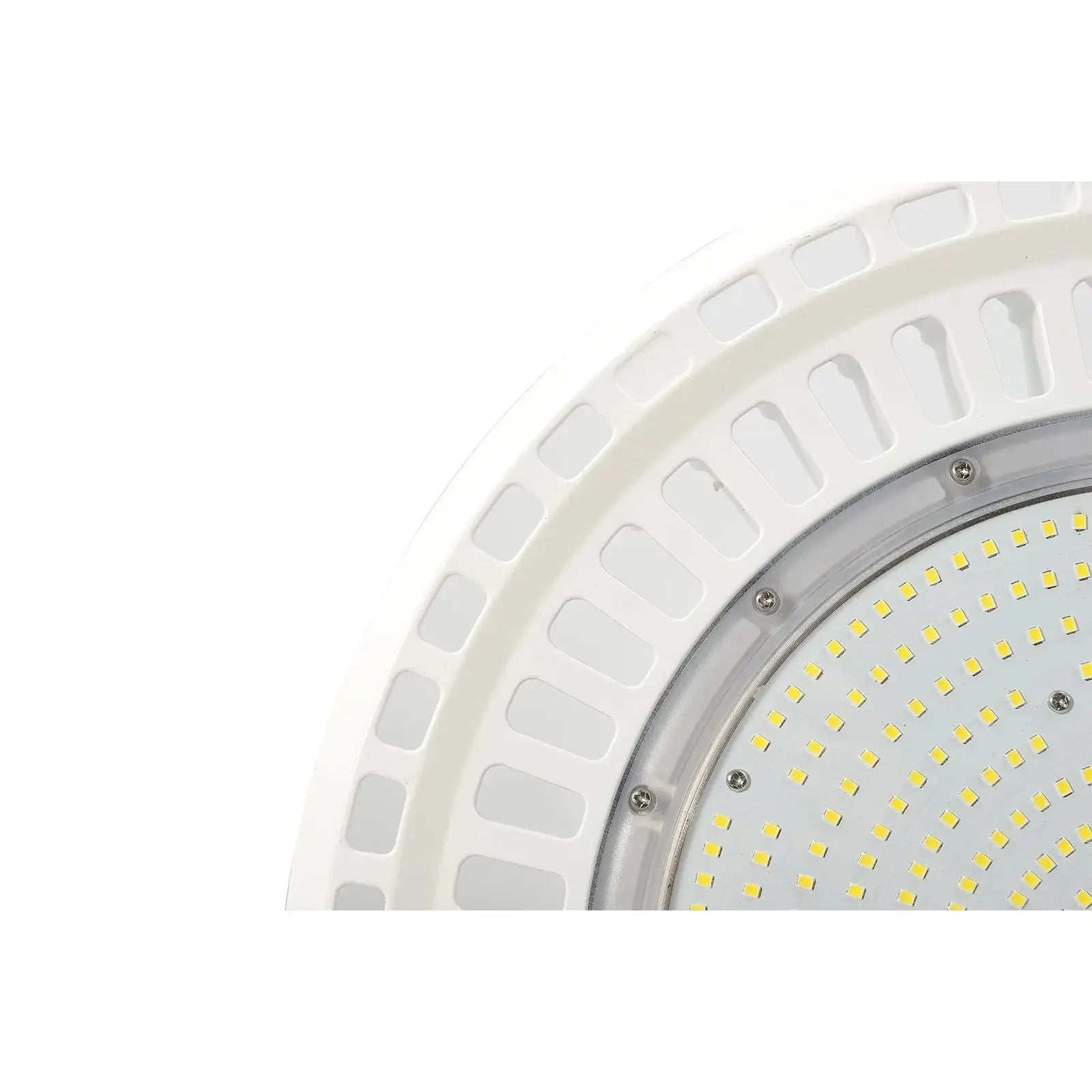

- White die-cast aluminum housing: heavy-duty, corrosion-resistant construction for commercial environments.
- 5 ft power cable: supports practical installation in warehouses and large indoor spaces.

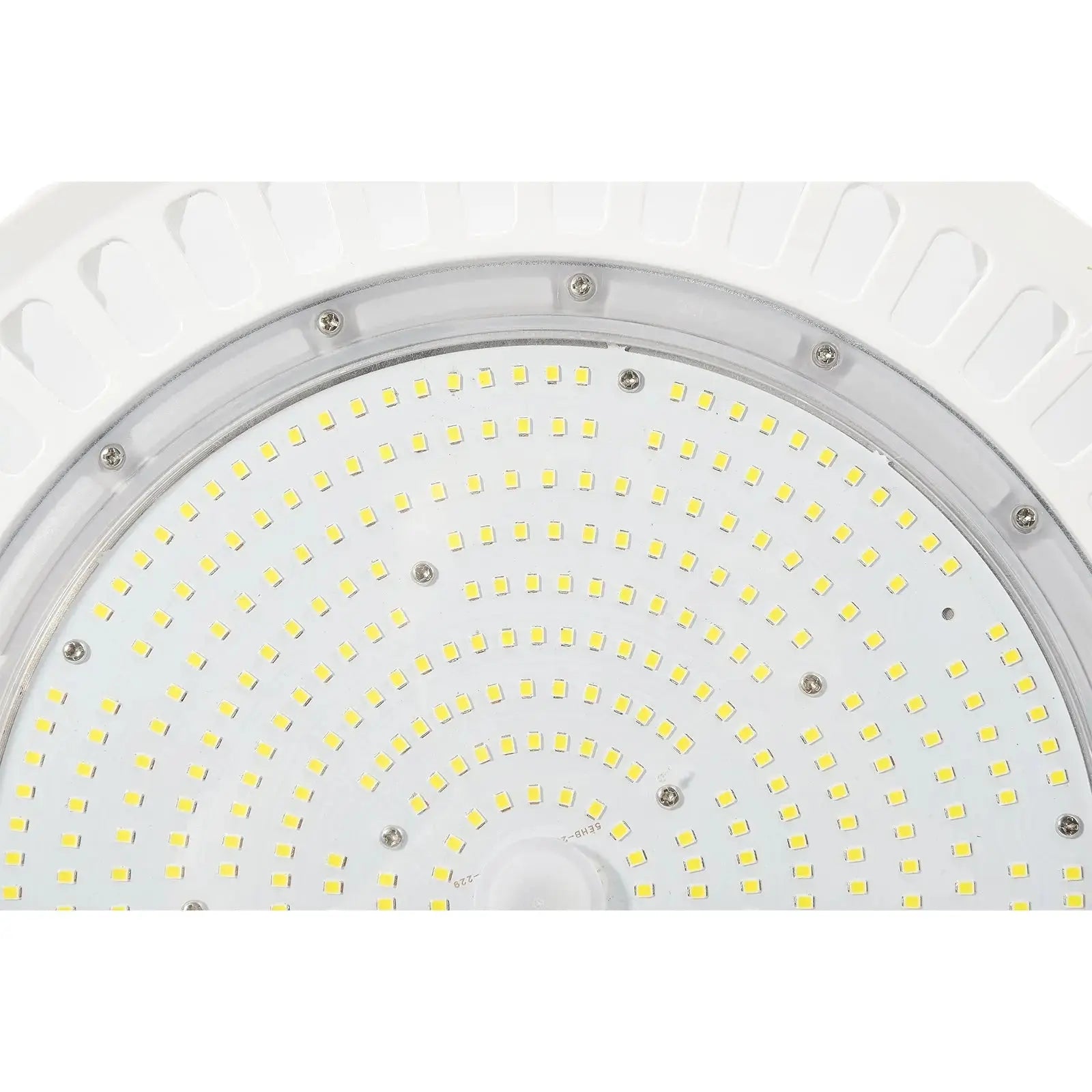

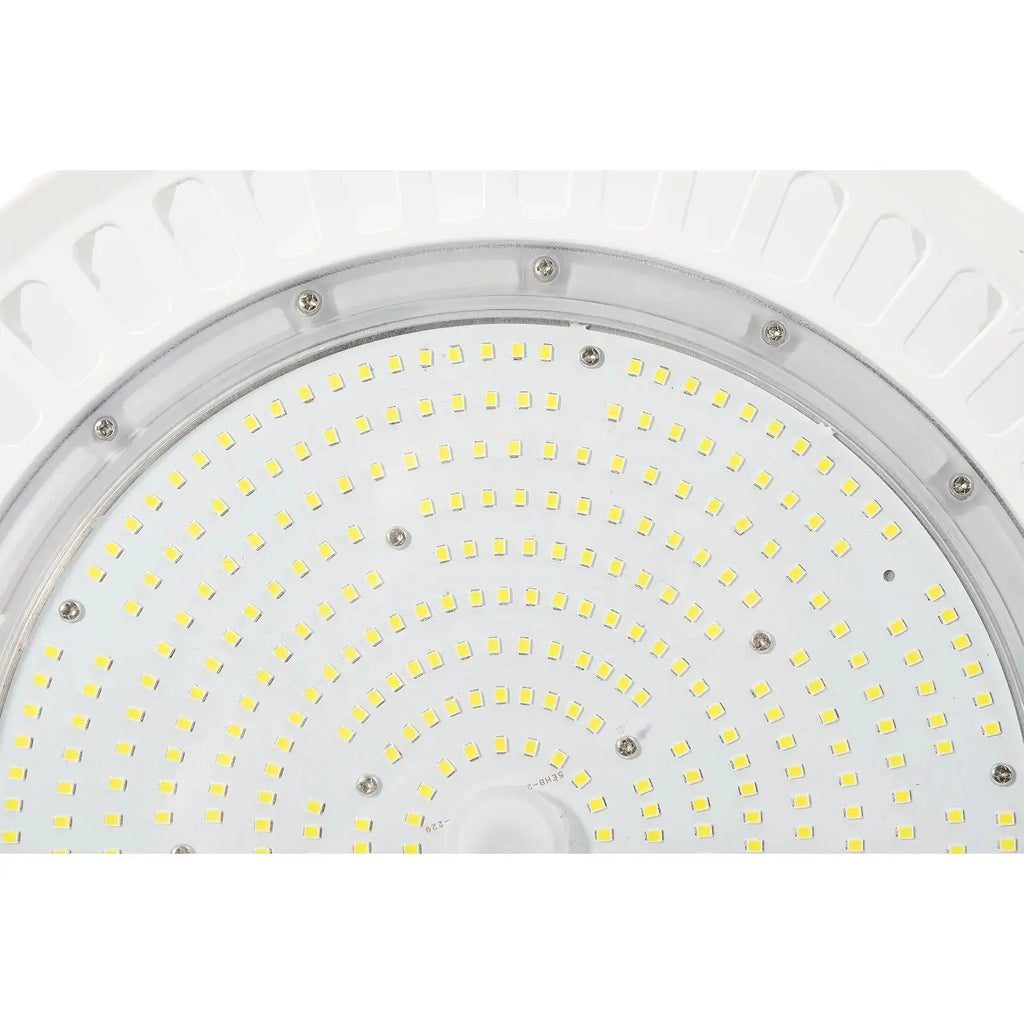

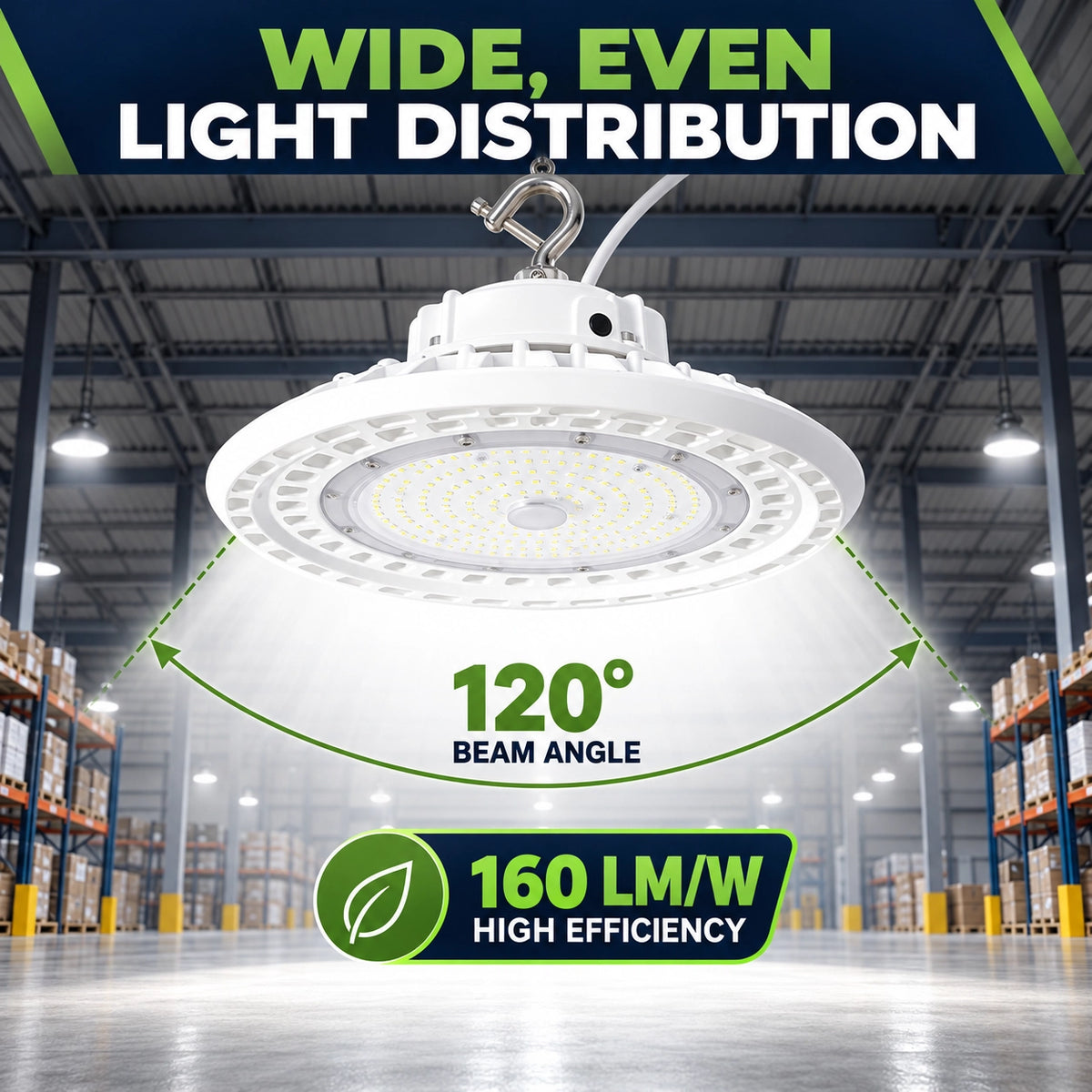

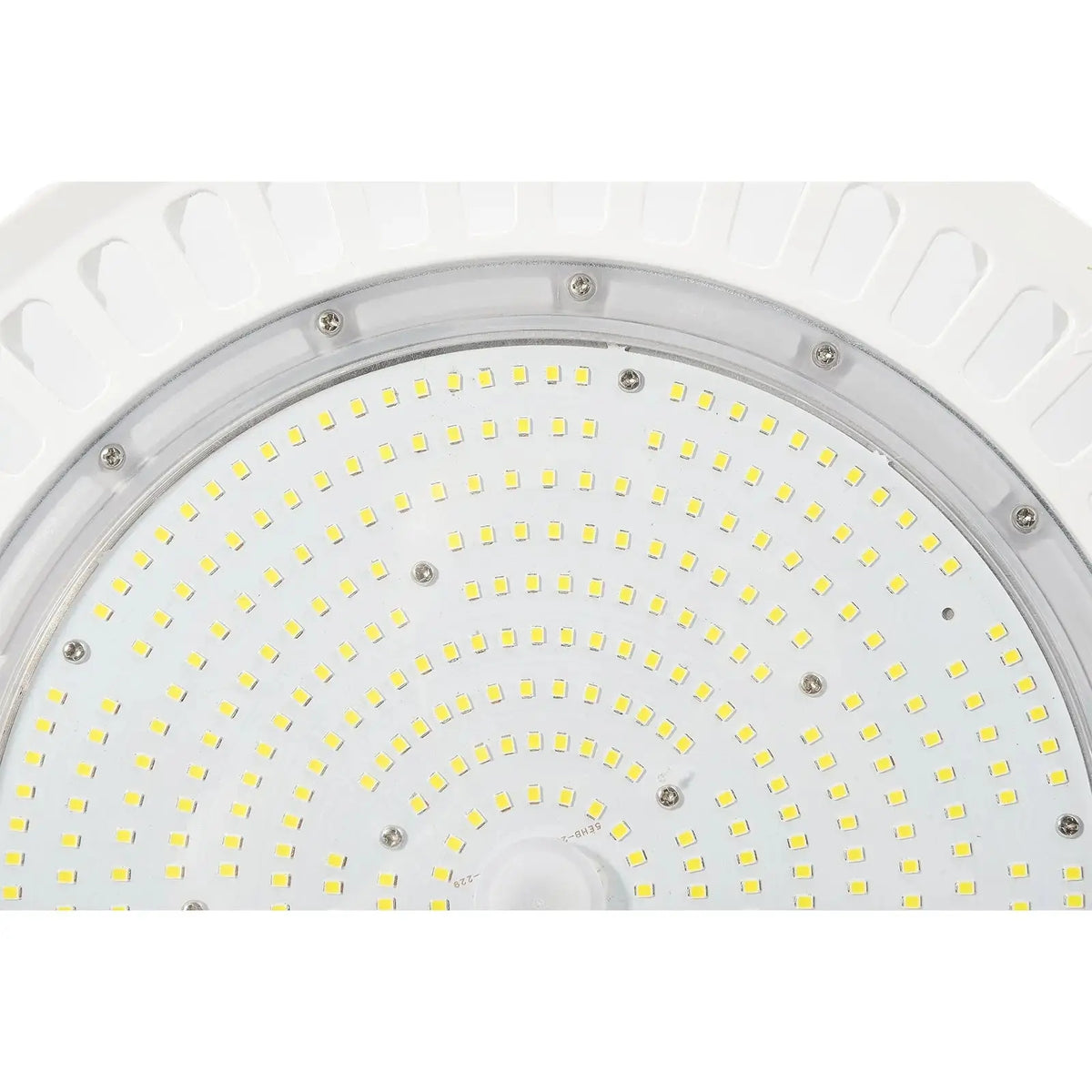

- Wide light distribution: high-transparency PC lens with nominal 120° beam angle.
- Certified for commercial use: ETL, cETL, and DLC listed.
- 5-year limited warranty.

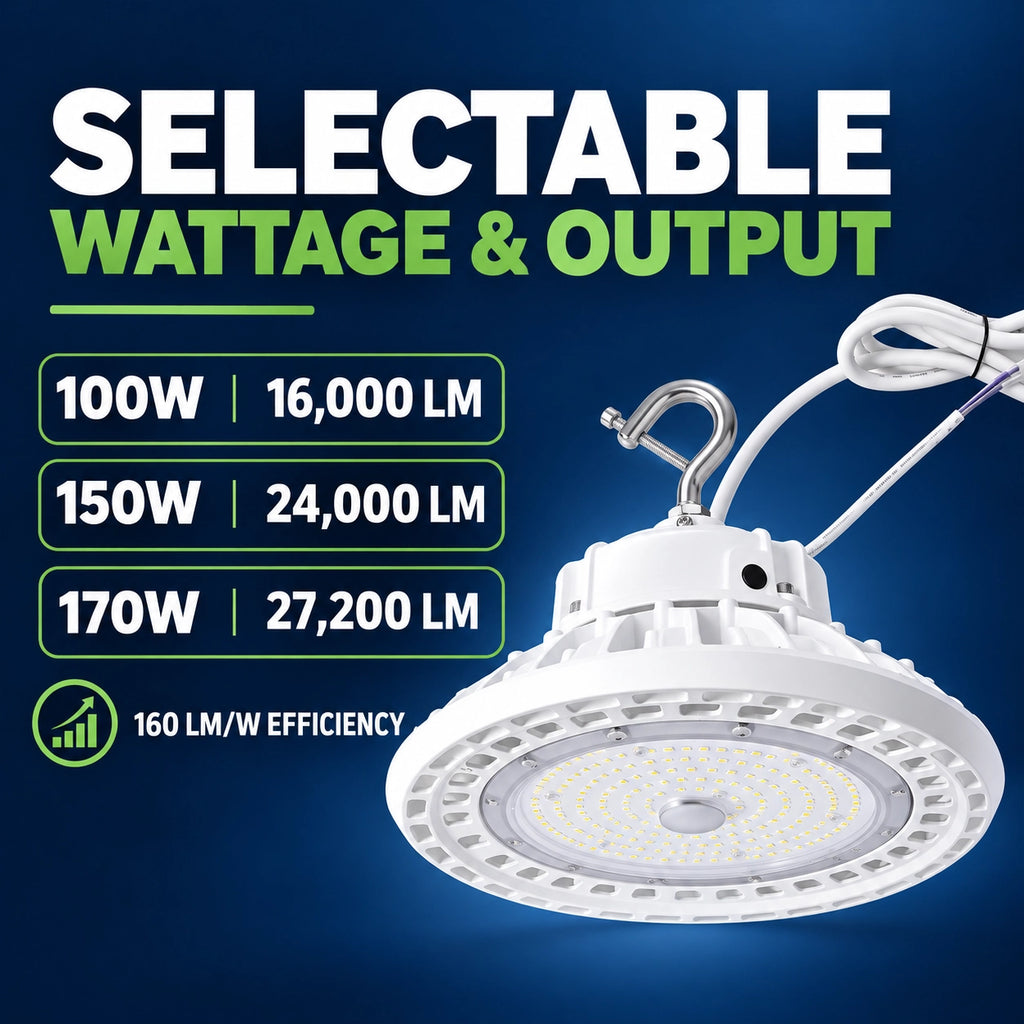

Selectable Wattage & Lumen Output
| Wattage | Light Output | Efficiency | Input Current |
|---|---|---|---|
| 100W | 16,000 lm | 160 lm/W | 0.83A @120V / 0.36A @277V |
| 150W | 24,000 lm | 160 lm/W | 1.25A @120V / 0.54A @277V |
| 170W | 27,200 lm | 160 lm/W | 1.41A @120V / 0.61A @277V |
Product Specifications
| Model | LS-5EHB(170/150/100)W-57/50/40K |
| Wattage | 100W / 150W / 170W selectable |
| Color Temperature | 4000K / 5000K / 5700K selectable |
| Input Voltage | 120-277VAC |
| Power Factor | >0.9 |
| CRI | >72 |
| Dimming | 0-10V dimmable |
| Beam Angle | 120° nominal |
| Housing | White die-cast aluminum alloy |

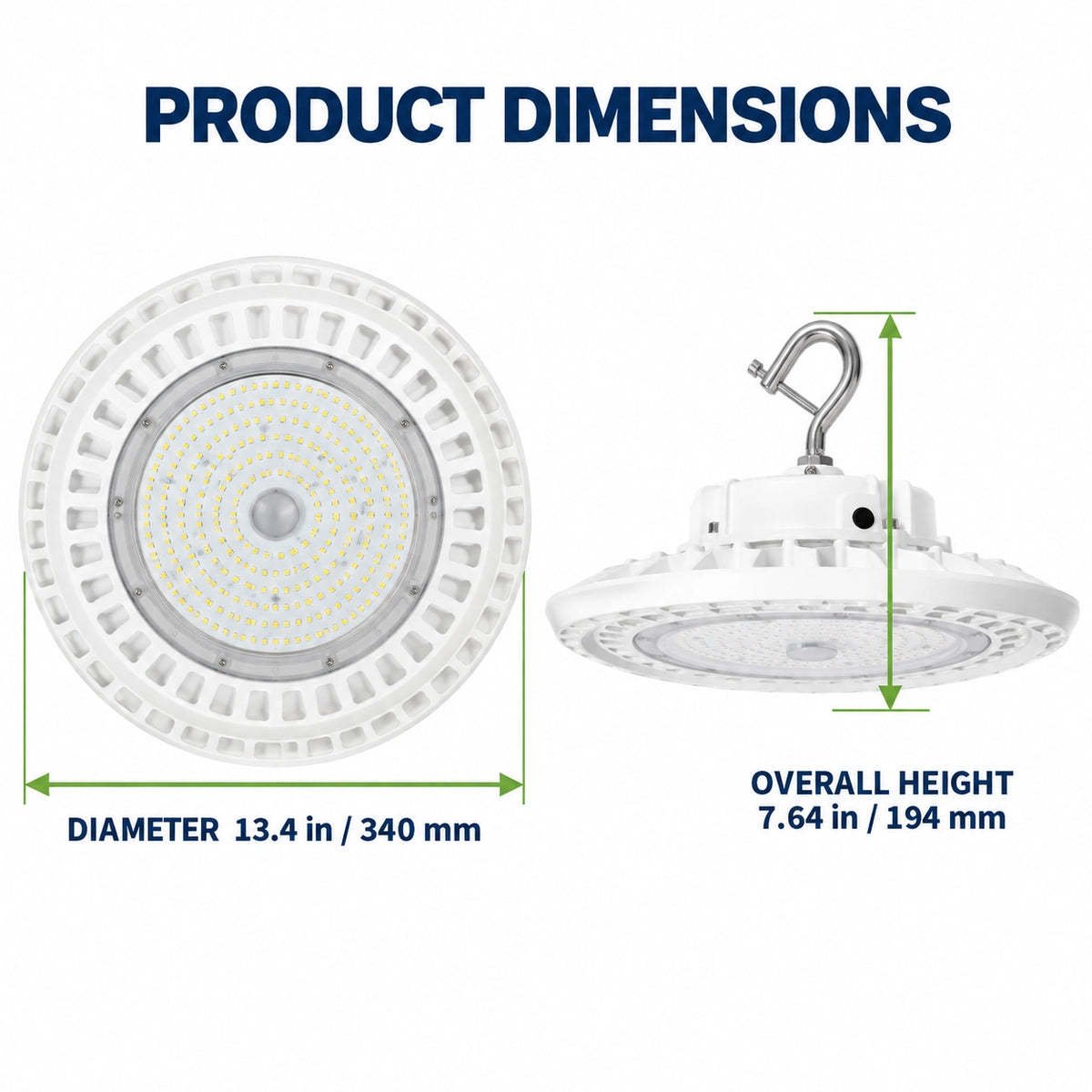

| Fixture Size | 13.4" diameter × 7.64" height |
| Operating Temperature | -36°C to 60°C |
| Certifications | ETL / cETL / DLC |
| Warranty | 5-year limited warranty |
Mounting & Controls

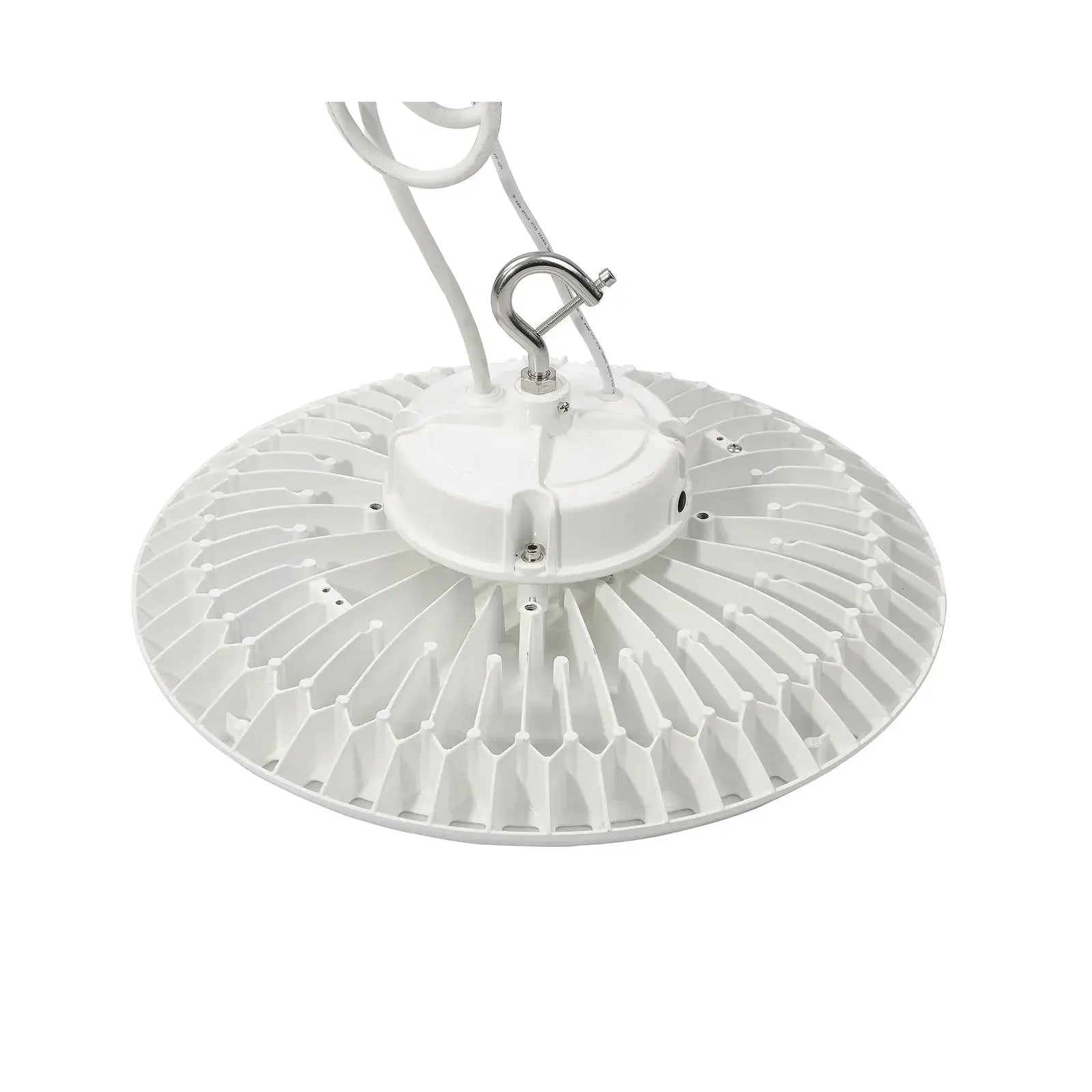

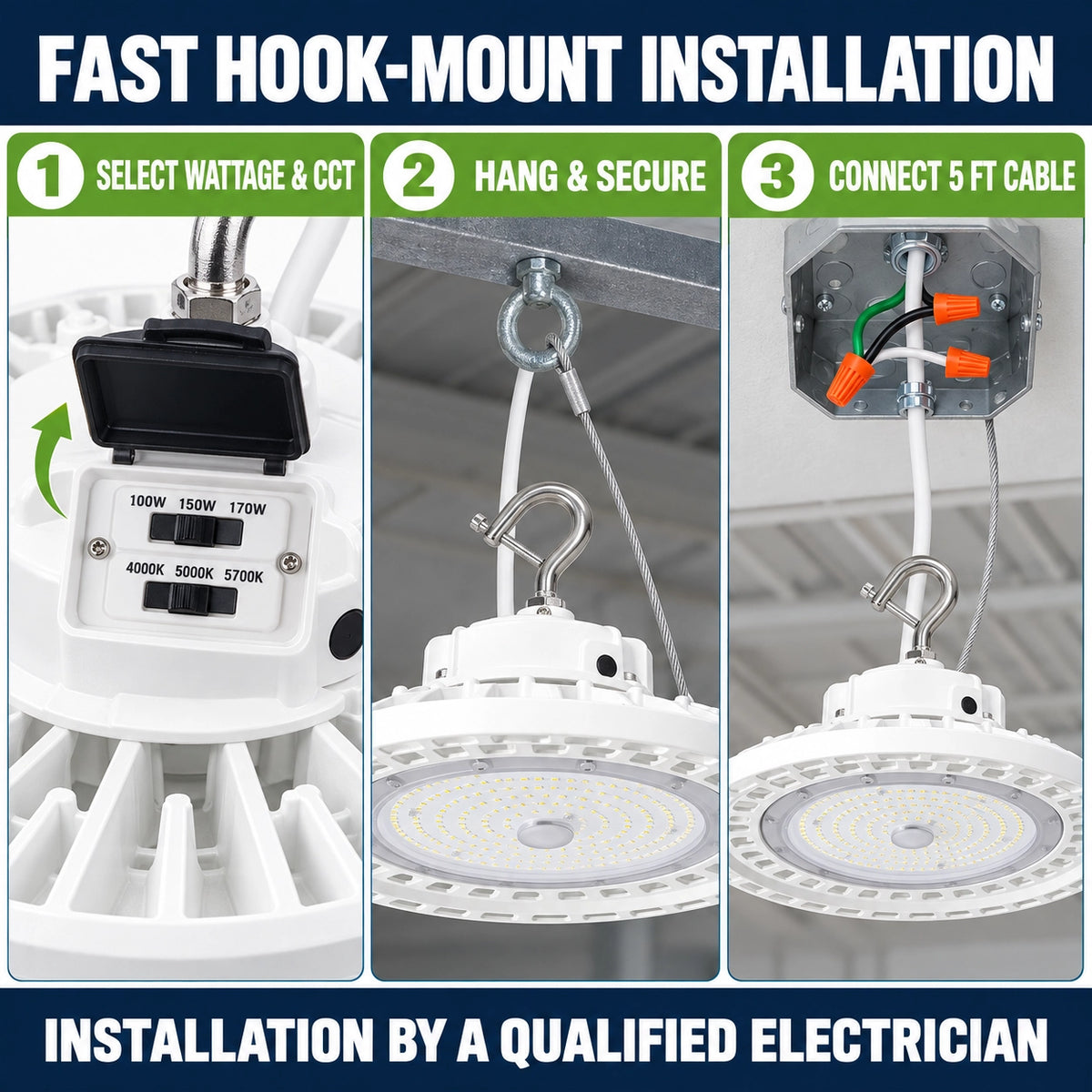

Standard installation: suspended hook mount. The fixture also supports compatible ceiling-bracket and 1/2" NPT mounting configurations when the appropriate accessories are used. Wattage and CCT are selected using the switches beneath the waterproof driver-box cover before final installation. Factory default setting: 150W / 5000K.
Optional accessories: PIR occupancy sensor, emergency battery backup, PC or aluminum reflector, safety cord, and alternate mounting hardware. Optional accessories are not included unless specifically selected or stated.
Recommended Applications

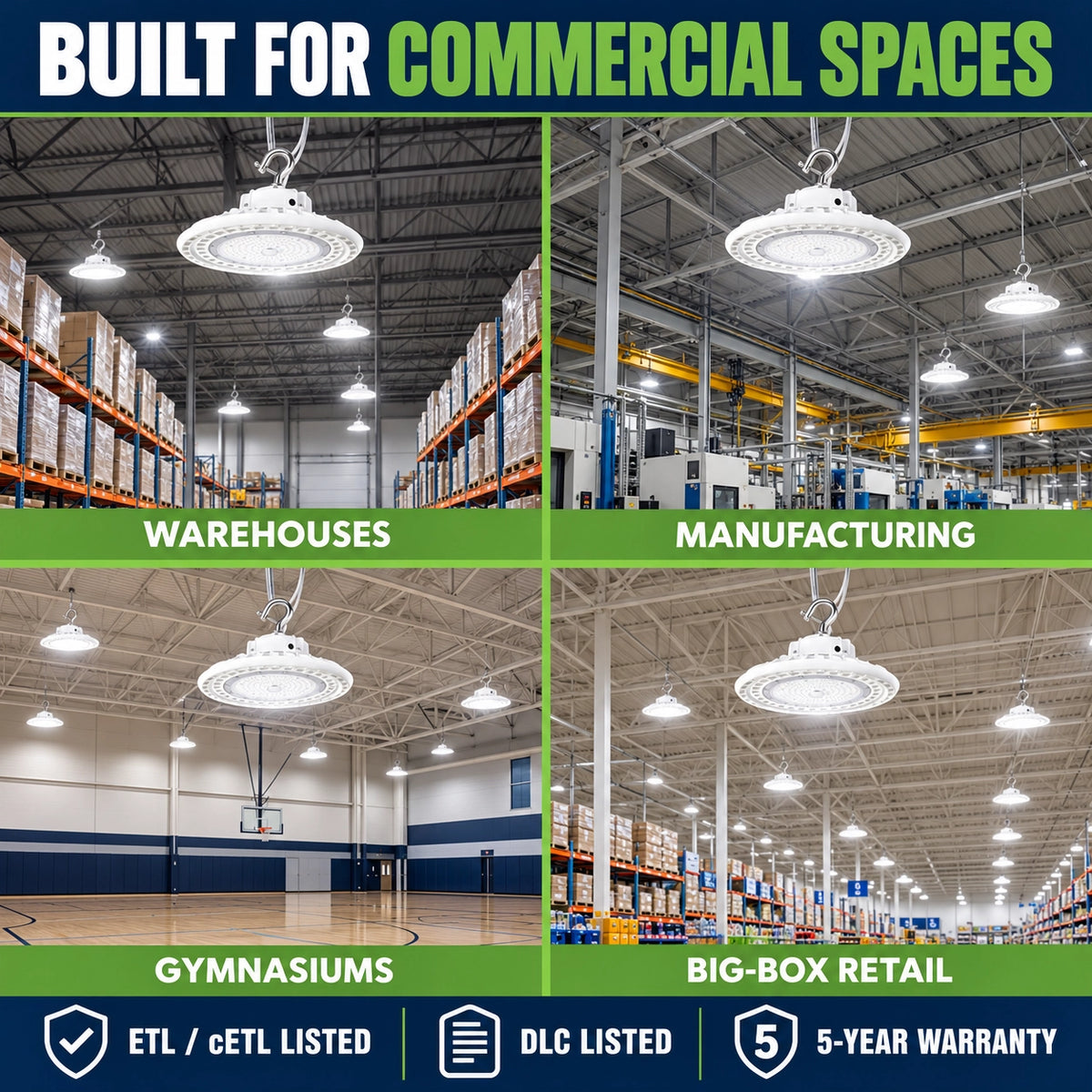

Designed for warehouses, manufacturing facilities, convention centers, indoor sporting areas, big-box retail stores, cold-storage facilities, gymnasiums, workshops, and other high-ceiling commercial spaces.
